Viking E-30-IP-EWP Handsfree VoIP Entry Phone EWP SIP PoE

Viking Electronics E-30-IP-EWP Handsfree VoIP Entry Phone with Enhanced Weather Protection

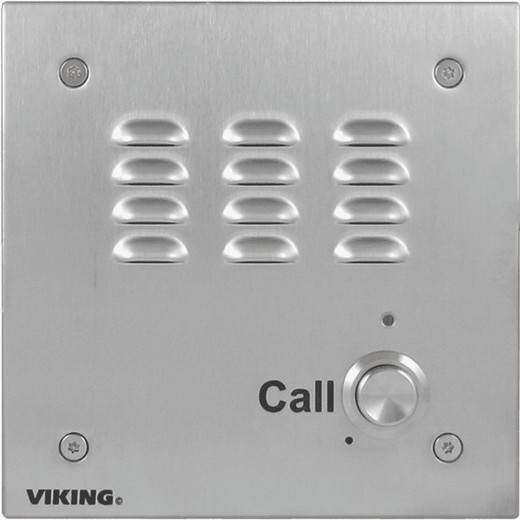

The Viking Electronics E-30-IP-EWP is a flush-mount, vandal-resistant VoIP entry phone built for outdoor and harsh-environment installations where a standard SIP handset isn't viable. Constructed from 14-gauge louvered stainless steel and rated for operation from -40°F to 140°F, the E-30-IP-EWP pairs SIP 2.0 compliance with PoE Class 1 power draw, making it a straightforward drop-in for any Viking Electronics IP intercom deployment or third-party SIP phone system without a dedicated power run.

Overview

Where the standard E-30-IP stops, the EWP variant adds foam rubber gaskets, protective boots, urethane or thermal plastic potted circuitry, and gel-filled butt connectors — the full sealed treatment for installations exposed to precipitation, condensation, or high-humidity environments. Humidity tolerance climbs from 95% (non-condensing, standard) to 100% with EWP, which matters at covered parking entrances, loading docks, and cold-storage vestibules where condensation is a daily reality. The unit installs flush with the included rough-in box into a standard 4″ × 4″ wall opening, or surface-mounts using the optional VE-5x5 bracket — giving you mounting flexibility without sourcing custom hardware.

Key Features

• 14-Gauge Louvered Stainless Steel Housing: Resists opportunistic vandalism and physical tampering. The louvered grille protects the speaker without sacrificing audio projection to 90 dB SPL at 1 meter — loud enough to be heard in a busy commercial intercom entry or covered outdoor area without cranking an amplifier.
• Enhanced Weather Protection (EWP): Foam gaskets, sealed boots, and gel-filled RJ45 butt connectors prevent moisture ingress at every penetration point. Humidity tolerance at 100% means this unit handles sustained condensation and rain exposure that would compromise a non-EWP installation within months.
• PoE Class 1 Power (<4 Watts): Draws less than 4W from a standard 802.3af switch port — one of the lightest loads you'll find on a PoE device. In a multi-door deployment with a budget PoE switch, the E-30-IP-EWP won't eat into port power budgets the way cameras or door controllers do. No separate power supply, no conduit for AC.
• SIP 2.0 / RFC 3261 Compliance: Registers on any standards-compliant SIP server or hosted PBX. Integrates directly with Cisco, Avaya, Asterisk, FreePBX, and similar platforms without a proprietary gateway. If your facility already runs a SIP phone system, this device extends coverage to the door without a separate intercom controller.
• G.711u / G.711a / G.722 Audio Codecs: G.722 wideband (HD voice) is supported where your SIP server negotiates it — a meaningful upgrade in clarity over legacy G.711 for installations where audio intelligibility is critical (high-security lobbies, ADA-accessible entry points). G.711 fallback ensures compatibility with older PBX infrastructure.
• Dual Relay Contacts (2A): Onboard relay outputs support electric strike, magnetic lock, or gate controller integration, keeping door release logic local to the entry phone rather than requiring a separate access control module at every door. Verify load ratings against your specific strike hardware before wiring.
• -40°F to 140°F Operating Range: Handles Minnesota winters and Arizona summers without heater kits or shading enclosures. The 140°F ceiling is significant for direct-sun south-facing installations where surface temperatures in enclosures routinely exceed ambient air temperature.
• 100BASE-Tx Ethernet / RJ45 Connection: Standard Fast Ethernet — no special cabling required. Existing Cat5e or Cat6 infrastructure works as-is. The included gel-filled butt connectors seal field splices against moisture wicking, which is a common failure point on outdoor low-voltage runs.
• FCC Part 15 / CE / Canada ICES-3 Class A: Regulatory clearances for US, Canadian, and European deployments. No additional compliance engineering needed for North American or EU installations.

Integration & Compatibility

The E-30-IP-EWP integrates with any SIP 2.0-compliant phone system via standard RJ45 10/100 Ethernet and draws power from any 802.3af PoE switch or injector. The dual relay contacts enable direct wiring to electric strikes or magnetic locks — pair with a PoE network switch and your existing SIP server for a complete entry control solution without proprietary controllers. For multi-door facilities, the lightweight PoE Class 1 draw lets you allocate more switch capacity to higher-draw devices like PTZ cameras or door access controllers on the same infrastructure. Surface mounting requires the optional VE-5x5 adapter (sold separately); the rough-in box for flush installation is included.

Frequently Asked Questions

Q: What is the difference between the E-30-IP and the E-30-IP-EWP?

A: The E-30-IP-EWP adds Enhanced Weather Protection (EWP) — foam rubber gaskets, sealed boots, urethane or thermal plastic potted circuitry, and gel-filled butt connectors. This raises humidity tolerance from 95% non-condensing to 100%, making it suitable for installations exposed to direct precipitation or sustained condensation. The standard E-30-IP is intended for sheltered or indoor locations.

Q: Does the E-30-IP-EWP require a separate power supply?

A: No. The E-30-IP-EWP is powered via PoE (IEEE 802.3af, Class 1) and draws less than 4 watts. Any 802.3af-compliant switch port or PoE injector provides sufficient power. No dedicated power run is required.

Q: What SIP platforms is the E-30-IP-EWP compatible with?

A: The E-30-IP-EWP is SIP 2.0 / RFC 3261 compliant and will register with any standards-compliant SIP server including Cisco Call Manager, Avaya, Asterisk, FreePBX, and hosted VoIP platforms. Vendor-specific interoperability testing is recommended for enterprise deployments.

Q: Can the E-30-IP-EWP control a door strike or magnetic lock directly?

A: Yes. The unit includes dual relay contacts rated at 2 amps. These can drive electric strikes, magnetic locks, or gate controllers directly. Confirm your strike or lock hardware is within the 2A relay rating before wiring.

Q: What mounting options are available for the E-30-IP-EWP?

A: Flush mounting uses the included rough-in box (fits a standard 4″ × 4″ wall opening). Surface mounting requires the optional VE-5x5 adapter, sold separately. The unit itself measures 5″ × 5″ × 2.25″.

Q: What audio codecs does the E-30-IP-EWP support?

A: The E-30-IP-EWP supports G.711u (μ-law), G.711a (a-law), and G.722 (wideband/HD voice). G.722 provides noticeably improved voice clarity where your SIP server supports wideband negotiation.

Eden Phillips

The E-30-IP-EWP earns its place in outdoor SIP deployments specifically because of that 100% humidity tolerance from the EWP sealing package — standard IP-rated enclosures routinely fail at covered loading dock entries and cold-storage vestibules where condensation cycles daily, and the gel-filled butt connectors address the wiring penetration point that most installers overlook until they're troubleshooting a dead unit six months post-install.

Technical Highlights:

• PoE Class 1 (<4W): At under 4 watts, this is one of the lowest-draw PoE devices you'll wire. On a 150W budget switch feeding a mix of cameras, readers, and entry phones, E-30-IP-EWP units barely register — you can install a dozen before the power budget becomes a conversation.
• 90 dB SPL @ 1m: That output level cuts through ambient noise at busy loading areas or covered parking entries without an external amp. The louvered stainless grille protects the speaker from direct impact while keeping acoustic projection intact.
• -40°F to 140°F Operating Range: No heater kit, no thermal management enclosure. This range covers unheated outdoor structures in northern climates and direct-sun south-facing walls in hot-weather regions — both scenarios where auxiliary thermal products typically add cost and failure points.

Deployment Considerations:

• Surface mounting requires the VE-5x5 adapter, which is sold separately — confirm you have it on hand before the installation date if you're not going flush. The rough-in box for flush mounting is included, sized for a standard 4″ × 4″ wall box opening.
• The relay contacts are rated at 2 amps. Most small electric strikes fall within that spec, but higher-current magnetic locks (particularly 12V DC models pulling 500mA–1A) should be verified against the relay rating — if you're near the edge, wire a small relay interposer to protect the onboard contacts.

This unit is the right call for cold-storage facility entries, covered outdoor kiosks, and industrial gate stations where you need SIP integration, direct strike control, and genuine weather durability — not just a splash-resistant rating — in a single flush-mount package.
