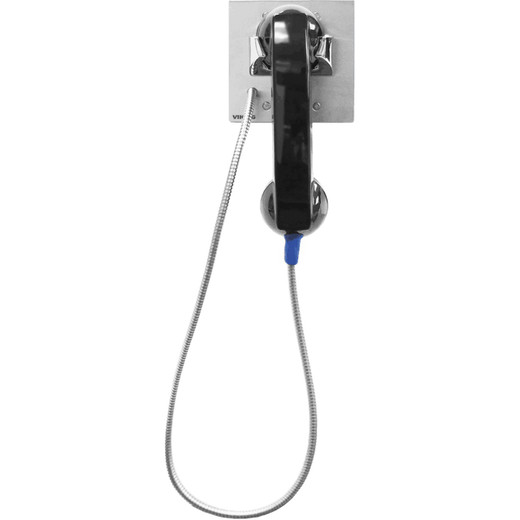

Viking Electronics K-1900-6-IPEWP Compact VoIP Panel Phone with Enhanced Weather Protection
The Viking Electronics K-1900-6-IPEWP is a vandal-resistant, SIP 2.0 VoIP panel phone built for demanding outdoor and industrial installations where ordinary phones simply fail. The EWP (Enhanced Weather Protection) variant pushes humidity tolerance to 100% and achieves an IP66 enclosure rating — making it a credible option for wash-down environments, coastal installations, and covered exterior entry points where the standard model's 95% non-condensing ceiling isn't enough. If you're specifying a hotline-style entry phone for a facility that actually sees weather, this is the model to evaluate.
Overview
The K-1900-6-IPEWP installs on a standard VoIP phone network over a single Cat5e/6 cable. It draws under 4 watts as a PoE Class 1 device — meaning almost any 802.3af-capable switch port can drive it without burning into your power budget. No separate power supply, no conduit for AC, no transformer to fail in a wet wall. Auto-dial programming covers up to 20 digits, so it can reach a security desk, front office, or external number directly on handset lift. Relay control functionality allows integration into access control workflows — a door release, a gate trigger, or an alarm input can be wired alongside the voice path.
The front panel is 14-gauge 316 marine-grade stainless steel, the same alloy used in marine hardware and food processing equipment. That's not a cosmetic choice — 316 SS resists chloride-induced corrosion that destroys 304 SS panels in coastal or high-salt environments. Laser-etched graphics won't peel or fade. The armored handset cable on the EWP variant runs 52 to 57 inches, giving enough slack for comfortable use at a walk-up kiosk or gated entry without creating a tangle.
Key Features
- IP66 Enclosure (EWP variant): Rated for powerful water jet spray from any direction — direct rain, hose-down cleaning, and pressure washing won't compromise the enclosure. This is the spec that separates the EWP from the standard model, which stops at 95% non-condensing humidity. If your installation is in a car wash bay, loading dock, or open-air courtyard, IP66 is what you need.
- -40°F to 140°F Operating Range: The thermal range covers unheated northern enclosures in winter and sun-baked southern exteriors in summer without supplemental heating or cooling. Very few commercial VoIP devices hit -40°F — this spec matters for cold-storage facilities, parking structures, and outdoor kiosks that can't be climate-controlled.
- PoE Class 1 (under 4 watts): Draws less power than a LED desk lamp. On a 30W 802.3af switch port, you could theoretically run multiple phones before hitting port limits. No separate 120VAC circuit, no UPS bypass planning for a panel phone — just run your network cable.
- 316 Marine-Grade Stainless Steel Faceplate: 14-gauge 316 SS resists pitting from salt spray and chlorine far better than the 304 alloy used in most commercial panel phones. Coastal hotels, ferry terminals, port facilities, and food/beverage plants should specify 316 as a baseline — replacing a corroded panel phone in a hard-to-reach location costs far more than the grade premium up front.
- SIP 2.0 / RFC3261 Compliance + G.711u, G.711a, G.722 Codec Support: Standard SIP registration means this phone pairs with virtually any IP-PBX — Asterisk, FreePBX, Cisco UCM, 3CX, Avaya — without a proprietary gateway. G.722 delivers wideband audio (HD voice) where the PBX supports it, which improves intelligibility at noisy entry points like loading docks or mechanical rooms.
- Gel-Filled Butt Connectors (3 included): Outdoor low-voltage terminations that aren't moisture-sealed are a recurring maintenance headache. The gel-filled connectors ship with the unit so field termination is weatherproof from day one — no separate weatherproof wire nuts to source or forget.
- 100% Humidity Tolerance (EWP): The standard K-1900-6-IP stops at 95% non-condensing. The EWP variant handles fully saturated air and condensing conditions — relevant for cold-storage entry vestibules, indoor pool facilities, and steam-adjacent plant areas where condensation is predictable and unavoidable.
- Relay Control: Onboard relay output enables door/gate release or alarm integration without a separate controller. For simple single-door access scenarios this can eliminate an access control panel entirely — the phone answers, the operator triggers the relay, the door opens.
Integration & Compatibility
The K-1900-6-IPEWP registers as a standard SIP endpoint (SIP 2.0, RFC3261) on any compliant IP-PBX or hosted VoIP platform. Network connectivity is a single RJ45 10/100Base-T port with IEEE 802.3af PoE. The unit also ships with three gel-filled butt connectors for field splicing into existing wiring runs — useful in retrofit scenarios where you're replacing an analog panel phone and want to reuse the home-run cable without punch-down blocks.
Regulatory compliance covers FCC Part 15, CE, and Canada ICES-003 Class A — the phone ships legal for deployment across North America and most of the EU without additional approvals. The auto-dial number is field-programmable for 1–20 digits, covering extensions, PSTN numbers, and hunt group pilot numbers. For more complex access control integrations, the relay output wires directly to a door strike or gate controller; consult your panel phone documentation for relay current rating before wiring high-draw loads.
Dimensions for the EWP variant are 5.0" × 10.0" × 5.1" (the extra 0.13" depth versus the standard model accounts for the EWP gasket assembly). Plan your surface box or flush-mount rough-in accordingly. The EWP handset cable runs 52 to 57 inches — substantially longer than the standard 34–37" cable — which affects how the handset parks and how much cable management is needed at the mounting surface.
For projects that require a broader Viking Electronics VoIP phone selection — including multi-button models, ADA-compliant units, or emergency speakerphones — the full Viking line covers most entry and emergency communication scenarios without moving to a different vendor ecosystem.
Frequently Asked Questions
Q: What is the IP rating of the K-1900-6-IPEWP, and how does it differ from the standard K-1900-6-IP?
A: The K-1900-6-IPEWP (EWP variant) is rated IP66, meaning it is fully protected against dust ingress and against powerful water jets from any direction. The standard model is rated for 5% to 95% non-condensing humidity only and does not carry an IP66 certification. If your installation involves direct water exposure, wash-down cleaning, or outdoor environments without overhead shelter, the EWP variant is the correct choice.
Q: Does the K-1900-6-IPEWP require a separate power supply?
A: No. The phone is powered entirely by PoE (Power over Ethernet), specifically IEEE 802.3af Class 1, drawing under 4 watts. Any 802.3af-compliant switch port or PoE injector will power it. No 120VAC outlet, transformer, or secondary power run is needed at the mounting location.
Q: What IP-PBX systems is the K-1900-6-IPEWP compatible with?
A: The phone registers as a standard SIP 2.0 (RFC3261) endpoint, which is supported by virtually all major IP-PBX platforms including Asterisk, FreePBX, 3CX, Cisco Unified Communications Manager, and Avaya. Compatibility depends on your PBX supporting standard SIP registration — proprietary or analog-only systems will require a SIP gateway.
Q: What is the operating temperature range, and is it suitable for unheated outdoor enclosures?
A: The K-1900-6-IPEWP operates from -40°F to 140°F (-40°C to 60°C). This range covers unheated northern outdoor installations in winter as well as sun-exposed southern installations in summer, making it suitable for parking structures, cold-storage entry points, and unconditioned utility enclosures.
Q: What stainless steel alloy is used for the faceplate, and why does it matter?
A: The faceplate is 14-gauge 316 marine-grade stainless steel. Grade 316 contains molybdenum, which gives it significantly better resistance to chloride corrosion (salt spray, coastal air, chlorinated water) compared to the more common 304 alloy. For installations near the ocean, in food/beverage plants, or in pool/aquatic facilities, 316 SS is the correct specification.
Q: Can the K-1900-6-IPEWP trigger a door release or gate controller?
A: Yes. The unit includes onboard relay control that can be wired to a door strike, magnetic lock, or gate controller. This enables a basic access control workflow — an operator answers the call and triggers the relay to release the door — without a separate access control panel. Verify relay current and voltage ratings against your specific door hardware before wiring.
The spec I keep coming back to on the K-1900-6-IPEWP is the combination of IP66 and a -40°F floor — that pairing is genuinely uncommon in SIP panel phones at this price tier. Most units either hit the IP rating or the thermal range, not both. That dual capability is what makes this unit worth specifying for applications where the environment is actively hostile rather than merely inconvenient.
Technical Highlights:
- IP66 + 100% humidity (EWP): Unlike the standard K-1900-6-IP which stops at 95% non-condensing, the EWP gasket assembly handles fully saturated and condensing air — critical for cold-storage vestibules, indoor aquatic facilities, and wash-down production areas where standard IP ratings aren't written for continuous moisture exposure.
- PoE Class 1, under 4W: At sub-4W draw, this phone doesn't meaningfully impact a PoE switch's power budget. On a 24-port 802.3af switch with a 185W budget, you could run 46 of these theoretically — practically useful for multi-entry parking structures or campus deployments where you're daisy-chaining entries off a common IDF.
- 316 Marine-Grade SS, 14-gauge: The alloy choice is the right call for coastal, pool, and food-processing environments. 316 SS costs more than 304 but lasts measurably longer where chloride is present — the economics favor it strongly once you factor in the labor cost of replacing a corroded panel phone in a hard-to-access mounting location.
Deployment Considerations:
- The EWP variant adds 0.13" of depth (5.1" vs 5.0") and the handset cable extends to 52–57" versus 34–37" on the standard model — plan your surface box rough-in and cable management before ordering. Swapping variants after rough-in can require reboxing or a new backbox.
- The relay output supports simple door/gate release but requires you to verify the relay's current and voltage ratings against your specific door hardware before wiring. High-draw magnetic locks typically need an intermediate relay or power transfer module — don't wire a 1A mag-lock directly without checking the spec sheet.
For a covered exterior entry at a food and beverage plant, cold-storage distribution center, or coastal marina facility — where the phone will see wash-down cycles, condensation, and temperature extremes — the K-1900-6-IPEWP is the model that covers the environmental brief without requiring a weatherproof housing add-on.
