Viking E-1600-65-IP VoIP Emergency Phone IP66 PoE Blue ADA

Viking Electronics E-1600-65-IP VoIP ADA Emergency Phone

Overview

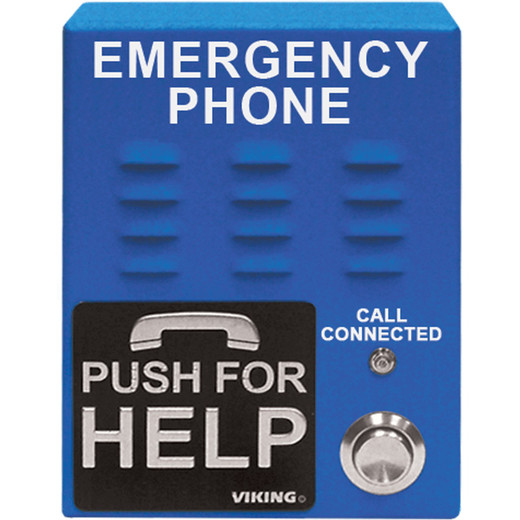

The Viking Electronics E-1600-65-IP is a surface-mount VoIP emergency phone engineered for outdoor and harsh-environment life-safety applications — areas of refuge, parking structures, school campuses, stairwells, and industrial facilities where reliable emergency communication is a code requirement, not an option. Built from 16-gauge steel with a textured blue powder-coat finish and stamped "Emergency Phone" verbiage, it delivers unambiguous visual identification in any environment. It draws under 4 watts via standard 802.3af PoE, registers on any SIP 2.0-compliant platform, and carries an IP66 environmental rating — making it deployable outdoors without a separate enclosure or secondary power run. The E-1600-65-IP (often searched as E 1600 65 IP) ships ready for single-gang surface mounting with no raceway or flush-mount box required.

Key Features

• PoE Class 1 (<4W) Power: Draws under 4 watts from a standard 802.3af switch port — one of the most power-efficient devices on your PoE budget. No separate transformer, no conduit for AC power, no electrician coordination. Run a single Cat5e/6 to the device and you're done.
• IP66 Ingress Protection: Fully sealed against dust and high-pressure water jets. Rated for direct rain, wash-down zones, and covered outdoor installations without needing a secondary weatherproof housing. If the installation involves submersion or standing water, step up to IP67+ — IP66 stops short of that.
• -40°F to 140°F Operating Range: Covers northern parking garages through desert-climate industrial sites in a single SKU. Most competing devices derate at -4°F or below — the E-1600-65-IP's -40°F floor is a genuine differentiator for cold-storage facilities, outdoor installations in northern climates, or any environment with extreme thermal cycling.
• 95 dB SPL @ 1m Speaker Output: Loud enough to cut through ambient machinery noise, HVAC roar, or traffic in a parking structure. In a typical 80dB ambient environment, 95dB at the device face provides adequate intelligibility at 3–5 meters — enough coverage for a standard elevator lobby or stairwell landing without requiring a secondary speaker.
• SIP 2.0 (RFC3261) Protocol: Registers natively on any standards-compliant IP-PBX, VoIP gateway, or hosted UC platform. No proprietary call server required. Integrate into an existing Cisco, Avaya, FreePBX, or equivalent infrastructure without additional licensing or middleware.
• G.711u / G.711a / G.722 Audio Codecs: G.722 wideband codec delivers noticeably clearer voice intelligibility compared to narrowband G.711 — relevant when the caller is panicked, the environment is noisy, and the dispatcher needs to understand what's being said without asking for repeats.
• Dual Relay Contacts (2A @ 30VDC / 1A @ 125VAC): Two dry-contact relay outputs let you wire a strobe, door release, or external alert device directly from the phone. Trigger a visual alert outside the stairwell when the phone is active — no separate relay module needed in the panel.
• 16-Gauge Steel Construction: Resists vandalism and physical impact in public or semi-public environments. The textured powder-coat finish hides scuffs and reduces glare under artificial lighting — practical in institutional corridors and parking structures alike.
• Three Gel-Filled Butt Connectors: The connection method uses gel-filled butt connectors rather than terminal blocks, which means splices are moisture-resistant at the point of termination — relevant in outdoor runs where wire penetrations are exposed to humidity or condensation.
• IEEE 802.3af / 100BASE-Tx Network: Standard Fast Ethernet interface connects to any PoE-capable managed or unmanaged switch. No Gigabit requirement means this device works on legacy infrastructure without a switch upgrade.

Integration & Compatibility

The E-1600-65-IP registers as a standard SIP 2.0 endpoint, compatible with any RFC3261-compliant call server — on-premises IP-PBX, hosted VoIP, or SIP trunking gateway. The RJ45 10/100 port connects directly to your PoE switch; no injector or secondary power supply is needed as long as your switch delivers 802.3af on that port. The dual relay contacts (2A @ 30VDC, 1A @ 125VAC) interface with access control panels, strobe controllers, or building automation systems via dry-contact wiring. For large-scale emergency phone deployments across a VoIP phone infrastructure, the device fits naturally into existing dial-plan architecture without dedicated emergency phone management software. Pair with a PoE network switch that budgets at least Class 1 (under 4W) per port — virtually any 802.3af switch qualifies. Review Viking's broader Viking Electronics emergency communication line for companion devices including indoor analogs, call boxes, and entry systems. For campus-wide deployments, a emergency phone planning guide covering ADA placement, zoning, and SIP trunk capacity will help size the system correctly before procurement.

Frequently Asked Questions

Q: Does the E-1600-65-IP require a separate power supply or can it run entirely on PoE?

A: It runs entirely on a single Cat5e/6 cable via standard 802.3af PoE. It draws under 4 watts (Class 1), so virtually any 802.3af-capable switch port will power it with no injector or local AC power needed.

Q: Is the E-1600-65-IP rated for outdoor installation without an additional enclosure?

A: Yes. The IP66 rating means it is fully sealed against dust and high-pressure water jets, making it suitable for covered outdoor installations, parking structures, and wash-down environments without a separate weatherproof housing. It is not rated for submersion — applications requiring underwater or standing-water exposure need IP67 or higher.

Q: What SIP platforms does the E-1600-65-IP work with?

A: It implements SIP 2.0 per RFC3261, the industry standard. It will register on any compliant IP-PBX or hosted VoIP platform — Cisco, Avaya, FreePBX, 3CX, and similar. No proprietary call server or additional licensing is required.

Q: What are the relay contacts used for, and what loads can they switch?

A: The two relay contacts are rated at 2A @ 30VDC or 1A @ 125VAC (250VAC maximum). They are typically used to trigger a strobe light, door release, or external audible alert when the phone is activated — wired directly to access control panels or building automation dry-contact inputs.

Q: How loud is the speaker, and is it adequate for noisy environments?

A: The speaker produces 95 dB SPL at 1 meter. In most industrial or parking-structure ambient noise environments (70–85 dB), this output level provides clear intelligibility at conversational distances of 3–5 meters without an external amplifier.

Q: What is the operating temperature range of the E-1600-65-IP?

A: -40°F to 140°F (-40°C to 60°C). This covers cold-storage facilities, northern outdoor installations, and high-heat industrial environments in a single device without requiring a heated enclosure or additional thermal management.

Ted Perry

The spec that drives most of my E-1600-65-IP recommendations is the -40°F lower operating limit paired with IP66. That combination eliminates the two most common reasons emergency phones fail AHJ inspection in cold climates: thermal shutdown in unheated stairwells and moisture ingress at the faceplate. Combined with a sub-4W PoE draw, the E-1600-65-IP fits on any existing 802.3af infrastructure without a power audit.

Technical Highlights:

• IP66 + -40°F to 140°F: Handles both the moisture environment and the thermal range that eliminates most competing devices in outdoor or semi-outdoor life-safety roles — no secondary housing, no heater kit.
• 95 dB SPL @ 1m speaker: Provides actionable voice intelligibility in environments up to roughly 85 dB ambient — parking structures, loading docks, mechanical rooms — without a supplemental amplifier or external speaker.
• Dual relay contacts (2A @ 30VDC / 1A @ 125VAC): Lets you close a strobe or door-release circuit directly from the phone activation event, reducing panel wiring complexity and eliminating a relay module in the headend closet.

Deployment Considerations:

• Surface-mount only — the 5.0 x 5.0 x 2.25-inch chassis has no flush-mount option, so confirm your architect's finish schedule accepts surface-mounted hardware at ADA-height placement before finalizing the rough-in locations.
• The gel-filled butt connector termination method is moisture-resistant but non-reversible — plan your wire lengths carefully before splicing, especially in conduit runs where pulling slack is difficult after the fact.

This device is the right call for areas-of-refuge deployments in schools and municipal facilities where a single cable run (PoE data) must replace what used to require both a phone line and an AC power circuit — it genuinely simplifies the rough-in and keeps the installation compliant with ADA and IBC area-of-refuge communication requirements.
