Viking E-1600-02-IP VoIP Emergency Phone IP66 PoE ADA

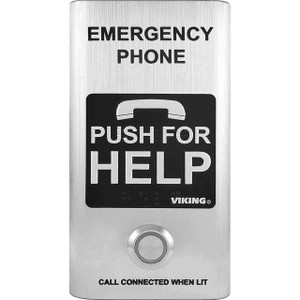

Viking Electronics E-1600-02-IP VoIP ADA Emergency Phone Flush Mount Stainless Steel

Overview

The Viking Electronics E-1600-02-IP is a compact, stainless steel VoIP emergency phone built for demanding code-compliance and life-safety applications — areas of refuge, school corridors, parking structures, and industrial sites where a phone must work the first time, every time, regardless of weather or ambient noise. Shipping as a flush-mount-only unit, the E-1600-02-IP runs on standard 802.3af PoE (Class 1, under 4W), eliminating the need for a separate power run and simplifying installation in any network-wired enclosure. It speaks SIP 2.0 (RFC 3261) natively, so it drops into virtually any hosted or on-premises PBX without proprietary gateways or adapter hardware. For integrators working across schools, hospitals, municipalities, and transit facilities, this unit covers the environmental and accessibility requirements that general-purpose VoIP endpoints simply aren't rated for.

Key Features

• PoE Class 1 (<4W): Draws less than 4 watts via IEEE 802.3af — the lightest PoE class available. On a 24-port 802.3af switch with a 185W budget, you can power over 40 of these units without approaching the switch's limit. No local transformer, no conduit for power. One Cat5e/Cat6 run does everything.
• IP66 Ingress Protection: Fully sealed against dust and direct high-pressure water jets. That rating means outdoor mounting in rain-exposed corridors, covered parking structures, and building exteriors is code-supportable — you don't need an additional weatherproof housing. IP66 does not cover submersion; for below-grade or flood-prone installations, confirm the site classification before specifying.
• -40°F to 140°F (-40°C to 60°C) Operating Range: Few VoIP endpoints are rated below 0°F. This unit's -40°F floor covers unheated parking garages, exterior stairwells in northern climates, and industrial cold-storage corridors where standard phones fail in winter. The 140°F ceiling handles direct-sun-exposed outdoor enclosures in desert or industrial heat environments without thermal shutdown.
• 95 dB SPL at 1 meter: That's roughly equivalent to a motorcycle at close range — loud enough to be heard over ambient industrial noise, loading-dock activity, or a crowded corridor. In a quiet office environment, 95 dB is extreme; in a warehouse or mechanical room, it's what saves lives. Verify local noise ordinances if installation is near occupied spaces.
• SIP 2.0 (RFC 3261) Compliance: Pure open-standard SIP means this phone registers with Cisco UCM, Avaya Aura, FreePBX, Grandstream UCM, 3CX, and virtually any hosted SIP trunk without firmware customization. You're not locked into a Viking-specific call server. Emergency calls route through your existing telephony infrastructure.
• G.711u / G.711a / G.722 Audio Codecs: G.722 wideband codec support means call clarity is noticeably better than G.711-only endpoints on compliant networks — relevant in noisy environments where the far-end dispatcher needs to understand the caller clearly. G.711u/a ensures compatibility with legacy PBX systems that haven't adopted wideband.
• 100BASE-Tx / RJ-45 with Gel-Filled Butt Connectors: The single RJ-45 10/100 port handles both network data and PoE on one connection. The three included gel-filled butt connectors are specifically designed for outdoor and wet-location splicing — standard wire nuts in a damp junction box are a service call waiting to happen. These are the right termination method for the phone's IP66 rating.
• 2-Amp Relay Contacts: Onboard relay output lets this phone trigger a door strike, visual alert, or access control event on call activation — a meaningful feature in area-of-refuge and elevator lobby installations where the emergency phone also needs to signal a remote monitoring panel or release a mag-lock.
• 5% to 95% Non-Condensing Humidity (Standard): Suitable for humid interior environments including indoor pool areas, laundry facilities, and kitchens without additional sealing. For 100% humidity exposure (EWP variant environments), confirm the specific model designation — the standard E-1600-02-IP is rated to 95% non-condensing.
• CE / FCC Part 15 / ICES-003 Class A Regulatory Compliance: Certifications covering both US (FCC) and Canadian (ICES-003) markets, plus CE for European deployment. Class A is the commercial/industrial designation — appropriate for this product's target environments. These are verified regulatory marks, not self-declarations.

Integration & Compatibility

The E-1600-02-IP (often searched as E 1600 02 IP) integrates over a standard SIP 2.0 trunk — no proprietary protocol, no Viking-specific call server required. On the network side, it requires a single Cat5e or Cat6 run to an 802.3af-capable switch port; it will not negotiate PoE+ or PoE++ power beyond its Class 1 ceiling, so there's no risk of over-drawing a switch port. It connects via one RJ-45 10/100 Base-T interface — gigabit is not supported, which is a non-issue for voice traffic but worth noting if the switch port is also expected to carry high-bandwidth data. The relay contacts (2A rating) support integration with access control panels, visual notification appliances, or emergency lighting systems that can accept a dry-contact trigger. For ADA-compliant area-of-refuge installations, verify that your PBX or call server is configured to route calls from this station to a monitored emergency destination per local code — the hardware meets the physical and connectivity requirements, but the call routing and monitoring obligations are on the system design side. Explore Viking Electronics emergency phones for the full E-1600 series lineup, or pair this unit with a VoIP paging system for broader mass-notification coverage. For switch selection, review our PoE switch category to confirm port budgets. A weatherproof RJ-45 connector guide can help with outdoor cable termination planning.

Frequently Asked Questions

Q: Does the E-1600-02-IP require a Viking-specific call server or PBX?

A: No. It uses standard SIP 2.0 (RFC 3261) and works with any SIP-compatible PBX or hosted SIP trunk — including Cisco UCM, Avaya, FreePBX, 3CX, and similar platforms. No proprietary server is required.

Q: What PoE standard does the E-1600-02-IP use, and will it work with my existing switch?

A: It uses IEEE 802.3af PoE, Class 1, drawing under 4 watts. Any 802.3af or 802.3at switch port will power it. It does not require PoE+ and won't strain a standard switch power budget.

Q: Is the E-1600-02-IP rated for outdoor installation in cold climates?

A: Yes. The operating temperature range is -40°F to 140°F (-40°C to 60°C), and the IP66 rating provides full protection against dust and high-pressure water jets. It is suitable for unheated exterior and semi-exposed mounting in most climates. It is not rated for submersion.

Q: Can the relay output integrate with an access control or door release system?

A: Yes. The onboard relay contacts are rated at 2 amps and can trigger a door strike, visual notification device, or access control panel input on call activation — a common requirement in area-of-refuge and elevator lobby deployments.

Q: What audio codecs does the E-1600-02-IP support?

A: It supports G.711u, G.711a, and G.722. G.722 wideband support improves call clarity on compliant networks, which is especially useful in high-ambient-noise environments where dispatcher comprehension matters.

Q: Is the E-1600-02-IP flush mount only or can it surface mount?

A: Per the product listing, this specific model is flush mount only. Surface mount configurations are available in other variants within the E-1600 series — confirm the model designation before ordering if surface mount is required.

Jerry Tildsen

The E-1600-02-IP is one of the cleaner life-safety VoIP deployments I spec when the job involves areas of refuge or exterior emergency stations — specifically because its 802.3af Class 1 draw (under 4 watts) means I'm never negotiating switch port budgets with the IT team, and its -40°F cold-weather floor covers northern climate exteriors that eliminate most competing SIP endpoints from consideration outright.

Technical Highlights:

• SIP 2.0 / RFC 3261: Open-standard SIP registration means this phone works with whatever call server the facility already runs — Cisco, Avaya, Grandstream, hosted SIP — without a Viking-proprietary server in the path. That matters on municipal and campus projects where the telephony infrastructure is already locked in.
• 95 dB SPL at 1 meter: That output level is the spec that justifies this unit in industrial and mechanical-room installations. It's not subtle — it will be heard over ambient machinery noise. In a quiet office lobby, it would be overkill; in a parking garage or loading dock, it's exactly correct.
• 2-Amp Relay Contacts: The dry-contact relay is the detail that lets this phone do double duty on access control integrations — trigger a mag-lock release or a visual strobe on call activation without adding a separate relay module to the enclosure. On ADA area-of-refuge installs where the phone must also signal a remote panel, this is the right hardware.

Deployment Considerations:

• The gel-filled butt connectors supplied with the unit are the correct termination method for outdoor Cat5e runs in damp or direct-wet locations — standard punch-down or twist-and-tape connections will wick moisture and cause intermittent failures in an IP66-rated enclosure over time. Use the supplied connectors or equivalent gel-filled splices at every outdoor junction.
• The E-1600-02-IP is flush-mount only in this configuration — if the wall box isn't pre-cut or the installation is surface-mounted conduit, a different variant in the E-1600 series is needed. Confirm rough-in requirements before the electrician's first visit, not after.

For transit authority emergency station retrofit projects — platform call boxes, tunnel access points, bus depot emergency posts — the E-1600-02-IP's combination of IP66, -40°F cold rating, 95 dB output, and clean SIP integration makes it a straightforward fit without requiring a parallel power infrastructure build-out.
