Model:

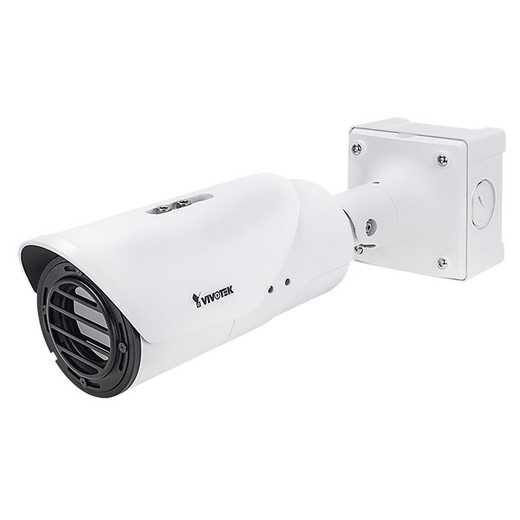

TB9330-E(8.8mm); TB9330-E(19mm); TB9330-E(35mm); TB9330-E(50mm)
CPU:
Multimedia SoC (System-on-Chip)
Flash:
128 MB
RAM:
512 MB
Image Sensor:
Uncooled VOx infrared detector
Max. Resolution:
Effective pixels: 384x256; Image scale up to: 960x640
Pixel Size:
17 µm
Spectral Range:
8 ~ 14 µm
Sensitivity:
NETD < 50 mk
Lens Type:
Fixed-focal (Thermal Lens)
Focal Length:
TB9330-E(8.8mm): f = 8.8 mm; TB9330-E(19mm): f = 19 mm; TB9330-E(35mm): f = 35 mm; TB9330-E(50mm): f = 50 mm
Aperture:
F1.0
Iris Type:
Fixed iris
Field of View:
TB9330-E(19mm): 18.3° (Horizontal); 12.3° (Vertical); 21.9° (Diagonal)
Pan/Tilt/Zoom Functionalities:
ePTZ: 20x digital zoom (4x on IE plug-in, 5x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 384x256
Maximum Streams:
4 simultaneous streams
Video Streaming:
Adjustable resolution, quality and bit rate control, Smart Stream II
Image Settings:
General settings: video tite and time stamp overlay, video orientation (flip, mirror, rotation); Thermal settings: white balance, image adjustment (brightness, contrast, sharpness); Privacy mask; Scheduled profile settings
Audio Capability:
Two-way Audio (full duplex)
Audio Compression:
G.726, G.711
Audio Interface:
External microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection,user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S supported, specification available at www.onvif.org
Video Motion Detection:
Five-window video motion detection, human detection, time filter
VCA:
Line crossing detection, field detection, loitering detection
VADP Package:
Trend Micro IoT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy
Event Action:
Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100Mpbs Network/PoE connection; Audio input; Audio output; DC 12V power input; AC 24V power input; Digital input; Digital output; BNC; RS485
LED Indicator:
System power and status indicator
Power Input:
AC 24V, DC 12V, IEEE 802.3at PoE Class 4; (Simultaneous Power Redundancy Supported)
Power Consumption:
PoE: Max. 12.5 W; DC 12V: Max. 10 W; AC 24V: Max. 11 W
Dimensions:
TB9330-E(8.8mm): 121 x 121 x 471.2 mm (with junction box); TB9330-E(19mm): 121 x 121 x 452.2 mm (with junction box); TB9330-E(35mm)/(50mm): 121 x 121 x 455.6 mm (with junction box)
Weight:
TB9330-E(8.8mm)/(35mm)/(50mm): 2,080 g; TB9330-E(19mm): 2,000 g
Certifications:
EMC: CE (EN 55032 Class A, EN 55024, EN 50121-3-2, EN 50121-4), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 60950-1), CB (IEC/EN 60950-1, IEC/EN 60950-22; Environment: IK10
Operating Temperature:
Start Temperature: -40°C ~ 60°C (-40°F ~ 140°F); Working temperature: -50°C ~ 60°C (-58°F ~ 140°F)
Humidity:
90%
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installation guide, alignment sticker, screw pack, waterproof accessory bag, junction box, sunshield
