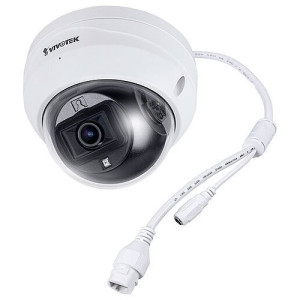

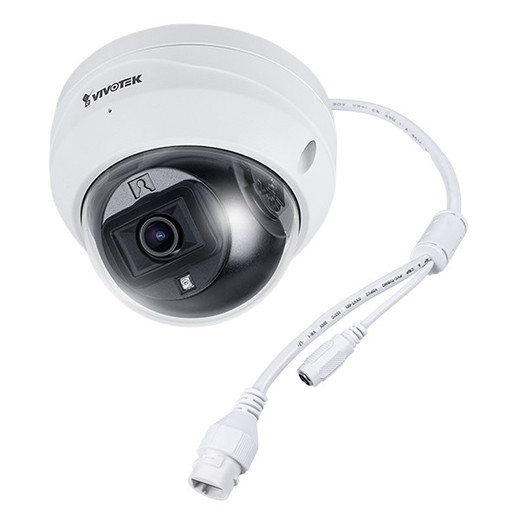

Vivotek FD9369-F2 2MP Outdoor Dome IP Camera

Vivotek FD9369-F2 2MP Outdoor Dome IP Camera

The FD9369-F2 is a fixed-dome outdoor surveillance camera built for unattended 24/7 monitoring in variable weather. Housed in an IP66-rated enclosure, it deploys on building eaves, poles, or wall mounts without requiring weatherproof shrouds or additional environmental hardening. The 1/3.1" Progressive CMOS sensor delivers 2MP resolution at 1920×1080, 30 fps—sufficient for perimeter identification and vehicle-level detail in parking lots and facility entrances.

Key Features

• 2MP Full HD (1920×1080) at 30 fps: Resolves faces at 10–15 feet and vehicle plates at 25–30 feet; 30 fps eliminates stuttering during playback of moving subjects, which matters in incident review.
• 116° horizontal field of view: Covers wide facility fronts or lot sections from a single mount point, reducing the number of cameras needed for perimeter coverage.
• F2.0 fixed lens: Larger aperture (compared to F2.8 alternatives) gathers more light in twilight and dawn, directly lowering your minimum illumination requirements for color detail.
• WDR Enhanced processing: Balances overexposed sky against shadowed foreground in backlit scenes (e.g., entrance doors with bright glass behind them)—eliminates the black silhouette problem without requiring scene reconfiguration.
• IR night vision with Smart IR, effective to 30 meters: Delivers day/night operation without auxiliary lighting; Smart IR prevents overexposure when the IR LEDs are at full strength, maintaining usable image contrast in near-darkness.
• Extreme low-light sensitivity: 0.08 lux (color) / <0.005 lux (B/W) at F2.0: Can operate in near-moonlight conditions when IR is off, critical for applications where you need color detail in low ambient light without thermal noise.
• H.265 codec with dual-stream and 7 configurable profiles: Cuts storage footprint to roughly 40–60% of H.264, meaningful when recording dozens of cameras 24/7 to edge microSD or a central NVR.
• IP66 weatherproof rating: Survives direct rain, dust storms, and hose-down without degradation; does not require IP67 (full submersion) for typical outdoor mounting.
• PoE-powered, maximum 6.49W (IR on) or 5.1W (IR off): Consumes less than half the power budget of 802.3af PoE (15.4W), so it won't stress a standard PoE switch or cause injector overload in daisy-chain runs.
• Built-in microphone with one-way audio (5-meter effective range): Captures ambient sound for entrance monitoring or lot perimeter verification; range is limited, so position the camera within 5 meters of the target audio source.
• MicroSD/SDHC/SDXC card storage (local backup) and NAS support: Enables redundant recording on-camera while simultaneously pushing streams to a central recorder, protecting against switch or network outages.
• Removable IR-cut filter for day/night transitions: Automatically or manually switch between color (daytime) and infrared-enhanced (nighttime) modes; avoids the colored tint some fixed-filter designs introduce during twilight.
• ePTZ with 18× digital zoom: Reframe recorded footage after capture or during live monitoring without moving the camera; useful for verifying details in archived clips.
• Video motion detection with people and vehicle detection: Cuts false alarms compared to raw pixel-change detection; time filtering further suppresses events from blowing leaves or shadows.
• ONVIF Profile S and T compliance: Ensures interoperability with third-party VMS platforms (Milestone, Genetec, etc.) without vendor lock-in.
• Compact form factor (Ø110 × 85 mm, 465g): Discretely mounts to poles, walls, or eaves with minimal aesthetic impact.

Integration & Network Security

The FD9369-F2 (often searched as FD9369 F2) supports HTTPS, IEEE 802.1x authentication, digest authentication, and user access logs for enterprise compliance. Firmware is signed, preventing man-in-the-middle tampering. Standard protocols include RTSP/RTP, DHCP, DNS, NTP, and QoS—all necessary for enterprise IP camera deployments. The camera handles up to 10 concurrent live-viewing clients, suitable for control room environments with multiple operators or a mix of live and recorded playback feeds.

Typical Deployments

Parking area surveillance, building perimeter security, facility entrance monitoring, and outdoor loading dock areas benefit from the 30-meter IR range and WDR balance. The audio input assists in detecting unauthorized entry attempts or unusual facility activity during off-hours.

Frequently Asked Questions

Q: What's the maximum effective IR range?

A: 30 meters with the built-in Smart IR LED illuminators. Beyond that distance, nighttime images will be darker and may lose detail unless ambient light is present.

Q: Does the FD9369-F2 support two-way audio?

A: No. It includes a built-in microphone for one-way audio capture (listening) with a 5-meter effective range. If two-way communication is required, choose a model with both audio input and line-level audio output.

Q: Can I use the FD9369-F2 with Milestone XProtect or Genetec Security Center?

A: Yes. The camera complies with ONVIF Profile S and T, ensuring integration with any standards-compliant VMS. Refer to your VMS documentation for driver setup and credential assignment.

Q: What codec should I choose for 24/7 recording?

A: H.265 is preferred for continuous recording because it reduces file size by 40–60% versus H.264 at equivalent quality. This cuts storage costs significantly over weeks or months. H.264 offers better compatibility with older NVRs and software.

Q: Is the FD9369-F2 suitable for a location where I cannot run a dedicated power line?

A: Yes, as long as you have PoE available on your switch or injector. It draws 6.49W maximum with IR enabled, well within 802.3af (15.4W) capacity.

Q: Can I mount this camera indoors?

A: Technically yes, but the IP66 rating and outdoor-focused IR design are unnecessary indoors. For interior use, a standard 2MP indoor dome camera would be more cost-effective and compact.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The FD9369-F2 delivers reliable mid-tier outdoor surveillance for organizations prioritizing environmental durability, extended night vision, and efficient bandwidth use. The 30-meter IR effective distance covers standard facility perimeters and parking lots without requiring auxiliary lighting infrastructure. WDR Enhanced meaningfully reduces glare in entrance scenarios where direct sun and indoor shade coexist—a real problem in backlit door monitoring that many budget outdoor domes fail to handle well.

Technical Highlights:

• H.265 codec with 7 configurable profiles: Reduces typical storage consumption by 50% compared to H.264, a genuine cost factor when deploying a dozen cameras on continuous recording. The dual-stream capability lets you deliver high-bitrate primary streams to the VMS while locally recording compressed backups to microSD.
• WDR Enhanced + removable IR-cut filter: The combination addresses the two most common outdoor daylight problems—backlit silhouettes and color wash. Automatic day/night filter transition prevents the color tint and ghosting that plague fixed IR-cut designs in low-light crossover periods.
• 0.08 lux color sensitivity at F2.0: Genuine twilight operation with color detail, not just infrared-only monochrome. Matters for license plate and facial detail in dawn/dusk scenarios where IR alone produces high noise.
• IP66 + PoE redundancy support: You can run dual power (simultaneous PoE + 12VDC input) for true power-path redundancy in critical perimeters, eliminating single-point power failure risk.

Deployment Considerations:

• The 5-meter one-way audio range is functional for door/entrance monitoring but useless for lot perimeter pickup. If you need audio evidence from parking areas, place the camera within talking distance or select a model with a higher-sensitivity microphone.
• H.265 transcoding compatibility varies by NVR and archival software—verify your downstream system supports it before committing to H.265-only recording profiles. Fallback to H.264 if your VMS is legacy.
• 116° horizontal FOV is wide but not ultra-wide; expect to need 2–3 units to cover a 300-foot building face. Plan camera placement with sightline surveys, not guesswork.

The FD9369-F2 is well-suited for facility perimeter, parking lot, and entrance monitoring where 2MP resolves your subject (vehicle or person) at useful distances and IP66 durability eliminates enclosure cost. It is not the choice for ultra-long-distance monitoring (100+ meters) or where facial detail at 50 feet is mandatory—those demand 4MP or higher. For a standard mixed outdoor deployment (entrance, lot, perimeter) with 24/7 recording and budget discipline, this is a rational anchor point.
