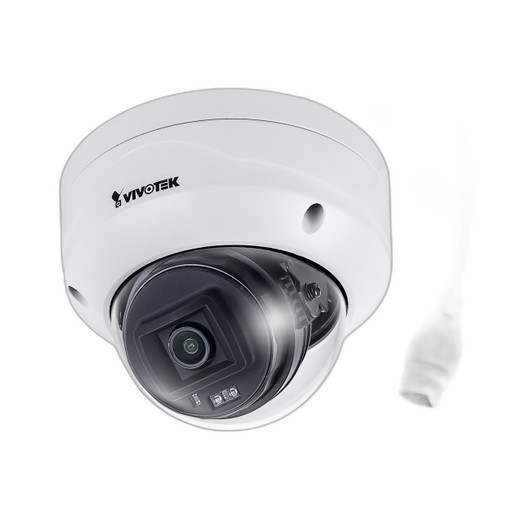

Vivotek FD9360-HF2 (2MP) Outdoor Night Vision IR Fixed Dome IP Camera

MSRP: $237.60

Add to Cart for Sale Price!

$169.99
Adding to cart… The item has been added
SKU: FD9360-HF2
UPC: 4710469351082
Availability: Usually Ships Same Business Day
Warranty: 3-Year Warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Vivotek FD9360-HF2 (2MP) Outdoor Night Vision IR Fixed Dome IP Camera

MSRP: $237.60

Add to Cart for Sale Price!

$169.99
Description

The Vivotek FD9360-HF2 is a 2MP outdoor fixed dome IP camera designed for robust and reliable surveillance in various environmental conditions. With its advanced IR night vision capabilities, this camera ensures exceptional video quality, capturing detailed images in complete darkness up to 30 meters away. Its high-resolution 2MP sensor provides sharp, clear footage, making it an ideal solution for areas requiring accurate identification and monitoring, such as building perimeters, parking lots, and retail exteriors.

Incorporating Supreme Night Visibility technology, the FD9360-HF2 optimizes low-light performance, ensuring high-quality video capture in all lighting conditions. The camera also features Smart Stream III technology, significantly reducing bandwidth and storage requirements and making it an efficient choice for extended recording periods. Its durable design includes an IP66-rated enclosure that protects against dust and rain and an IK10 rating for protection against physical impacts, ensuring continued operation in harsh weather conditions and high-risk environments.

Key Features:

  • 2 Megapixel Full HD Resolution: Delivers sharp and clear video footage.
  • IR Night Vision (30 meters): Provides visibility in complete darkness, enhancing security at night.
  • Smart Stream III Technology: Optimizes bandwidth and storage with efficient video compression.
  • Supreme Night Visibility: Ensures excellent video quality under low-light conditions.
  • IP66 Weatherproof and IK10 Vandal Resistant: Offers durability against environmental and physical impacts.
  • Power over Ethernet (PoE): Simplifies installation by using a single cable for both power and data.
  • WDR Enhancement: Balances lighting in scenes with high contrast, maintaining image detail.

Compatibility:

  • Systems: Fully compliant with ONVIF standards for easy integration into existing surveillance systems.
  • Devices: Compatible with a wide range of network video recorders and video management software solutions.

Package Contents:

  • Vivotek FD9360-HF2 Camera
  • Quick Installation Guide
  • Wall Mount Bracket
  • Alignment Sticker
  • Waterproof Connector
  • Screws and Wall Plugs
  • Software CD

Summary:

The Vivotek FD9360-HF2 stands out among outdoor surveillance cameras due to its powerful night vision, high durability, and advanced video compression capabilities. Its ability to deliver high-quality footage in diverse weather and lighting conditions makes it a dependable choice for businesses looking to enhance their security infrastructure with a robust, efficient, easy-to-integrate surveillance solution.

Specifications
Model: FD9360-H (2.8mm)
CPU: Multimedia SoC (System-on-Chip)
Flash: 128 MB
RAM: 256 MB
Image Sensor: 1/2.9" Progressive CMOS
Max. Resolution: 1920x1080 (2MP)
Lens Type: Fixed-focal
Focal Length: FD9360-H(2.8mm): f = 2.8 mm
Aperture: F2.0
Iris Type: Fixed iris
Field of View: FD9360-H(2.8mm): 109° (Horizontal); 59° (Vertical); 129° (Diagonal)
Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Pro
Day/Night: Yes
Removable IR-cut Filter: Yes
IR Illuminators: Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination: 0.065 lux @ F2.0 (Color);
Pan Range: 350°
Tilt Range: 75°
Rotation Range: 350°
Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 30 fps @ 1920x1080
Maximum Streams: 3 video streams (Up to 8 configurable profiles)
S/N Ratio: FD9360-H(2.8mm): 68 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings: General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment
Users: Live viewing for up to 10 clients
Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF: Profile, S, T supported, specification available at www.onvif.org
Video Motion Detection: Five-window video motion detection
VADP Package: Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Event Trigger: Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action: Event notification via email, HTTP, FTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP, NAS server, SD card
Connectors: RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator: System power and status indicator
Power Input: IEEE 802.3af PoE Class 2
Power Consumption: Max. 6.49 W/3.69 W (IR on/off)
Dimensions: Ø 117.2 x 89.6 mm
Weight: 540 g
Certifications: EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66
Operating Temperature: Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F); Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity: 0.9
Operating System: Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above; Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above
Packing Contents: Quick installationuide, alignment sticker, screw pack, cableland
