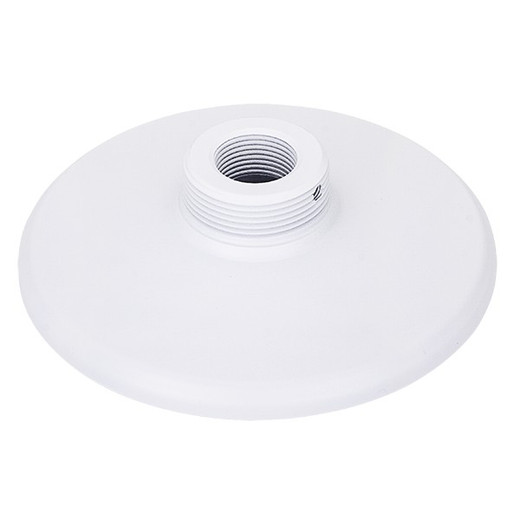

Vivotek AM-525_V01 Outdoor Dome Camera Mounting Adapter
The AM-525_V01 is a purpose-built mounting adapter for integrating Vivotek outdoor dome cameras into pole, wall, and conduit-mount installations. Aluminum alloy construction delivers corrosion resistance in salt spray and industrial environments where steel would degrade within months. At 320 grams, it's light enough to minimize stress on mounting hardware while remaining rigid enough to handle vibration from wind loading or traffic-adjacent deployments.
Key Features
- Aluminum alloy body: Resists corrosion in coastal, chemical-plant, and high-humidity environments — no paint flaking or rust bloom under UV exposure.
- Dual pipe thread interface: 3/4" NPT Female inlet and 1-1/2" PS Male outlet let you adapt between standard conduit sizes without additional reducers, cutting installation time and leak points.
- Compact footprint (Ø 155 × 42 mm): Minimal visual profile reduces clutter on pole mounts and keeps the adapter concealed within standard electrical enclosures on wall installations.
- Weather-resistant design: The sealed construction prevents water ingress into the camera base, critical when mounted on exposed conduit where condensation or rain will accumulate.
- Lightweight (320 g): Low weight means less load on pole-top brackets and reduces hardware costs compared to cast-iron alternatives.
- 13+ camera model compatibility: Works with FD8377, FD9371, FD9365, FD9367, FD9387, FD9391, FE9380, FE9382, and FE9391 series cameras — covers most Vivotek outdoor dome models deployed in the last three generations.
Integration & Compatibility
The AM-525_V01 is designed for integration with Vivotek IP cameras in the FD and FE outdoor dome families. When paired with outdoor IP cameras and connected to a network video recorder, the adapter serves as the mechanical interface between conduit/pole infrastructure and the camera base. Standard 1/2" electrical conduit threads into the 3/4" NPT female port; 1-1/2" rigid or flexible conduit exits via the PS male port. No special tools are needed — a standard pipe wrench provides sufficient leverage for hand-tight installation. Cable management is aided by the offset design, which allows network and power conductors to route through the mounting pole without sharp bends that could degrade shielding.
Before ordering, confirm your existing pole or conduit diameter matches one of the two thread sizes. If you're upgrading from a different mounting solution, verify that your camera model appears on the compatibility list above. The adapter does not include internal sealing gaskets; rely on the camera's base gasket and standard pipe-thread sealant (PTFE tape or pipe dope) to ensure weatherproofing.
Deployment Scenarios
This adapter is essential for perimeter security where pole-mounted domes provide coverage of large areas (parking lots, fence lines, warehouse yards). It's equally suited for campus installations on existing light poles or utility structures. Industrial facilities with conduit-based infrastructure benefit from the threaded interface, which integrates seamlessly with electrician-standard conduit runs. In any environment where the dome camera is mounted on a structure rather than a wall or ceiling, the AM-525_V01 simplifies the mechanical connection and reduces the risk of water pooling at the base.
Frequently Asked Questions
Q: Does the AM-525_V01 require any tools for installation?
A: A pipe wrench or adjustable wrench is recommended for tightening the NPT threads. The adapter itself comes unthreaded; you hand-tight the connection and then make a final quarter-turn with the wrench to seat the threads.
Q: Can I use this adapter with non-Vivotek dome cameras?
A: The AM-525_V01 is engineered for Vivotek's base interface and the 13+ model variants listed above. Other brands' dome cameras have different base mounting footprints and are not compatible.
Q: What should I use to seal the threads?
A: Standard PTFE (plumber's) tape or pipe thread compound (dope) is appropriate. Wrap the male threads (PS side) with PTFE tape before connecting to prevent water leakage into the conduit cavity.
Q: Is the AM-525_V01 suitable for coastal salt-spray environments?
A: Yes. Aluminum alloy resists salt corrosion better than painted steel. For extreme salt-spray zones (e.g., oceanfront), rinse the adapter annually with fresh water and inspect threads for white corrosion powder.
Q: What size conduit does the 3/4" NPT female port accept?
A: 3/4" NPT is the standard thread size for 1/2" electrical conduit. The 1-1/2" PS outlet accommodates 1-1/4" conduit. Verify your pole or conduit diameter before purchase.
Q: Does this adapter include mounting hardware or fasteners?
A: The adapter is supplied as the threaded coupling only. You provide the conduit, pipe wrench, and PTFE tape. The camera base and pole/mounting structure are separate.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The AM-525_V01 fills a genuine gap in outdoor dome mounting — it's the connector between standard electrical infrastructure (conduit) and Vivotek's base interface, and getting it wrong means water ingress, corrosion, and callback work. Aluminum alloy here matters more than it sounds: a steel adapter painted black will rust through in 18–24 months in humid or coastal climates, but this one will outlast the camera.
Technical Highlights:
- 3/4" NPT Female + 1-1/2" PS Male threads: This dual-thread design eliminates the need for separate reducer bushings, cutting installation time and reducing the number of potential leak points in the conduit run.
- 320 g weight: Light enough that a standard U-bolt bracket rated for 10 lbs is adequate; no need for overspec hardware that adds cost and visual bulk to the pole top.
- Ø 155 × 42 mm footprint: Compact enough to fit inside standard 4×4 conduit boxes on wall installations, keeping the assembly concealed and weatherproof.
Deployment Considerations:
- Thread sealant is non-negotiable — hand-tight NPT connections will weep water into the camera base if not sealed with PTFE tape or pipe dope. Budget 2–3 minutes per installation for proper sealing.
- The adapter does not include internal gaskets or o-rings; the weather seal depends entirely on the camera's base gasket and the quality of your thread sealing. Do not skip this step even on short-term deployments.
This adapter is a must-have for any warehouse, campus, or industrial facility upgrading to Vivotek outdoor domes on existing pole or conduit infrastructure. It's not glamorous, but it's the detail that separates a 10-year installation from a water-damaged camera failure in year two.
