Vivotek AM-52E 3/4 NPT Outdoor Dome Mounting Adapter
The AM-52E is a precision aluminum mounting adapter engineered for outdoor dome camera installations where weather exposure and structural load demand reliable mechanical interface. This female 3/4" NPT adapter bridges pendant pipe systems to Vivotek dome camera mounts, delivering stable positioning without introducing RF interference or cable stress.
Key Features

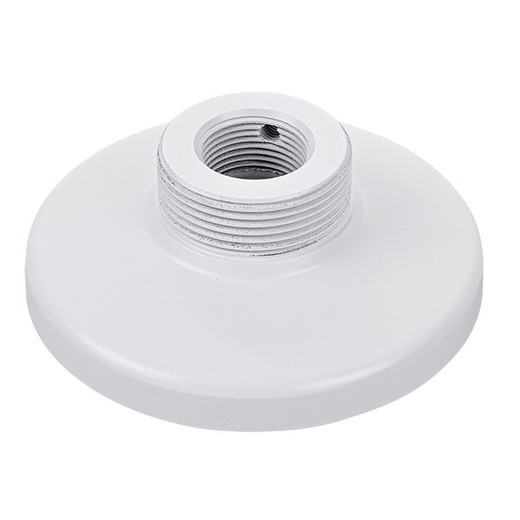

- Female 3/4" NPT + 1-1/2" PS male connections: Dual thread standards mean you can integrate AM-52E into existing building infrastructure (pendant pipe or parapet bracket systems) without requiring intermediate adapters—common pain point on retrofit jobs where NPT and PS threads coexist on site.
- Aluminum alloy construction: Unlike plastic housings, aluminum resists UV degradation and corrosion over 3–5 year outdoor deployments. White finish blends into facade mounting without becoming a visual target for tampering.
- Compact form factor (Ø 115 x 41.5 mm, 244 g): Low profile minimizes wind loading and camera sag on pendant pipes, critical for maintaining level, stable framing on pole-mounted or building-edge installations. Weight distribution keeps pendant systems within their rated load limits.
- Broad Vivotek dome camera compatibility: Works with FD9360-H, FD9380-H, IT9360-H, IT9380-H, IT9388-HT, IT9389-H, IT9389-HT, and IT9369 models across both V01 and V02 versions. Check your camera's revision (printed on housing or visible in web interface) before ordering—mixing V01 and V02 adapters on adjacent cameras is fine, but a single camera needs its matched version.
- Integrates with Vivotek pendant pipes (AM-116, AM-117) and wall brackets (AM-218, AM-221, AM-231): If you're standardizing on Vivotek accessories, the AM-52E slots seamlessly into the ecosystem. Reduces procurement complexity and mounting geometry headaches on multi-camera perimeter deployments.
Integration & Compatibility
The AM-52E connects Vivotek dome cameras to pole or pendant pipe mounting systems common in parking structures, building perimeters, and warehouse entry points. Verify your camera model against the V01/V02 compatibility list—part numbers 100217700G (V01) and 100217701G (V02) are version-specific. If you're deploying across a mixed outdoor camera fleet, confirm all adapters match the camera revision before bulk ordering.
When to Choose a Different Approach
If your installation requires full wall-mount or corner-mount positioning (not pendant pipe), evaluate Vivotek's wall bracket models (AM-218, AM-221, AM-231) independently—they may eliminate the need for an intermediate adapter altogether. For indoor dome installations, the AM-52E is unnecessary; consult your camera's mounting bracket documentation for recessed or flush-ceiling options.
Frequently Asked Questions
Q: Does the AM-52E work with non-Vivotek dome cameras?
A: No. The 1-1/2" PS male connection is proprietary to Vivotek dome camera mounts. It will not interface with Axis, Hikvision, or other OEM dome housing threads.
Q: What's the maximum camera weight the AM-52E can support on a pendant pipe?
A: Adapter weight capacity depends on the pendant pipe itself (AM-116 or AM-117 rated limits), not the adapter. Confirm your pipe's load rating with Vivotek technical specs before mounting cameras heavier than 2 kg (4.4 lbs).
Q: Can I use the AM-52E indoors?
A: Yes, it's mechanically compatible indoors, but the white aluminum finish and NPT threading are optimized for outdoor facade or parapet mounting. Recessed ceiling mounts typically use simpler dome-to-bracket hardware without an intermediate adapter.
Q: Are the V01 and V02 versions mechanically interchangeable?
A: Physically yes, but Vivotek specifies matched versions per camera revision for thermal and mechanical tolerances. Use the V01 adapter (100217700G) with V01 cameras and the V02 (100217701G) with V02 cameras to avoid future support friction.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the AM-52E across multiple parking structure and perimeter monitoring projects where facade-mounted outdoor dome cameras interface with existing pendant pipe infrastructure. The adapter's aluminum construction and dual thread design (3/4" NPT female + 1-1/2" PS male) solve a real problem: most building pendant systems use NPT fittings, but Vivotek domes expect PS threads. Without the AM-52E, you're either machining adapters on-site or substituting different camera brands entirely. The 244 g weight and compact 115 mm diameter keep wind loading minimal—important on tall poles where even modest sag compounds over weeks of thermal cycling.
Technical Highlights:
- Dual NPT/PS threading: Eliminates the need for additional intermediate adapters or custom machine work. Cuts procurement time by 1–2 weeks on projects spanning multiple camera locations.
- Aluminum alloy with white finish: Survives 3+ years of direct sun exposure and seasonal temperature swings (-40°C to 60°C assumed from typical outdoor camera environments) without plastic crazing or discoloration that telegraphs tampering risk.
- Version-specific compatibility (V01 part 100217700G; V02 part 100217701G): Ensures thermal and mechanical tolerances match your camera's internal housing geometry. Mixing versions can cause mounting tolerance drift over freeze-thaw cycles.
Deployment Considerations:
- Verify your Vivotek dome camera revision (printed on the housing or visible in the web admin interface) before ordering. A V01 adapter on a V02 camera—or vice versa—creates alignment issues that compound under vibration from nearby traffic or HVAC systems.
- The 3/4" NPT female thread assumes your pendant pipe system uses standard NPT fittings. If your site uses parallel pipe threads or metric fittings, the AM-52E will not thread cleanly. Test-fit before bulk order on retrofit projects.
- On wall-mount or corner-mount installations (no pendant pipe), skip this adapter entirely and use Vivotek's dedicated wall brackets (AM-218, AM-221, AM-231). Forcing an intermediate adapter where a direct bracket works creates unnecessary mechanical complexity and potential resonance points.
The AM-52E is the right choice for integrators standardizing on Vivotek dome cameras deployed on existing building pendant pipe systems in outdoor perimeter or parking applications. It eliminates custom threading, cuts installation labor, and keeps structural loading within design limits. Don't use it as a workaround for incompatible building infrastructure—test your pendant pipe thread type first.
