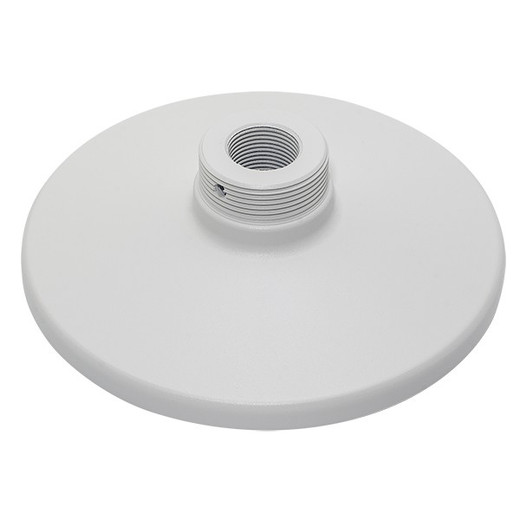

Vivotek AM-520_V05 3/4" NPT Female Thread Mounting Adapter
The Vivotek AM-520_V05 is an aluminum alloy mounting adapter engineered to simplify IP surveillance camera installation on standard NPT-threaded infrastructure. This accessory bridges the gap between Vivotek IP cameras and existing pole-mounted or enclosure-based mounting points, delivering a rigid, corrosion-resistant interface that reduces vibration and maintains precise camera positioning under field conditions.
Key Features
- 3/4" NPT female thread connection: Mates directly to standard industrial pole and enclosure threads, eliminating adapter chains and reducing installation time on retrofit projects.
- Aluminum alloy body: Weighs 841 g and resists corrosion in outdoor and coastal environments without requiring additional protective coatings — matters if your camera is mounted in salt spray or high-humidity zones where steel would degrade.
- Compact form factor (Ø 180 x 52 mm): The narrow profile fits between tight mounting locations — utility boxes, corner posts, and confined industrial spaces where larger brackets would be obstructed.
- Precision engineering: The rigid aluminum body isolates the camera from pole sway and wind-induced vibration, reducing image blur on long focal-length lens setups and stabilizing PTZ positioning.
- White finish: Blends into indoor ceilings and light-colored outdoor structures; if your deployment requires black or stainless, verify availability before ordering.
- Version 5 design (Part No. 900020104G): Optimized for current camera mounting solutions and Vivotek surveillance products, ensuring mechanical and thread compatibility with current-generation models.
Integration & Compatibility
The AM-520_V05 is specified for use with Vivotek IP cameras that support 3/4" NPT female threaded mounts. Before purchase, confirm your camera model includes an NPT male connection on its mounting foot — older or different camera brands may require a different adapter or intermediate coupling. This adapter pairs well with PoE switches and network video recorders that support Vivotek ONVIF integration, though the adapter itself is passive and does not affect electrical or data connections.
Deployment Considerations
Use the AM-520_V05 when mounting cameras to existing 3/4" NPT threaded poles, utility posts, or wall-mounted enclosures in outdoor or light industrial settings. The adapter's rigid body is not suitable for vibration isolation on high-speed machinery; if your camera must absorb mechanical shock or sustained vibration, consider a rubber-isolated mount bracket instead. For submersion or full-pressure wash-down environments, verify that your camera body has appropriate IP67+ sealing — the adapter itself does not add additional environmental protection beyond what the camera provides.
Frequently Asked Questions
Q: Is the AM-520_V05 compatible with non-Vivotek cameras?
A: Only if your camera has a 3/4" NPT male thread on its mounting foot. Thread compatibility is mechanical and not brand-specific, but camera-side mounting hardware varies. Verify your camera's mount type before ordering.
Q: What is the maximum camera weight the AM-520_V05 can safely support?
A: The adapter itself is rated for standard surveillance camera weights (typically 500g–2kg). Always refer to your camera manufacturer's mounting documentation for load limits specific to that model.
Q: Can the AM-520_V05 be used indoors?
A: Yes. The aluminum alloy and white finish suit both indoor ceiling mounts and outdoor pole installations. Corrosion risk is low indoors unless the space is highly humid or corrosive (e.g., food processing, chemical facilities).
Q: Does the AM-520_V05 come with mounting hardware?
A: The adapter itself is the mounting interface. Confirm that your camera's mounting foot includes the NPT male thread and any required washers or locking rings before installation.
Q: Is thread sealant (PTFE tape or pipe dope) recommended?
A: NPT threads are tapered and self-sealing for gas/fluid applications. For camera mounting (a dry mechanical connection), thread sealant is optional but can prevent accidental loosening. Use sparingly to avoid debris on the camera mount.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Vivotek AM-520_V05 is a straightforward mechanical adapter — no surprises, no special compatibility gotchas beyond confirming your camera's NPT mount. The 841 g aluminum body is robust enough for typical outdoor pole deployments, and the compact 180mm diameter footprint is genuinely useful when you're working in tight corner installations or retrofit scenarios where space is constrained.
Technical Highlights:
- Aluminum alloy construction: Resists oxidation in outdoor environments, avoiding the rust staining and structural weakening that steel adapters develop over 3–5 years in humid or coastal climates.
- 3/4" NPT female thread: Standard industrial thread means you can pair this with off-the-shelf threaded poles and enclosure studs without hunting for proprietary hardware. Thread engagement is mechanical — no electricity, no firmware, just solid metal-to-metal contact.
- Compact diameter (180mm): Fits into corner-post and utility-box mounting scenarios where larger bracket flanges would interfere with cable runs or adjacent equipment.
Deployment Considerations:
- The adapter is a passive mechanical interface — it adds no structural damping or vibration isolation. If your mounting pole is flexible (e.g., a thin electrical conduit), vibration transfer to the camera is unchanged. Consider a true shock-absorption bracket if you're mounting on a tall or swaying mast.
- Thread compatibility is mechanical, not magical. Verify your camera's mounting foot includes an NPT male connection. Mixing NPT with NPT-L (dryseal) or other thread standards will result in loose or cross-threaded assemblies.
Best use case: retrofit or new installations on fixed pole or wall-mounted infrastructure where standard 3/4" NPT threads are already in place. The white finish suits clean industrial and commercial environments; avoid if your site requires aesthetically neutral (black or stainless) hardware or if corrosion risk is extreme (salt spray or chemical plant) and you have budget for stainless upgrades.
