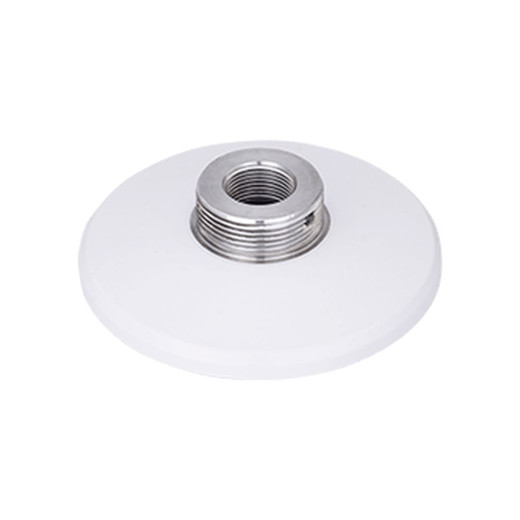

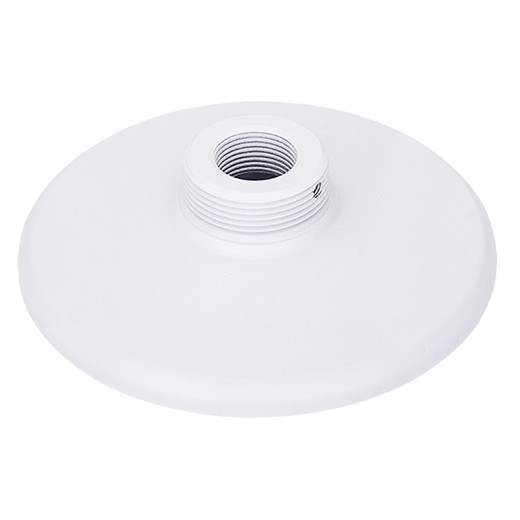

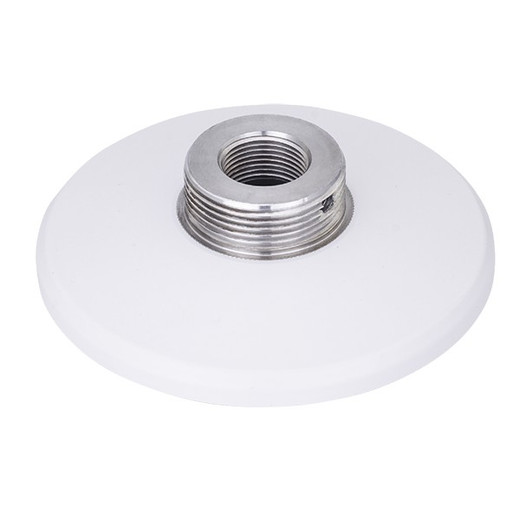

Vivotek AM-527_V02 Indoor Dome Camera Mounting Adapter
Overview
The AM-527_V02 is a mounting adapter for Vivotek indoor dome cameras, designed to interface between dome camera bodies and wall-mounted or pendant-pipe installations. Built from polycarbonate and AL6063 aluminum alloy, it provides a compact interface (Ø 136 × 35 mm) that connects standard NPT and PS male threads on mounting hardware to female dome camera housings. This is the part you need when integrating a Vivotek indoor dome into a wall bracket or ceiling-drop configuration that does not have a direct camera thread match.
Compatibility
The AM-527_V02 carries dual thread connections: 3/4" NPT Female and 1-1/2" PS Male. This enables compatibility with Vivotek pendant pipes (AM-116, AM-117) and wall mount brackets (AM-218, AM-221). Confirm thread compatibility with your specific camera housing and mounting bracket before purchase — thread mismatch is the most common installation failure. The adapter supports multiple Vivotek dome camera models across the indoor surveillance line; consult the camera's installation guide to verify this adapter is the correct interface for your model.
Installation Notes
The adapter's compact profile is intended for discreet indoor ceiling or wall mounting where aesthetic integration matters. Aluminum and plastic materials limit this adapter to indoor, climate-controlled environments (typical commercial office, retail, educational interiors). Do not install outdoors or in high-humidity or chemical-exposure areas — UV and moisture will degrade the polycarbonate. Ensure mounting threads are clean and free of debris before assembly to prevent cross-threading. Weight is 140 g, so any wall or ceiling bracket must independently support the full weight of the camera head plus this adapter.
What's in the Box
- 1x AM-527_V02 mounting adapter
