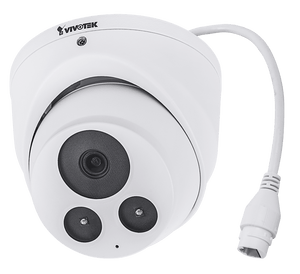

Vivotek IT9380-HF3 (5MP) Outdoor WDR Pro Night Vision IR Turret IP Camera

MSRP: $298.08

Add to Cart for Sale Price!

$209.99
Adding to cart… The item has been added
SKU: IT9380-HF3
UPC: 4710469350771
Availability: Usually Ships Same Business Day
Warranty: 2-Year Warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Vivotek IT9380-HF3 (5MP) Outdoor WDR Pro Night Vision IR Turret IP Camera

MSRP: $298.08

Add to Cart for Sale Price!

$209.99
Description

The Vivotek IT9380-HF3 is a cutting-edge 5MP Outdoor WDR Pro Night Vision IR Turret IP Camera that delivers unparalleled video surveillance performance in diverse outdoor environments. Equipped with a 5-megapixel sensor, this camera captures exceptionally clear and detailed images, making it ideal for security applications where high resolution and precise imagery are paramount. Its advanced WDR Pro technology ensures that the camera produces balanced images in all lighting conditions, from bright sunlight to complete darkness, thanks to its powerful IR illuminators that extend up to 30 meters. This makes the IT9380-HF3 perfect for monitoring large outdoor areas like parking lots, public squares, and commercial properties.

Key Features:

  • 5MP High-Resolution Imaging: Ensures sharp, detailed video footage ideal for identification purposes.
  • WDR Pro Technology: Offers exceptional clarity in environments with contrasting light conditions.
  • IR Night Vision: Effective up to 30 meters, providing reliable surveillance in total darkness.
  • H.265 Compression: Reduces bandwidth and storage needs without compromising video quality.
  • Smart Stream III: Further optimizes bandwidth and storage efficiency.
  • Weather-Proof Design: IP66-rated casing that protects against rain, dust, and extreme temperatures.
  • PoE Support: Simplifies wiring and installation by combining power and network connectivity into a single cable.
  • Motion Detection and Tampering Alarm: Enhances security with instant alerts on any movement or camera interference.

Compatibility:

  • Network Connectivity: Supports Ethernet with PoE for easy integration with existing network infrastructure.
  • Storage Options: Compatible with MicroSD/SDHC/SDXC cards for edge storage solutions.
  • System Integration: Seamlessly works with Vivotek’s VAST 2 or other major video management systems (VMS).

Package Contents:

  • Vivotek IT9380-HF3 Camera
  • Mounting Bracket
  • Waterproof Connector
  • Alignment Sticker
  • Quick Installation Guide
  • Screws and Wall Plugs
  • Software CD
  • Warranty Documentation

Summary: The Vivotek IT9380-HF3 stands out for its superior image clarity, robust design, and advanced night vision capabilities, making it an excellent choice for outdoor surveillance. Its comprehensive feature set, including WDR Pro and efficient H.265 compression, ensures that this camera is highly effective in various lighting conditions and economical in terms of bandwidth and storage usage. Designed for durability and performance, the IT9380-HF3 is the ideal surveillance solution for businesses that demand high-quality security monitoring.

Specifications
Model: IT9380-H (3.6mm)
CPU: Multimedia SoC (System-on-Chip)
Flash: 128 MB
RAM: 512 MB
Image Sensor: 1/2.7" Progressive CMOS
Max. Resolution: 2560x1920 (5MP)
Lens Type: Fixed-focal
Focal Length: IT9380-H (3.6mm): f = 3.6 mm
Aperture: F2.0
Iris Type: Fixed iris
Field of View: IT9380-H (3.6mm): 76° (Horizontal); 59° (Vertical); 100° (Diagonal)
Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Pro
Day/Night: Yes
Removable IR-cut Filter: Yes
IR Illuminators: Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination: 0.03 lux @ F2.0 (Color);
Pan Range: 360°
Tilt Range: 70°
Rotation Range: 360°
Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 20 fps @ 2560x1920
Maximum Streams: 3 video streams (Up to 8 configurable profiles)
S/N Ratio: IT9380-H (3.6mm): 67 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings: General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment
Audio Capability: One-way Audio
Audio Compression: G.711,.726
Audio Interface: Built-in microphone
Effective Range: 5 meters
Users: Live viewing for up to 10 clients
Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF: Profile, S, T supported, specification available at www.onvif.org
Video Motion Detection: Five-window video motion detection
VADP Package: Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action: Event notification via email, HTTP, FTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP, NAS server, SD card
Connectors: RJ-45 cable connector for 10/100Mbps Network/PoE connection
Power Input: IEEE 802.3af PoE Class 2
Power Consumption: Max. 6 W/3.31 W (IR on/off)
Dimensions: Ø 105 x 82.5 mm
Weight: 475 g
Certifications: EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66
Operating Temperature: Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F); Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Humidity: 0.9
Operating System: Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above; Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above
Packing Contents: Quick installationuide, alignment sticker, screw pack, cableland
