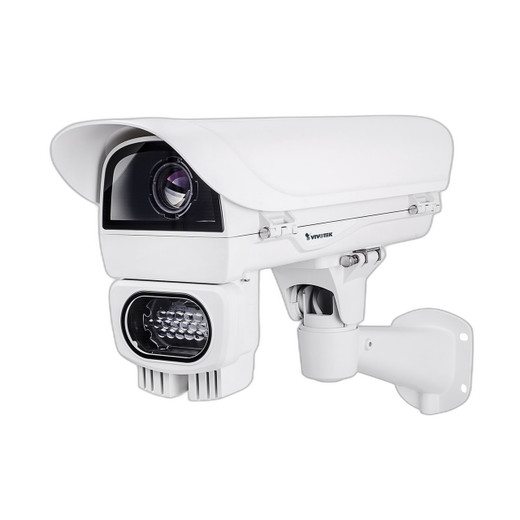

Vivotek IP9165 LPRKIT S 2MP 40mm Lens Outdoor License Plate Recognition Kit

Vivotek IP9165 LPRKIT S 2MP 40mm Outdoor License Plate Recognition Kit

The Vivotek IP9165 LPRKIT S is a professional-grade outdoor license plate recognition system engineered for high-speed vehicle capture and identification. Designed for parking facilities, toll plazas, access control gates, and traffic enforcement, this dual-lane capable kit delivers consistent, accurate plate recognition in demanding outdoor environments with embedded ANPR software and intelligent IR illumination.

Key Features

• 2MP resolution with specialized 40mm lens optimized for license plate clarity
• Dual-lane capture capability with 3.5–4M suggested width per lane
• Vehicle speeds up to 60 MPH (90 km/hr) with adaptive shutter speeds from 1/1,000 to 1/10,000 sec
• Up to 35-meter capture range for reliable identification at distance
• Embedded Vivotek ANPR software for automated plate recognition and processing
• 48W adaptive IR illuminator with remote control beam angle adjustment (10°–30°)
• IP68 weatherproof and IK10 vandal-resistant housing for outdoor durability
• H.265 video compression with 4 simultaneous streams at 30fps
• Smart thermal management: 0°C–60°C operating range with optional cold start heater
• Remote Back Focus (RBF) system for precise lens calibration

Technical Specifications

• Illumination & Night Vision: 48W IR illuminators with automatic threshold control (300–600 lux, RS485 configurable); five-window motion detection; day/night and anti-overexposure modes
• Power & Connectivity: Dual power input (AC 24V or DC 24V); max 78W consumption (IR on) / 30W (IR off); wired network via RJ-45 PoE connector; RS485 serial interface; dual digital I/O; BNC video output
• Protocols & Standards: IPv4/IPv6, RTSP/RTP, HTTP/HTTPS, FTP/FTPS, ONVIF, DHCP, DDNS, SNMP, 802.1X, UPnP; Profile G/S compliant; Trend Micro IoT Security integration
• Analytics & Triggers: Motion detection, audio detection, camera tampering, digital inputs, manual triggers, periodic events; outputs via email, HTTP, FTP, NAS, SD card, push notification
• Build Quality: Weatherproof IP68 rating; vandal-proof IK10 housing; 6.2 kg weight; operating humidity tolerance 0.9
• Browser & OS Support: Chrome 58+, Internet Explorer 10/11; Windows 7/8; Mac 10.12 (Chrome only); VLC 1.1.11+
• Certifications: CE, LVD, FCC Class B, VCCI, C Tick, UL

Applications

• Toll plazas and highway revenue enforcement
• Parking facility entrance/exit monitoring and access control
• Gated community security and vehicle identification
• Fleet management and vehicle tracking
• Law enforcement and stolen vehicle detection
• Traffic control and congestion management

Jerry Tildsen

The IP9165 LPRKIT S combines optical precision with intelligent software to deliver reliable plate recognition across variable lighting and weather conditions. The 40mm lens and 2MP sensor provide the focal length and resolution necessary for readable character capture at typical enforcement distances. The adaptive 48W IR illuminator with remote beam control ensures consistent night-time performance without overexposure artifacts.

Dual-lane capability and support for vehicle speeds up to 60 MPH make this system suitable for both controlled-access and open-road environments. The embedded Vivotek ANPR engine eliminates dependency on external recognition servers, improving latency and privacy. Event-triggered storage (SD card, NAS, or email) and multiple output protocols enable straightforward integration into existing security and traffic management systems.

IP68/IK10 construction and wide operating temperature range (with optional heater) ensure year-round reliability in harsh outdoor conditions. For organizations requiring field-proven, vendor-supported LPR infrastructure, this kit represents a complete, engineering-grade solution.
