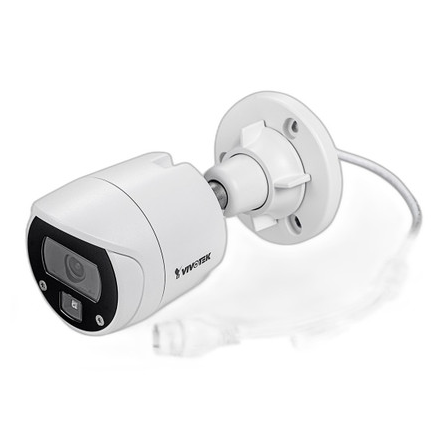

Model:
IB9369 (3.6mm)
CPU:
Multimedia SoC (System-on-Chip)
Flash:
256 MB
RAM:
256 MB
Image Sensor:
1/3.1" Progressive CMOS
Max. Resolution:
1920x1080 (2MP)
Lens Type:
Fixed-focal
Focal Length:
IB9369(3.6mm): f = 3.6 mm
Aperture:
IB9369(3.6mm): F2.2
Iris Type:
Fixed iris
Field of View:
IB9369(3.6mm): 90° (Horizontal); 49° (Vertical); 106° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Enhanced
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
Minimum Illumination:
IB9369(3.6mm): 0.1 lux @ F2.2 (Color);
Tilt Range:
90°
Rotation Range:
180°
Pan/Tilt/Zoom Functionalities:
ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 1920x1080
Maximum Streams:
2 video streams (Up to 7 configurable profiles)
S/N Ratio:
59 dB
Dynamic Range:
WDR Support
Video Streaming:
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile, S, T supported, specification available at www.onvif.org
Smart Motion Detection:
Five-window video motion detection, people detection, vehicle detection, time filter
VADP Package:
Smart Motion Detection
Event Trigger:
Camera tampering detection, Manual trigger,Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot
Event Action:
Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP, SFTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator:
System power and status indicator
Power Input:
IEEE 802.3af Class 0 PoE, DC 12V; (Simultaneous Power Redundancy Supported)
Power Consumption:
PoE: Max. 6.49W/4W (IR on/off); DC 12V: Max. 5.1W/3.4W (IR on/off)
Dimensions:
Ø 91.1 x 181.5 mm
Weight:
671 g
Certifications:
EMC: CE (EN55032 Class A, EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7, RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471, IEC/EN 60950-22); IA: BIS (IS 13252)
Operating Temperature:
Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F); Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off); -30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity:
95% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, alignment sticker, screw pack, cableland
