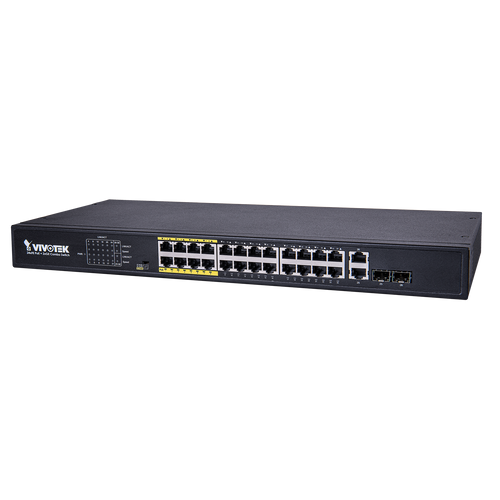

Vivotek AW-FGT-260D-380 AW-FGT-260D-380 24-Port PoE Switch
Vivotek AW-FGT-260D-380 AW-FGT-260D-380 24-Port PoE Switch
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: AW-FGT-260D-380
UPC: 4710469351679
Condition: New
Availability: Usually ships in 24 hours
Warranty 2 Year Warranty
Write a Review 36% OFF
Vivotek

Vivotek AW-FGT-260D-380 24-Port PoE Switch

Discontinued — No Longer Available NewThis model has been discontinued by Vivotek. Shop current Vivotek products → or see the recommended alterna…

$561.60 $359.99 SAVE $202
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Vivotek AW-FGT-260D-380 24-Port PoE Switch

$561.60
$359.99
Add to Cart

Overview

SKU: AW-FGT-260D-380
UPC: 4710469351679
Condition: New
Availability: Usually ships in 24 hours
Warranty 2 Year Warranty

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Discontinued — No Longer Available New

This model has been discontinued by Vivotek. Shop current Vivotek products → or see the recommended alternatives below.

Vivotek AW-FGT-260D-380 24-Port PoE Switch

The Vivotek AW-FGT-260D-380 is a robust unmanaged Fast Ethernet PoE+ switch designed for IP surveillance and networked security deployments. With 24 PoE ports and a generous 380W total power budget, this switch delivers reliable power and data connectivity to support extensive camera networks and other PoE-compatible devices in demanding surveillance environments.

Key Features

  • 24 x 10/100Mbps PoE Ports – Powers and connects up to 24 IP cameras or compatible devices
  • 2 x Gigabit RJ45/SFP Combo Uplink Ports – High-speed backbone connectivity
  • 380W Total PoE Power Budget – Supports simultaneous operation of multiple high-power devices
  • 8 Extended-Range PoE Ports (250M@10Mbps) – Extended distance capability for remote installations
  • Unmanaged Operation – Plug-and-play deployment with zero configuration required
  • VLAN Support – Network segmentation for enhanced security and traffic management
  • IEEE 802.3af/at Compliance – Standards-based power delivery with auto-detection
  • PoE Surge Protection – 6KV contact / 8KV air rating protects connected devices
  • Auto-MDI/MDI-X & Auto-Negotiation – Automatic port adaptation for seamless connectivity

Technical Specifications

  • Switching Capacity: 8.8 Gbps
  • Packet Forwarding Rate: 6.5 Mpps
  • MAC Address Table: 16K entries
  • Max PoE Output: 30W per port (55VDC)
  • Power Input: AC 100–240V, 50/60Hz, 5A (Max)
  • Operating Temperature: 0°C to 50°C
  • Dimensions: 440 x 207 x 44 mm | Weight: 3.25 kg
  • MTBF: >50,000 hours
  • Certifications: CE, FCC, VCCI, LVD
  • Warranty: 24 months

Applications

  • Enterprise IP surveillance systems with multiple HD cameras
  • Outdoor perimeter security and access control networks
  • Retail and commercial facility monitoring
  • Campus and building-wide networked camera deployments
  • Industrial IoT and networked device infrastructure
Jerry Tildsen
Jerry Tildsen

The AW-FGT-260D-380 strikes an effective balance between simplicity and capability for mid-to-large surveillance installations. Its unmanaged architecture eliminates configuration overhead while the robust 380W power budget accommodates modern high-resolution IP cameras and dual-feed devices simultaneously. The extended-range PoE capability on 8 ports extends deployment flexibility for cameras located beyond standard 100-meter limits.

Built-in surge protection (6KV/8KV) safeguards expensive camera equipment in lightning-prone environments. The dual Gigabit uplink ports provide sufficient bandwidth for video streaming while the 16K MAC table supports enterprise-scale deployments. With MTBF exceeding 50,000 hours and industrial-grade construction rated for 0–50°C operation, this switch delivers reliable performance in both controlled indoor spaces and demanding outdoor installations.

The absence of management features keeps operational costs low and minimizes network complexity—ideal for organizations prioritizing straightforward, maintainable surveillance infrastructure.

Expert Analysis
Specifications
Model: AW-FGT-260D-380
Short Highlight: 24xFE PoE + 2xGE Combo Unmanaged Switch
10/100Mbps RJ45 PoE Port: 24
Gigabit RJ45/SFP Combo Ports: 2
EX Mode PoE Ports (250M@10Mbps: 8
VLAN Mode: Supported
Switching Capacity: 8.8 Gbps
Mac Table: 16 K
Packet Forwarding Rate: 6.5Mpps
Auto-MDI/MDI-X, Auto-Negotiation: Supported
Power Input Voltage: AC 100 ~ 240V, 50/60Hz 5A (Max)
Max. PoE Output Power: Per Port 55VDC, Max. 30W
Total PoE Power Budget: 370W
IEEE 802.3af/at: Supported
Power Pin Assignment: 1/2(+), 3/6(-)
PoE PD Auto Detection: Supported
PoE Surge Protection: Contact 6KV, Air 8KV
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10% to 90% non-condensing
MTBF: >50000 hours
Dimensions: 440 (L) x 207 (W) x 44 (H) mm
Weight: 3.25 KG
Warranty: 24 Months
EMC: CE, FCC, VCCI, LVD
Type: Switch
Product Type: Switch
Connectivity: Wired
Power Type: PoE+
Housing Color: White
