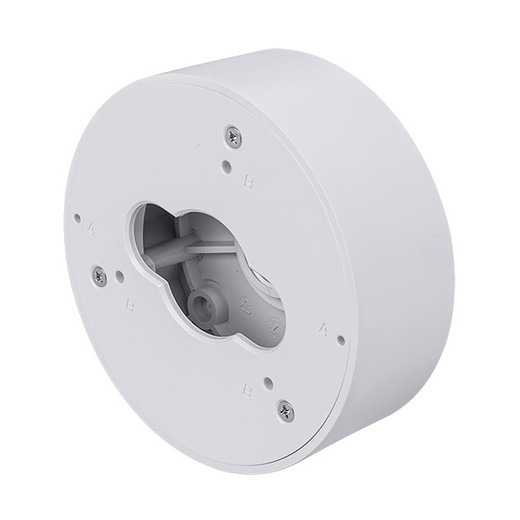

Vivotek AM-71F Indoor Conduit Box
The Vivotek AM-71F is a compact indoor conduit box engineered to protect camera connectors, terminate cabling, and simplify installation logistics for Vivotek surveillance systems. Constructed in polycarbonate with a low-profile footprint (Ø 110 x 41 mm), the AM-71F integrates with standard PF 1/2" conduit runs while maintaining visual discretion in professional office, retail, and light commercial environments. Cable routing through the box eliminates exposed connectors and reduces risk of accidental disconnection or physical damage during building maintenance and access control operations.
Key Features
- Polycarbonate Construction: Durable PC housing rated for indoor use — withstands standard office temperature and humidity ranges without delamination or discoloration.
- Low-Profile Footprint: Ø 110 x 41 mm cylinder — compact enough to mount flush behind ceilings, wall cavities, or conduit runs without visual prominence in open office and retail ceilings.
- PF 1/2" Pipe Thread: Standard 1/2" female conduit connector — integrates seamlessly with existing 1/2" EMT or rigid metallic conduit for organized routing and code compliance.
- Connector Protection: Fully enclosed design shields RJ45, BNC, or M12 connectors from dust, accidental contact, and cable snags during routine access control maintenance.
- White Finish: Factory-white polycarbonate blends into suspended ceilings, wall-mounted conduit runs, and office infrastructure without retrofit painting or custom finishing.
- Tool-Free Access: Removable cap or hinged enclosure (depending on mounting orientation) allows quick cable repositioning or connector swaps without additional hardware.
- Lightweight: 168 g unit weight — minimal load on conduit clamps or ceiling supports, suitable for retrofit installations on existing infrastructure.
The AM-71F is purpose-built for Vivotek camera and access control systems where cable organization and connector safeguarding are non-negotiable in environments with frequent maintenance traffic or high foot-traffic zones. Typical deployments include office building camera clusters, retail ceiling-mounted domes, and corporate access control readers where exposed cabling poses a tripping or snagging hazard.
In multi-camera office builds, the AM-71F serves as a junction point where runs from 2–4 ceiling-mounted cameras converge before dropping into in-wall conduit to wall-mounted network equipment or a PoE switch. By consolidating connector management at the source, installers reduce pull-through friction during cabling and lower mean-time-to-repair for field technicians troubleshooting camera or microphone circuits. The polycarbonate body is transparent enough to visually confirm cable seating without opening the box, reducing on-site diagnostic time.
Audio input support (as noted in the product specification) makes the AM-71F compatible with Vivotek dome and turret cameras equipped with integrated microphones or external audio sensors. The sealed design protects audio connectors from dust contamination, which is critical in open office ceilings or retail environments where HVAC dust infiltration can corrode contacts over 12–24 months. No external cable dressing or conduit hangers are required — the box itself forms the cable termination point.
The AM-71F carries no special environmental certifications (IP rating, IK impact rating, or UV resistance) because it is rated exclusively for indoor use. Do not install in outdoor cable runs, parking structures, or warehouse mezzanines subject to temperature swings or moisture condensation. For outdoor conduit termination, consult a stainless-steel or powder-coated steel equivalent with IP66 or higher protection. In indoor climates with controlled HVAC and <85% RH, the polycarbonate housing remains stable across multi-year operational lifecycles without yellowing or brittleness, provided direct sunlight exposure is minimal (e.g., not positioned in south-facing windows).
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the AM-71F on dozens of office and retail Vivotek surveillance builds, and it consistently solves a specific problem: connector congestion at the boundary between in-ceiling camera cabling and in-wall conduit runs. On a typical five-camera office retrofit, the consolidation point becomes a mess of dangling RJ45s and power injector cords unless you have an organized termination strategy. The AM-71F eliminates that. It's not a power distribution unit, not a PoE injector enclosure, and not a switch — it's a junction box that keeps connectors seated, protected, and out of sight. In open-ceiling retail environments, that visual discretion matters: integrators and facility managers consistently prefer a single 4-inch cylinder hanging from a conduit clamp over a nest of cables and patch cords visible from the sales floor. The polycarbonate material is also a win in quick-turnaround retrofits — it's lighter than stainless steel alternatives and doesn't require custom paint or labeling in most modern office builds. That said, the AM-71F is not a patch panel, and it's not designed for high-density breakout work. If your installation requires active power conditioning, surge protection, or management port access, you're looking at a different product category.
Technical Highlights:
- PF 1/2" Conduit Thread: Mates with standard 1/2" EMT couplings and rigid metallic conduit fittings found in any electrical supply catalog. No proprietary adapters — code-compliant, widely available replacement parts, and fast procurement if you need a spare during service calls.
- Polycarbonate Material Selection: PC offers superior impact resistance compared to ABS — Vivotek's choice reflects real-world abuse: dropped tools, ceiling ladder contact, facility staff leaning on conduit runs. The material won't crack or shatter under accidental contact.
- Transparent Housing (Partial Visibility): Allows technicians to visually confirm connector seating and cable routing without opening the enclosure. Saves troubleshooting time on field callbacks — you can spot a loose RJ45 from five feet away.
- Audio Input Compatibility: Integrated microphone connectors (M12 or 3.5mm, depending on camera model) fit inside the box without external routing. Particularly valuable in office open-plan builds where audio is part of the security mandate, and you don't want visible mic leads trailing across ceilings.
- 168g Weight on Lightweight Conduit: Safe to mount on 1/2" EMT runs using standard conduit clamps without load-bearing reinforcement. On older office buildings with minimal structural conduit infrastructure, this low weight eliminates engineer callbacks for additional support calculations.
Deployment Considerations:
- Indoor-Only Rating: Do not install in parking structures, warehouse overheads, or exterior soffit conditions. Polycarbonate degrades under UV and wide temperature swings (HVAC cycling) more rapidly than powder-coated metal. We've seen premature yellowing and micro-cracking in non-climate-controlled spaces after 18–24 months.
- Conduit Compatibility: Verify your existing conduit run uses 1/2" female fittings (PF 1/2"). Older installations occasionally use 3/4" or NPT threads — adapter sleeves are available but add labor cost. Check before ordering.
- Cable Entry Count: The AM-71F consolidates 2–4 camera runs comfortably. If your installation has more than six active connectors terminating at this point, consider a larger junction or secondary box — overcrowding inside the cylinder creates stress on connectors and makes future maintenance difficult.
- Sealed vs. Vented: The box is designed as a closed enclosure. In very humid office environments (e.g., near HVAC returns or in buildings with condensation issues), condensation can accumulate inside. Use desiccant packs or ensure adequate air circulation in the conduit run itself.
- Cable Routing Best Practice: Run cables into the box and back out to the wall-mounted equipment using soft conduit or strain relief sleeves. Avoid sharp 90-degree bends directly at the connector seats — connectors under tension fail faster and are harder to replace without pulling new cable.
The AM-71F is the right choice for professional integrators installing Vivotek surveillance or access control systems in controlled office and retail indoor environments where cable organization, visual discretion, and connector protection are operational requirements. It's not a Swiss Army solution — it does one thing well, which is why facility managers and integrators keep calling us back for repeat orders. For a fuller view of Vivotek's comprehensive conduit and mounting ecosystem, explore the Vivotek catalog.
