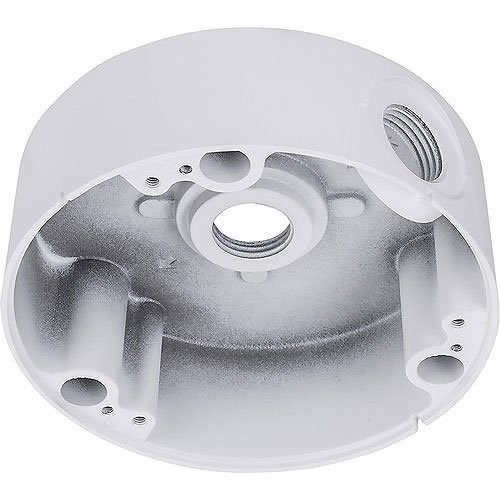

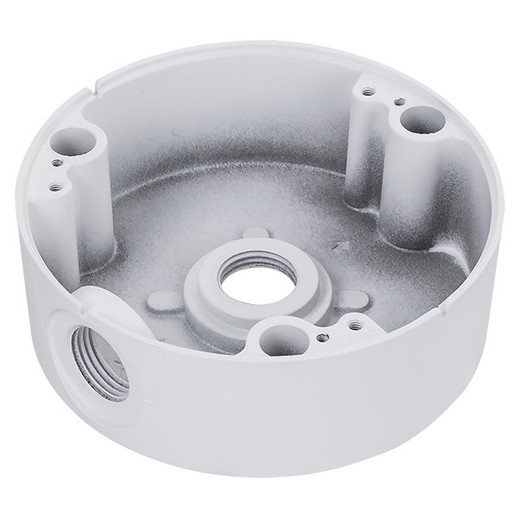

Vivotek AM-71D Aluminum Outdoor Conduit Box

Vivotek AM-71D Aluminum Outdoor Conduit Box

The Vivotek AM-71D is a compact aluminum conduit box engineered for outdoor surveillance installations where cable routing and environmental protection are non-negotiable. Designed specifically to integrate with Vivotek FD9360-H and FD9380-H camera models, this accessory solves a real deployment problem: protecting cable runs and terminations from weather, UV exposure, and mechanical stress in exposed outdoor environments.

Key Features

• Aluminum Alloy Construction — White finish resists corrosion in rain, salt air, and temperature cycling. Aluminum costs less than stainless steel while delivering solid outdoor durability for 5–10 year deployments; skip this if you're working in coastal salt-spray zones (consider stainless alternatives in those cases).
• Compact Form Factor (Ø 117 x 40 mm) — Minimal visual footprint reduces the "camera can" appearance on building facades and perimeter installations. Low profile also keeps cable bends within safe strain limits, reducing connector fatigue over time.
• 1/2" PF Pipe Thread Connection — Standard conduit integration means you can run rigid or flexible conduit directly through the box, protecting cable from UV and mechanical abrasion. This is the industry-standard thread size for most outdoor camera mounting poles and conduit systems, so compatibility with existing infrastructure is not a concern.
• Optimized for FD9360-H and FD9380-H — The AM-71D is sized and configured specifically for these fixed-dome models. Fit and cable routing are validated by the manufacturer; no guesswork or custom drilling required during installation.
• Lightweight (240 g) — Easy for a single technician to position and secure during pole-top or wall-mount installations. Low weight also reduces load on conduit and mounting brackets, particularly important for slender pole mounts where leverage can induce sag.
• Professional Appearance — White color coordinates with typical building exteriors, perimeter enclosures, and pole-mounted infrastructure, keeping the surveillance footprint visually discrete.

Integration & Compatibility

The AM-71D integrates directly with Vivotek's FD9360-H and FD9380-H outdoor camera line. Installation involves securing the box to a conduit stub or pole mount, routing power and network cable through the 1/2" thread, and sealing terminations inside the weatherproof enclosure. The box provides space for RJ-45 connectors, power breakouts, and basic cable strain relief — typical for outdoor fixed-dome deployments on poles, building soffits, or fence posts.

Compatible installations include perimeter monitoring, parking lot coverage, building exterior surveillance, and gate/access point imaging where cable runs are exposed to sun, rain, and mechanical vibration. The conduit thread accommodates standard 1/2" rigid or EMT conduit, integrating into larger structured cabling frameworks.

Frequently Asked Questions

Q: Can I use the AM-71D with other Vivotek camera models?

A: The AM-71D is engineered and validated for FD9360-H and FD9380-H cameras. Using it with other models may result in poor fit, restricted cable routing, or unsupported mounting. Check the compatibility list in the datasheet or contact the manufacturer for alternative conduit boxes if you're deploying different camera models.

Q: What is the maximum cable gauge the AM-71D will accommodate?

A: The evidence does not specify internal volume or cable gauge limits. Contact the camera manufacturer or distributor with your specific cable bundle (gauge, count, connector type) to confirm fit before ordering.

Q: Is the AM-71D waterproof, or just weather-resistant?

A: The box is aluminum construction suitable for outdoor rain and dust exposure. The evidence does not state a formal IP rating (like IP66 or IP67) for the conduit box itself. Confirm water-ingress protection by reviewing the datasheet or consulting the manufacturer if your installation requires full submersion or jet-spray resistance.

Q: Can I mount the AM-71D horizontally or only vertically?

A: The evidence does not specify orientation constraints. Confirm mounting orientation (horizontal, vertical, or both) with the datasheet or manufacturer to ensure cable strain relief and drainage are optimized for your pole or wall configuration.

Q: What is the operating temperature range for the AM-71D?

A: The evidence does not list operating or storage temperature specifications for the conduit box. If your deployment is in extreme cold or heat (below -20°C or above 60°C), consult the datasheet to confirm material performance.

Q: Does the AM-71D come with conduit adapters or cable glands?

A: The AM-71D includes the box and 1/2" pipe thread connector. Cable glands, conduit reducers, or weather seals are not detailed in the product specification. Plan to source these separately based on your cable gauge and termination requirements.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AM-71D is a straightforward accessory solving a specific integration problem: cable protection and strain relief for FD9360-H and FD9380-H outdoor dome cameras. At 240 grams and dimensioned Ø 117 x 40 mm, it's compact enough not to draw attention on a pole-mounted installation, yet large enough to accommodate standard RJ-45 terminations and power breakouts without excessive cable bending. The 1/2" PF thread is the critical spec here—it's the industry standard for outdoor camera pole conduit, so integration into existing infrastructure is friction-free.

Technical Highlights:

• Aluminum Alloy + White Finish: Corrosion resistance without stainless-steel cost; suitable for typical outdoor rain and UV cycles. Avoid this in high-salt-spray environments (coastal zones)—upgrade to stainless steel for those deployments.
• 1/2" PF Pipe Thread: Standard conduit size means you're not hunting for adapters or custom fittings. Fits rigid EMT, flexible conduit, and most commercial pole-mount systems without modification.
• Compact Ø 117 x 40 mm Form Factor: Keeps visual footprint small on building soffits and fence posts. Lower profile also reduces cable strain—no sharp bends around bulky hardware.

Deployment Considerations:

• The AM-71D is validated only for FD9360-H and FD9380-H. Forcing it onto other dome models wastes time during commissioning and risks poor cable management or loose connectors.
• Water-ingress protection is not formally rated in the evidence (no IP66 or IP67 specification for the box itself). If your site has jet-wash or standing water exposure, confirm sealing specs before deploying.
• Cable glands and conduit reducers are not included—budget for RJ-45 weather seals and adapters based on your specific cable gauge and pole routing.

The AM-71D is purpose-built for pole-mount and wall-soffit deployments of Vivotek's fixed-dome outdoor line. It's not a generic solution; it's a matched-pair accessory. Deploy it only where FD9360-H or FD9380-H cameras are specified, and confirm water-sealing and cable-gauge fit before site visit.
