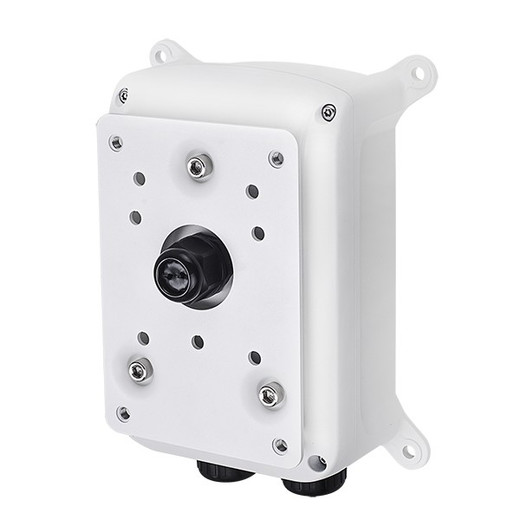

Vivotek AM-718 Aluminum Junction Box
The Vivotek AM-718 is a purpose-built aluminum junction box engineered to protect electrical and network connections in outdoor surveillance deployments. If you're installing speed dome cameras in harsh environments, this enclosure handles cable management and connector protection where temperature swings, rain, dust, and potential impact are operational realities.
Key Features
- IP67 Weatherproof Rating: Dust and water ingress are sealed out completely — meaning you can deploy this in direct rain, high-moisture perimeter environments, or coastal locations without worrying about connector corrosion or short circuits affecting your camera feed.
- IK10 Impact Resistance: Rated to withstand 20 joules of impact force — vandalism, accidental strikes from ladders or equipment, and rough handling during installation won't compromise the enclosure. This matters in high-traffic or accessible outdoor sites.
- Aluminum + SPCC Steel Construction: Aluminum body resists corrosion in salt-air and industrial environments; steel reinforcement at stress points prevents deformation. Combined, they deliver longevity without the weight penalty of solid steel.
- Compact Dimensions (255 × 200 × 130 mm / 10.0 × 7.9 × 5.1 in): Small footprint minimizes visual obstruction and keeps installation clean on poles, walls, or corners without dominating the mounting surface.
- Lightweight at 2.02 kg (4.5 lbs): Low mass simplifies single-person mounting on poles or wall brackets and reduces stress on mounting hardware, extending bracket life and lowering installation labor time.
- White Finish: Discrete appearance blends into typical outdoor infrastructure — less likely to draw attention than black or metallic boxes.
Integration & Compatibility
The AM-718 mounts directly with Vivotek wall, pole, and corner bracket systems. Designed specifically to house cable connections and terminal blocks for Vivotek speed dome models including the SD9161-H-v2, SD9361-EHL, and SD9364-EHL. Verify mounting orientation with your specific bracket type before installation — junction box placement affects cable routing and heat dissipation.
Interior volume accommodates standard RJ-45 connectors, power terminals, and intermediate cable runs without requiring external strain relief. Ensure cable entries are sealed with appropriate glands or plugs to maintain the IP67 rating after installation.
Deployment Scenarios
Perimeter fencing installations, parking lot PTZ mounts, and industrial facility rooftop deployments all benefit from this enclosure. Anywhere your speed dome sits at the end of a long cable run in an outdoor environment, the AM-718 protects the transition point from camera to fixed infrastructure — the weak link in weather-exposed systems. The IK10 rating makes it suitable for accessible mounting heights where accidental impact is likely.
What's in the Box
Box only — mounting hardware and cable glands are sourced separately based on your bracket type and cable diameter requirements.
Frequently Asked Questions
Q: Does the AM-718 come with cable glands?
A: No. Cable entry glands are ordered separately to match your cable diameters. This approach avoids waste and ensures you get the correct sizes for your installation.
Q: What mounting systems does the AM-718 work with?
A: Vivotek wall, pole, and corner mounts. Confirm your specific mount model is compatible before ordering — adapter plates may be needed for non-standard installations.
Q: Is the AM-718 suitable for coastal or salt-air environments?
A: Yes. Aluminum construction with corrosion-resistant properties handles salt-air better than uncoated steel, though periodic rinse-off is still recommended for maximum longevity in extreme salt-spray zones.
Q: Can I leave the AM-718 open or must I seal all entry points?
A: To maintain IP67 rating, all unused cable entries must be plugged. Leaving ports open voids the weatherproof protection.
Q: Does the AM-718 provide surge or lightning protection?
A: No. This is a mechanical enclosure only. Surge protection must be installed separately inside or upstream of the junction box.
Q: What is the interior volume available for cable management?
A: Interior space is sized for terminal blocks and standard RJ-45 connectors on speed dome installations. Verify cable bundle size against the 255 × 200 × 130 mm cavity before installation to avoid pinching or damage.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Vivotek AM-718 does one thing very well: it protects the cable termination point on outdoor speed dome installations where environmental stress would otherwise degrade connections and shorten system life. The IP67 rating is critical here — it's the difference between a junction box that sheds rain and one that traps moisture inside.
Technical Highlights:
- IP67 + IK10 combination: Together, these mean the AM-718 tolerates both weather exposure and physical punishment without sacrificing weather-sealing. Most junction boxes offer one or the other; this delivers both.
- Aluminum construction at 2.02 kg: Light enough for single-person mounting on pole brackets, yet rigid enough to handle the tensioning loads from multiple cable connections without flexing or deforming the mounting interface.
- 255 × 200 × 130 mm form factor: Sized specifically for speed dome terminal blocks and connector density — not oversized, which keeps visual signature low and mounting options flexible on tight infrastructure.
Deployment Considerations:
- Cable glands are not included — you'll source these separately based on cable diameter. This adds a minor lead-time item to your BOM but ensures you get the correct fit without overstocking.
- IP67 protection requires all unused entry ports to be sealed. Leaving holes open invalidates the rating; plan your cable layout before installation and plug unused entries.
- This is a mechanical enclosure only — it does not provide surge or lightning protection. If your site is exposed to electrical strikes or surges, install a separate SPD inline or at the power entry point.
Best suited to perimeter installations, rooftop PTZ mounts, and industrial facility deployments where a speed dome is fixed to a pole or wall and must endure direct rain, salt-air, or incidental impact without compromising the camera feed. If your deployment is in a protected alcove with minimal weather exposure, a smaller utility box may suffice — but if the camera is truly outdoor-facing, the AM-718's IK10 rating and sealed construction justify the cost.
