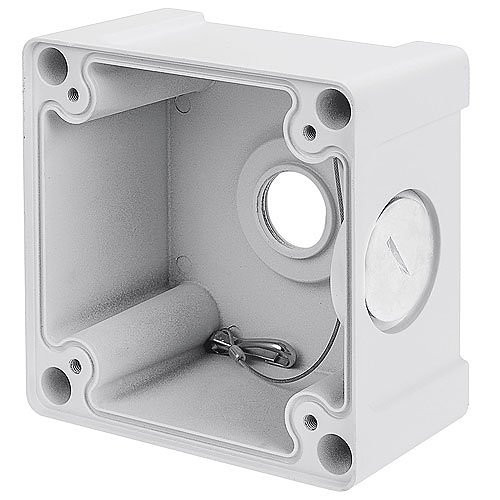

Vivotek AM-719 White Aluminum Outdoor Junction Box

Vivotek AM-719 White Aluminum Outdoor Junction Box

The Vivotek AM-719 is a weather-resistant aluminum junction box purpose-built to protect electrical connections and camera cabling in outdoor surveillance installations. This is not a generic utility enclosure — it's engineered as part of the Vivotek IP camera ecosystem, integrating directly with wall, pole, and corner mounts used across perimeter security, parking lots, and building access points. The aluminum alloy construction and IP66 rating work together to keep moisture, dust, and environmental debris away from splices and terminations where camera feeds and power converge.

Key Features

• Aluminum Alloy Construction: Resists corrosion and oxidation in high-humidity or salt-air environments — critical in coastal or industrial deployments where steel enclosures degrade within 2–3 years. Weight is only 0.55 kg, so wall or pole mounting doesn't require reinforcement.
• IP66 Weather Rating: Rated for direct rain and low-pressure jets without ingress. This means you can mount it on an exterior wall or pole mast during heavy downpours without risking short circuits at the termination block. Does not support full submersion — if you need that, specify IP67 or higher.
• Compact Footprint (122 × 122 × 63 mm): Fits into tight wall cavities, corner installations, and crowded pole mounts without creating cable bend-radius violations. Small footprint also keeps the enclosure visually discrete on modern building facades.
• 3/4" PF Pipe Thread Connection: Mates directly with Vivotek AM-218 wall mounts, AM-312 pole mounts, and AM-412 corner mounts — no adapter fittings required. This standardized threading also means existing pole infrastructure can often be reused without rewiring the base.
• White Finish: Blends with light-colored building exteriors and reduces solar heat load inside the enclosure, lowering internal condensation risk during temperature swings. Non-gloss coating resists glint and doesn't advertise the box's presence on facades.
• Cable Organization: Interior space allows clean bundling of PoE injectors, video splitters, or multi-conductor termination blocks — reduces strain relief kinks and tangled runs that can short over time.

Integration and Compatibility

The AM-719 is designed to work with outdoor IP cameras from the Vivotek IB and IB-E series. Its 3/4" PF threaded mounting standard ensures direct compatibility with the AM-218, AM-312, and AM-412 mounts, eliminating adapters that introduce failure points. If your site uses pre-existing pole infrastructure with non-standard threading, confirm thread pitch and pitch diameter before ordering — mismatched threads cannot be forced.

This is a passive junction point; it does not actively manage power distribution, PoE injection, or signal switching. For multi-camera sites requiring powered termination, you'll still need a separate PoE switch or injector mounted inside or adjacent to the AM-719. Plan physical depth and cable routing before installation — the 63 mm height is deep enough for most PoE splitters, but measure your specific devices.

Mounting and Environmental Considerations

Mount the AM-719 using the 3/4" PF connection to a pole or wall bracket rated for outdoor use. Ensure adequate cable slack inside the box to avoid mechanical strain on connectors when the box is repositioned for maintenance. The IP66 rating assumes properly sealed cable entry points — use weatherproof RJ-45 connectors and strain relief boots, not standard office-grade cords. In sub-zero climates, condensation can form inside the enclosure during morning freeze-thaw cycles; drill a small weep hole near the base if internal moisture becomes an issue after several weeks of operation.

When to Choose a Different Model

If your installation requires submersion protection (near ponds, washdown bays, or flood-prone areas), the AM-719's IP66 rating is insufficient — specify an IP67 or IP69K junction box instead. If you need integrated power distribution or PoE pass-through switching, do not repurpose the AM-719 as a powered enclosure; add a separate managed PoE switch mounted in a cabinet or secondary wall box. For very high cable density (eight or more connected cameras), a larger enclosure may reduce stress on connectors and simplify troubleshooting.

Frequently Asked Questions

Q: Can I wall-mount the AM-719 directly, or do I need a separate bracket?

A: The AM-719 mounts via its 3/4" PF pipe thread to compatible Vivotek brackets (AM-218 wall mount, AM-312 pole mount, or AM-412 corner mount). If you have an existing pole or wall mount with the same 3/4" PF threading, it will thread directly; otherwise, you'll need one of the listed Vivotek mounts.

Q: Is the AM-719 suitable for coastal or high-humidity environments?

A: Yes. The aluminum alloy resists corrosion better than steel in salt air and high-humidity conditions. The IP66 rating also keeps moisture and spray out of the internal termination points. For extreme corrosion risk, confirm with the system integrator that stainless-steel hardware is used for any threaded fasteners inside the box.

Q: What's the maximum number of camera feeds I can terminate inside the AM-719?

A: The internal volume is roughly 940 cubic centimeters. A typical RJ-45 connector and PoE splitter occupy about 150–200 cc each. Plan for 3–4 camera connections comfortably; beyond that, cable bend radius and connector strain become concerns. For larger installations, use multiple smaller junction boxes rather than one overcrowded enclosure.

Q: Does the AM-719 come with mounting hardware or cable connectors?

A: The box itself is supplied empty. You supply the internal termination hardware (RJ-45 keystones, PoE injectors, cable boots) and the bracket-to-pole fasteners appropriate to your site.

Q: Will condensation form inside the AM-719 in cold climates?

A: Yes, especially during freeze-thaw cycles. The IP66 seal prevents external moisture ingress but traps internal air. If condensation becomes a problem after weeks of operation, consider drilling a small (2–3 mm) weep hole near the base to allow slow evaporative drainage. Test this on one installation before deploying across a large site.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AM-719 is a straightforward cable-management enclosure, and that simplicity is its strength. In outdoor surveillance, junction boxes are often afterthoughts — integrators stuff them with oversized splitters, coil excess cable, and assume the IP66 seal will handle the rest. The Vivotek AM-719 (often searched as AM 719) forces discipline: its compact 122 × 122 × 63 mm footprint means you can't ignore cable routing, and its 0.55 kg weight sits easy on pole mounts without deflection. The aluminum alloy will outlast galvanized steel by several years in humid or coastal air — meaningful when your customer's maintenance budget is tight.

Technical Highlights:

• IP66 Rating: Rated for direct rain and low-pressure spray jets, but not submersion. This is the ceiling for this product — anything involving standing water, splash-back from below, or washdown hoses demands IP67 or IP69K. Know your site's water exposure before committing.
• Aluminum vs. Steel Durability: Aluminum resists corrosion roughly 3–5 times longer than uncoated steel in salt-air or high-humidity environments. In inland, dry climates, the material difference is negligible, but coastal deployments will see visible degradation on steel boxes within 2–3 years.
• 3/4" PF Thread Standard: Direct compatibility with Vivotek AM-218, AM-312, and AM-412 mounts eliminates adapter fittings that introduce mechanical failure points. Verify thread pitch (ISO 1/2 inch is standard, but confirm with the bracket datasheet if the customer has unusual pole stock).

Deployment Considerations:

• The 63 mm depth is adequate for most PoE splitters and passive termination blocks, but measure your specific devices before finalizing the mount. Oversized injectors or switched modules will not fit, and you cannot parallel-stack multiple boxes without custom brackets.
• Condensation will form inside the enclosure during freeze-thaw cycles in cold climates. The IP66 seal prevents external water ingress but traps internal air. If this becomes a problem after 4–6 weeks of winter operation, a small weep hole near the base (2–3 mm diameter) allows evaporative drainage — drill one test installation before rolling out across the site.
• Cable slack inside the box is critical. Leaving connector stress relief boots compressed or kinked when the box is mounted will introduce intermittent video loss within months. Budget extra cable length and coil it loosely inside.

The AM-719 is the right choice for perimeter camera sites with 3–4 feeds per junction point, solid outdoor exposure (rain, sun, dust), and a preference for passive, low-maintenance termination. It's not a powered enclosure — if you need PoE switching or active signal distribution, add a managed PoE switch in a separate cabinet and use the AM-719 as a cable-protection link only. In warehouse automation or parking-lot rollouts where the integrator has dozens of identical junction points to deploy, the AM-719's standardized mount thread and compact size dramatically reduce installation time compared to site-built or custom boxes.
