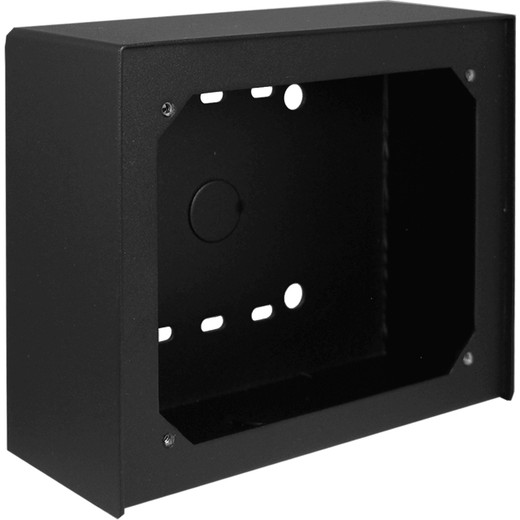

Viking Electronics VE-6X7-NR Surface Mount Box, No Rain Guard

The Viking Electronics VE-6X7-NR is a heavy-gauge steel surface mount enclosure designed for deploying Viking intercom and entry-system panels in locations where a built-in rain guard either isn't needed or where an alternate weather cover will be applied at the installation site. Constructed from 0.062-inch (16-gauge) cold-rolled steel with a UV-stable black fine texture powder coat finish, the VE-6X7-NR gives integrators a durable, field-proven backbox that mounts to a wall, post, single gang box, double gang box, or any Viking gooseneck bracket — without adding the profile bulk of the rain guard version.

Overview

Viking's Viking Electronics intercom and entry systems are built around a modular architecture: the panel face and the surface mount enclosure are separate components, letting you spec the right backbox for each mounting scenario. The VE-6X7-NR drops the rain guard to reduce projection depth and simplify installations where the panel will be recessed under an overhang, mounted inside a vestibule, or fitted with a site-supplied weather cover. This is a purpose-built component — not a generic electrical box — machined and finished to mate directly with the VE-Series panel family.

The companion intercom panel backplate (sold separately as the VE-6X7-PNL) is fabricated from 0.081-inch 12-gauge aluminum with a UV-stable clear gloss powder coat, providing a corrosion-resistant front surface that pairs with this steel box. If your site demands marine-grade corrosion resistance throughout — salt air, coastal exposure, chemical washdown — Viking also offers the VE-6×7-SS-NR variant in 316 stainless steel.

Key Features

• 16-gauge (0.062") cold-rolled steel construction: CRS at this gauge resists denting and flex under field abuse — important when the box is mounted at eye level on a post or entry column where it takes incidental contact. Thinner-gauge alternatives deform at screw points over time; 16-gauge holds torque without stripping.
• UV-stable black fine texture powder coat finish: UV-stable chemistry means the finish won't chalk, fade, or crack after years of sun exposure — a real issue with standard powder coats on south- or west-facing installations. The fine texture also hides minor surface scratches that accumulate in high-traffic entry points.
• No-rain-guard profile: Eliminating the rain guard cuts projection depth, which matters in ADA-clearance-sensitive corridors, tight vestibule entries, or anywhere the standard hooded version would create a snag point. Plan to position this variant under an architectural overhang or pair it with a field-supplied weather hood if the panel will see direct precipitation.
• Versatile mounting footprint: Mounts directly to a standard wall surface, round or square post, single gang box, double gang box, or any Viking gooseneck bracket accessory — no adapter plates or custom fabrication required for the most common entry configurations.
• Designed for VE-Series panel compatibility: Dimensioned and drilled to accept Viking VE-Series intercom panels without modification. This isn't a universal fit — it's spec'd to the VE panel family, which means clean alignment, no gap-filling, and no field drilling.
• Companion 12-gauge aluminum panel (VE-6X7-PNL): The front panel is thicker-gauge aluminum (0.081", 12-gauge) with a clear gloss UV-stable finish — heavier than the box to resist vandal-grade surface attacks on the visible face while keeping the overall assembly lightweight enough for single-operator installation.

Integration & Compatibility

The VE-6X7-NR is purpose-built for the Viking VE-Series intercom and entry panel product line. It is not a universal enclosure. Before ordering, confirm your Viking panel model is specified for the 6×7 box format — Viking's product manual (VE-Series PDF) maps each panel model to its compatible box on pages 2–7. The stainless steel no-rain-guard variant (VE-6×7-SS-NR) is the direct substitute for marine or chemical environments; the VE-6×7-PNL is the standard backbox with panel included. For PoE-powered Viking panels requiring conduit entry, verify conduit knockout sizing against your local panel's wiring requirements before rough-in.

Frequently Asked Questions

Q: What is the difference between the VE-6X7-NR and the standard VE-6X7 box?

A: The VE-6X7-NR omits the rain guard that ships on the standard hooded version. Use it when the panel will be installed under an architectural overhang, inside a vestibule, or when you're supplying your own weather protection. The box material and mounting options are otherwise identical.

Q: What panels is the VE-6X7-NR compatible with?

A: The VE-6X7-NR is designed for Viking Electronics VE-Series intercom and entry panels that specify the 6×7 surface mount box format. Consult the VE-Series product manual (pages 2–7) to confirm your specific panel model's box compatibility before ordering.

Q: Can the VE-6X7-NR be mounted on a post or gang box?

A: Yes. The box is designed to surface-mount to a wall, round or square post, single gang box, double gang box, or any Viking gooseneck bracket — the most common entry system mounting configurations are covered without adapter hardware.

Q: Is there a stainless steel version of the no-rain-guard box for coastal or chemical environments?

A: Yes. Viking offers the VE-6×7-SS-NR, constructed from marine-grade 316 stainless steel, for installations where the standard CRS powder-coated box would be at risk of corrosion from salt air, humidity, or chemical exposure.

Q: What is the shipping weight of the VE-6X7-NR?

A: The box ships at 2.0 lb (0.91 kg). The companion aluminum panel (VE-6X7-PNL) ships at 2.3 lb (1.04 kg) and is sold separately.

Marty Allison

The spec that matters most on the VE-6X7-NR isn't glamorous — it's the 0.062-inch (16-gauge) cold-rolled steel. That gauge is the line between a box that holds its shape when a delivery driver backs a cart into it and one that flexes at the screw bosses after two winters of thermal cycling. I've seen cheaper enclosures on entry intercoms develop misalignment gaps at the panel face within a year; the CRS gauge here prevents that.

Technical Highlights:

• 16-gauge CRS box body (0.062"): Provides rigid mounting geometry that keeps the panel face flush and properly sealed against the box edge — critical for the intercom's internal electronics even without the rain guard.
• UV-stable black fine texture powder coat: Formulated to resist UV chalking and color shift on south- and west-facing exposures — standard powder coat on outdoor steel entry hardware typically begins visible degradation in 3–5 years; UV-stable chemistry extends that significantly.
• 12-gauge aluminum panel face (VE-6X7-PNL, 0.081"): Heavier gauge on the visible panel than the box itself is intentional — the face takes direct vandal contact; the box is protected by the panel overlay. Aluminum resists surface gouging better than painted steel at the same gauge.

Deployment Considerations:

• The no-rain-guard profile means you must account for water intrusion at the panel-to-box interface if the unit isn't under a canopy or overhang — plan for sealant bead at the perimeter or a site-supplied weather hood on exposed installations.
• The VE-6X7-NR (also searched as VE 6X7 NR) is not a universal intercom box — verify your Viking panel model against the VE-Series compatibility matrix (pages 2–7 of the Viking VE-Series manual) before rough-in, or you risk a box-to-panel mismatch that can't be corrected without re-opening the wall.

This box is the right call for covered-entry and vestibule deployments — commercial building lobbies with overhead canopies, interior corridor entry points, and any site where you're supplying a custom architectural weather surround. Spec the VE-6×7-SS-NR instead if you're going into a coastal or industrial-washdown environment.
