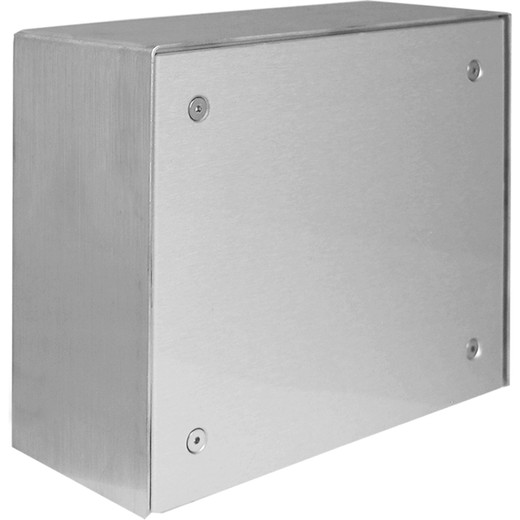

Viking VE-6X7-SS with Aluminum Panel No Rain Guard - VE-6X7-PNL-NRSS

Viking Electronics VE-6X7-PNL-NRSS Stainless Steel Surface Mount Box with Panel, No Rain Guard

Overview

The Viking Electronics VE-6X7-PNL-NRSS is a 16-gauge 316 stainless steel surface mount enclosure panel kit designed for flush-mounted intercom, access control, or entry device installations where a rain guard is either unnecessary or handled by the architectural detail. At 5.64″ × 6.72″ × 2.38″ (143mm × 171mm × 61mm), it is notably shallower than the rain-guard variants in the same VE-6X7 family — that reduced 2.38″ depth is the defining factor for sites with tight wall-cavity clearances or where a protruding hood would conflict with door frames, canopies, or interior finish work.

Key Features

• 316 Stainless Steel, 16-Gauge Construction: 316-grade stainless provides meaningful corrosion resistance beyond standard 304 steel — the molybdenum content in 316 resists chloride pitting, making this enclosure viable in coastal, industrial wash-down, or high-humidity environments where cheaper enclosures corrode at fastener points and panel edges within a few seasons.
• Reduced-Depth Profile at 2.38″: Compare this against the VE-6X7-PNL-SS at 3.4″ depth — the VE-6X7-PNL-NRSS saves roughly an inch of projection from the wall surface. For interior vestibule or elevator lobby installations, or wherever a protruding rain hood creates an ADA clearance or door-swing conflict, that inch matters. You sacrifice weather deflection; you gain compatibility with tighter architectural envelopes.
• Panel-Included Configuration: The panel is supplied with the box rather than sold separately, which matters for retrofit jobs where the existing rough-in opening is already cut and you need a complete, ready-to-mount assembly rather than sourcing panel and box independently.
• Consistent Footprint with VE-6X7 Family: The 5.64″ × 6.72″ face dimensions match other VE-6X7 variants, so template drilling and rough-in dimensions remain interchangeable across the product line — useful on multi-unit residential or campus installations where opening sizes are standardized.

Integration & Compatibility

The VE-6X7-PNL-NRSS is sized and designed to work within the Viking Electronics VE-6X7 enclosure family, which supports Viking's intercom and entry product line. If your installation requires weather protection from direct rain exposure, evaluate the VE-6X7-PNL-SS (same stainless material, 3.4″ deep, with rain guard) or the VE-6X7-PNL (black CRS finish with rain guard). For broader enclosure and intercom system planning, consider pairing this enclosure with an appropriate Viking entry station module. If wall-depth is not constrained, the rain-guard version is the safer default for any outdoor-exposed position — reserve the NRSS for covered entries, interior lobbies, or installations under architectural overhangs where rain deflection is redundant. Consult your access control rough-in drawings to confirm the 2.38″ depth clears your conduit stub-out and back-box before ordering.

Frequently Asked Questions

Q: What is the difference between the VE-6X7-PNL-NRSS and the VE-6X7-PNL-SS?

A: Both use 16-gauge 316 stainless steel construction, but the VE-6X7-PNL-NRSS omits the rain guard and is shallower at 2.38″ depth versus 3.4″ for the VE-6X7-PNL-SS. Choose the NRSS where rain deflection is handled by architecture (covered entry, interior lobby) and where the reduced projection matters. Choose the SS where the installation is directly exposed to rain.

Q: Is the VE-6X7-PNL-NRSS suitable for outdoor installation?

A: The 316 stainless steel construction is corrosion-resistant and suitable for outdoor environments, but without a rain guard this enclosure is best deployed under a canopy, overhang, or other covered entry. Direct rain exposure without a hood may allow water ingress depending on the device installed inside — confirm sealing at the device-to-panel interface for any outdoor use.

Q: What are the exact mounting dimensions for the VE-6X7-PNL-NRSS?

A: The enclosure measures 5.64″ × 6.72″ × 2.38″ (143mm × 171mm × 61mm). This is the overall box dimension including the panel. Verify your rough-in opening and wall-cavity depth against these figures before installation.

Q: Does the VE-6X7-PNL-NRSS include the panel or is the panel sold separately?

A: The panel is included — this SKU is the box-with-panel configuration. It is not a blank box requiring a separately ordered panel.

Q: What is the difference between the VE-6X7-PNL-NRSS and the VE-6X7-PNL (black finish)?

A: The VE-6X7-PNL uses 16-gauge cold-rolled steel (CRS) with a UV-stable black finish and includes a rain guard at 3.4″ depth. The VE-6X7-PNL-NRSS uses 316 stainless steel, omits the rain guard, and is shallower at 2.38″. Choose the stainless version for corrosion-critical environments; choose the black CRS where aesthetics or rain protection take priority.
