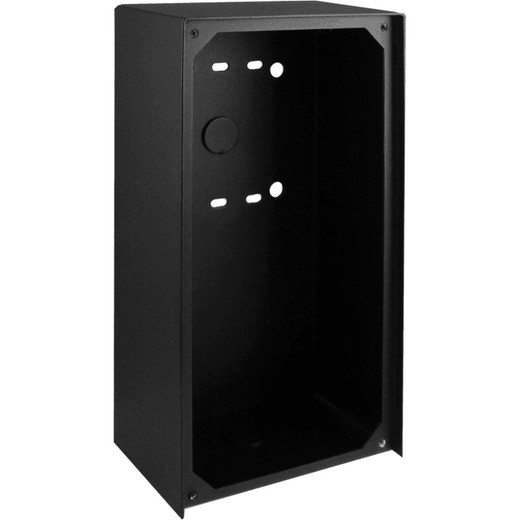

Viking Electronics VE-5X10-NR Surface Mount Box No Rain Guard

Viking Electronics VE-5X10-NR Surface Mount Enclosure — No Rain Guard

Overview

The VE-5X10-NR is a compact, slimline surface mount box from Viking Electronics designed for flush-profile installations where a rain guard is not required. At 5.22″ × 10.14″ × 2.56″, the VE-5X10-NR sits roughly an inch shallower than the standard VE-5X10 variant (which measures 3.69″ deep) — a meaningful difference when mounting to narrow wall sections, recessed conduit runs, or finished interior surfaces where protrusion matters. If you're routing this into a surface mount enclosure application in a lobby, corridor, or access-controlled vestibule, this depth reduction is often what makes the installation look intentional rather than improvised.

The box ships as part of Viking's VE-Series line, which spans multiple footprints (VE-5x5, VE-6x7, VE-5x10) and is available in different colors, styles, and profiles to suit varied deployment environments. For stainless steel requirements — marine, food-processing, or coastal installations — the VE-5×10-NR-SS variant uses 316 marine grade stainless in the same footprint. The NR suffix on this model simply means the rain guard is omitted; choose this variant for interior applications or covered exterior niches where weather protection isn't the deciding factor. Consult the Viking VE-Series product family if you need to compare footprints or finish options side by side.

Key Features

• 16-Gauge CRS Construction (0.062″ wall thickness): Cold-rolled steel at this gauge resists casual impact and flex without the weight penalty of heavier plate. It's rigid enough to hold a terminal board, intercom module, or access control hardware securely — no rattle, no sag over time. For a box that will be mounted in a public corridor or entry point, that stiffness also discourages casual tampering.
• UV-Stable Black Fine Texture Powder Paint: The powder coat finish is formulated to resist UV degradation, so color stability holds in locations with indirect or filtered sunlight exposure (think glass-walled lobbies, covered entries, or partially shaded outdoor niches). The fine texture also helps hide minor surface scuffs that accumulate in high-traffic installs.
• Slimline 2.56″ Depth (No Rain Guard): The omission of the rain guard shaves over an inch off the profile compared to the VE-5X10. In practice, this means less protrusion from finished wall surfaces, cleaner sight lines in architectural environments, and easier clearance when mounting near door frames or adjacent hardware. If your install is interior-only or under a protective overhang, you're not giving anything up by choosing this variant.
• 5.22″ × 10.14″ Footprint: The rectangular footprint accommodates standard Viking intercom and access control modules while remaining compact enough to fit between standard stud bays on drywall installations. The dimensions also align with single and double gang box mounting patterns, giving you flexible rough-in options without custom adapters.
• Surface Mount Compatibility: The VE-5X10-NR mounts directly to walls, posts, single gang boxes, or double gang boxes. This flexibility is practical on retrofit projects where you're adding Viking intercom or entry hardware to an existing structure without opening walls — surface mount keeps the job clean and the schedule tight. Pair it with appropriate intercom mounting accessories to complete the rough-in.
• Approx. 3 lb Shipping Weight: Lightweight enough for a single-person install without scaffolding, even at ceiling height. The steel-to-weight ratio means you're not sacrificing enclosure integrity for portability.

Integration and Compatibility

The VE-5X10-NR is part of the Viking VE-Series and is designed to house Viking Electronics intercom, entry, and access control modules. The box is compatible with wall, post, single gang, and double gang box mounting surfaces. When the application requires corrosion resistance beyond powder-coated CRS — coastal environments, food service, or chemical exposure zones — specify the VE-5X10-NR-SS (316 stainless) instead. For applications where rain or direct weather exposure is a factor, the VE-5X10 (with rain guard, 3.69″ depth) is the correct choice. Consult the access control enclosure category for compatible mounting solutions and related hardware.

Frequently Asked Questions

Q: What is the difference between the VE-5X10-NR and the standard VE-5X10?

A: The VE-5X10-NR omits the rain guard, which reduces the depth from 3.69″ to 2.56″. The footprint (5.22″ × 10.14″) and material (16-gauge CRS, UV-stable powder coat) are the same. Choose the NR variant for interior or covered exterior installs; use the standard VE-5X10 where direct rain exposure is a concern.

Q: Can the VE-5X10-NR be used outdoors?

A: Without a rain guard, this enclosure is best suited for interior use or exterior locations that are sheltered from direct precipitation — covered entries, overhangs, or recessed niches. For exposed outdoor mounting, the standard VE-5X10 (with rain guard) or the VE-5X10-NR-SS (316 stainless) would be more appropriate depending on your environment.

Q: What mounting options does the VE-5X10-NR support?

A: The box can be surface mounted to a wall, post, single gang box, or double gang box. This makes it well-suited for both new construction rough-in and retrofit installations on existing surfaces.

Q: Is a stainless steel version available?

A: Yes. The VE-5X10-NR-SS uses marine grade 316 stainless steel and shares the same mounting compatibility. Specify it for coastal, food processing, or other corrosive environments where powder-coated CRS would not hold up long-term.

Q: What Viking equipment does this enclosure house?

A: The VE-5X10-NR is part of the Viking VE-Series and is sized to accommodate Viking intercom, entry, and access control modules. Verify module dimensions against the 5.22″ × 10.14″ × 2.56″ interior before specifying for non-Viking hardware.

Eden Phillips

The detail I keep coming back to on the VE-5X10-NR is that 2.56″ depth. On a finished interior wall — especially in a modern lobby or a card-access vestibule with tight tolerances near the door frame — that inch you save versus the standard VE-5X10 is often what separates a clean install from one that looks like it was bolted on as an afterthought. The trade-off is straightforward: no rain guard, so this one belongs indoors or under cover.

Technical Highlights:

• 16-Gauge CRS (0.062″): Cold-rolled steel at this wall thickness is rigid under normal load and resists casual flex — important when a technician is routing cables through the box or torquing terminal screws. It's not armored, but it's not sheet-metal flimsy either.
• UV-Stable Powder Coat: The finish is formulated to resist color shift under UV exposure, which matters in glass-walled lobbies or semi-exterior covered entries where sunlight is indirect but persistent. You won't see the yellowing or chalking that shows up on lower-grade finishes over a 3–5 year horizon.
• Slimline Profile at 2.56″ Depth: Compared to the rain guard variant at 3.69″, this box protrudes noticeably less from the wall surface. On a drywall finish with adjacent millwork or door hardware, that difference is visible and matters aesthetically in commercial builds where the architect has opinions.

Deployment Considerations:

• The NR (No Rain Guard) designation is the critical spec to communicate to the installing tech. In a multi-zone project, mixing NR and standard variants on a submittal without clear callouts leads to field substitutions — clarify in the cut sheet which locations are covered and which are exposed before equipment ships.
• The 5.22″ × 10.14″ footprint aligns with Viking's VE-Series module family, but if you're housing third-party hardware, verify the interior clearance against your module's depth before committing. The 2.56″ depth is shallower than it looks on paper when you factor in terminal block depth and cable bend radius.

This box fits naturally in finished commercial interiors — corporate lobbies, healthcare access points, multi-tenant entry systems — where the install needs to look deliberate and wall protrusion is a real constraint. For any exposed exterior location, specify the VE-5X10 or VE-5X10-NR-SS instead.
