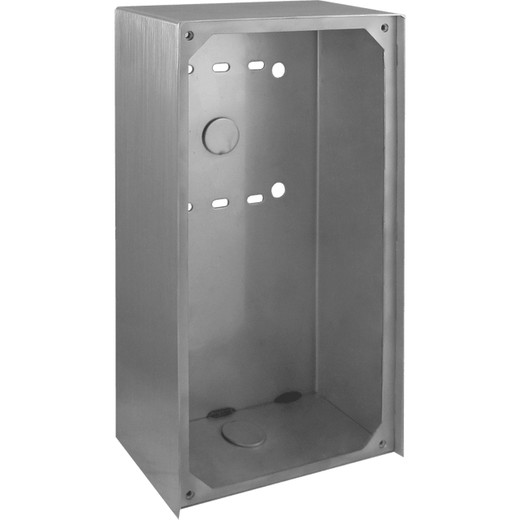

Viking VE-5X10 No Rain Guard Stainless Steel - VE-5X10-NR-SS

Viking Electronics VE-5X10-NR-SS Stainless Steel Surface Mount Box No Rain Guard

Overview

The VE-5X10-NR-SS is a marine-grade 316 stainless steel surface mount enclosure from Viking Electronics designed for flush or direct-surface intercom and entry system installations where a protruding rain guard would be architecturally unacceptable or physically obstructed. At 5.22" x 10.14" x 2.56" (133mm x 258mm x 65mm), this is a compact, low-profile housing built for environments where stainless corrosion resistance matters — coastal facilities, food-processing areas, exterior vestibules, and marine terminals. If you're planning an intercom or access control deployment in a high-humidity or salt-air environment, the VE-5X10-NR-SS belongs on your shortlist before you consider painted aluminum alternatives.

Key Features

• Marine Grade 316 Stainless Steel Construction: Grade 316 — not the more common 304 — contains molybdenum, which significantly improves resistance to chloride pitting and crevice corrosion. This matters in coastal, poolside, and food-service installations where 304 or painted aluminum housings would show surface rust within months. The intercom enclosure is built to last in conditions that degrade lesser materials.
• #4B Brushed Finish: The #4B brushed stainless finish is the standard aesthetic specification for architectural and commercial installations — it blends cleanly with stainless hardware, door frames, and elevator panels without the high-maintenance look of a mirror polish. Specify this when the install needs to match existing SS fixtures in a lobby or building entrance.
• 0.060" Thick Gauge Steel: At 0.060" wall thickness, this enclosure delivers a rigid, vandal-resistant feel without the added weight of thicker plate. It resists casual deformation from impact or tampering while keeping the shipping weight to 2.8 lbs (1.27 kg) — relevant when shipping multiple units to a multi-site rollout.
• No Rain Guard Profile (2.56" Depth): The NR (no rain guard) variant sits at just 2.56" deep (65mm), compared to standard variants with integral rain guards that extend considerably further from the wall. This profile is the correct choice when the installation point already has overhead weather protection — a canopy, soffit, or recessed entry — or when architectural constraints prohibit forward projection. Don't order this variant for fully exposed outdoor locations without supplemental weather protection.
• 5.22" x 10.14" Face Dimensions: The 5x10 face accommodates Viking's full-size intercom and access control module lineup. Verify your chosen Viking module fits the 5x10 form factor before ordering — Viking also offers 3x7 and other sizes in the VE-Series.
• 2.8 lb Shipping Weight: Lightweight enough for single-person installation. No special structural reinforcement required for standard drywall or masonry surface mounting.

Integration & Compatibility

The VE-5X10-NR-SS is part of Viking's VE-Series enclosure family and is designed to accept Viking intercom and entry system modules sized for the 5x10 form factor. The enclosure supports surface mounting directly to a wall, post, single or double gang electrical box, or any Viking Gooseneck mount — giving installers flexibility across concrete, brick, drywall, and post-mount scenarios. For deployments where the box will be exposed to direct precipitation without overhead cover, consider the VE-5X10-SS (with rain guard) instead. Review the surface mount box category for the full Viking VE-Series lineup including alternate sizes and finish options.

The VE-5X10-NR-SS (often searched as VE 5X10 NR SS) is a direct drop-in for applications where the standard VE-5X10-SS has been specified but the rain guard creates a clearance conflict or aesthetic mismatch.

Frequently Asked Questions

Q: What is the difference between the VE-5X10-NR-SS and the VE-5X10-SS?

A: The VE-5X10-NR-SS is the no rain guard variant. Its depth is 2.56" (65mm) versus the standard VE-5X10-SS which includes an integral rain guard and projects further from the wall. Choose the NR variant when the installation point has its own overhead weather protection or when forward projection is a concern. Both share the same marine grade 316 stainless steel construction and #4B brushed finish.

Q: What Viking intercom modules fit the VE-5X10-NR-SS?

A: The VE-5X10-NR-SS is sized for Viking's 5x10 form factor module lineup. Confirm your specific Viking intercom or entry system model is rated for the 5x10 enclosure before ordering — Viking also manufactures 3x7 and other VE-Series sizes.

Q: Is the VE-5X10-NR-SS suitable for fully exposed outdoor use without a canopy?

A: The no rain guard design means direct overhead rain exposure is not mitigated by the enclosure itself. For fully exposed outdoor installations without overhead cover, the VE-5X10-SS with integral rain guard is the better specification. The VE-5X10-NR-SS is best suited to covered entries, soffits, or recessed mounting positions.

Q: What mounting options are supported?

A: The enclosure supports surface mounting to a wall, post, single or double gang electrical box, or any Viking Gooseneck mount — providing flexibility across concrete, masonry, drywall, and post installations.

Q: What steel grade is used and why does it matter?

A: The VE-5X10-NR-SS uses marine grade 316 stainless steel, which contains molybdenum for enhanced resistance to chloride corrosion. This makes it appropriate for coastal, marine, food-service, and high-humidity environments where standard 304 stainless or painted aluminum would corrode more readily.

Marty Allison

The detail that drives most of the VE-5X10-NR-SS specification decisions is the 2.56" depth — at 65mm of wall projection, this enclosure sits noticeably flatter than rain guard variants, and that's not an aesthetic nicety. In covered entry vestibules, elevator lobbies, and ADA-compliant mounting scenarios, keeping projection under 3" frequently matters for code compliance and traffic clearance. The 316 stainless construction backs that up for the environments where this form factor gets deployed most often.

Technical Highlights:

• 316 vs. 304 Stainless: The molybdenum content in grade 316 directly addresses chloride pitting — the failure mode that makes 304 enclosures look shabby within 18 months in coastal or food-processing facilities. This is the spec that justifies the price delta over painted aluminum in those environments.
• 0.060" Wall Thickness: Thinner than the VE-5X10-SS aluminum sibling at 0.081", but 316 SS has higher tensile strength than aluminum — the enclosure still resists casual vandalism and deformation. Shipping weight of 2.8 lbs (1.27 kg) keeps multi-unit installs manageable.
• 5.22" x 10.14" x 2.56" Exterior Dimensions: Know these numbers before you cut conduit or pull wire — the 2.56" depth assumes flush conduit entry and no bulky connector backshells inside the box. Plan wire management accordingly.

Deployment Considerations:

• The NR (no rain guard) profile is the correct call at covered entries, under soffits, and inside vestibules where overhead exposure is already handled architecturally. Ordering this variant for a fully exposed exterior wall without a canopy is the most common field mistake — water will track directly into the module.
• The #4B brushed finish will show fingerprints and cleaning marks over time in high-traffic lobbies — factor in a maintenance spec for the finish if appearance is a client deliverable.

The VE-5X10-NR-SS is the right enclosure for marine terminal entry points, food-plant exterior stations, and coastal hospitality properties where the covered mounting position is already designed in and salt-air resistance is a genuine service-life requirement — not just a checkbox.
