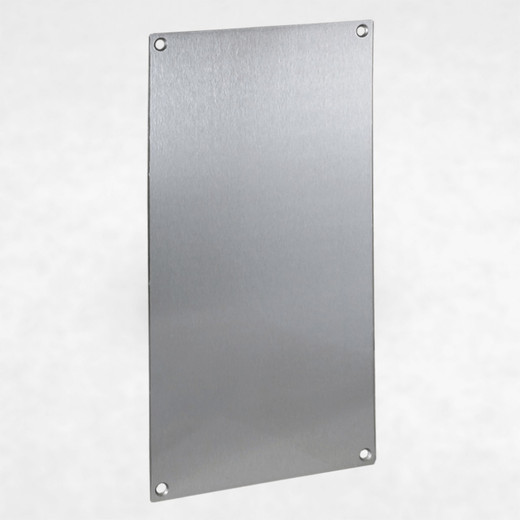

Viking VE-5X10-PNLNRSS 5x10 Stainless Steel Surface Mount Enclosure

Viking Electronics VE-5X10-PNLNRSS Stainless Steel 5x10 Surface Mount Enclosure with Blank Panel

The VE-5X10-PNLNRSS is a surface-mount backbox designed for installations where corrosion resistance and a clean exterior finish are non-negotiable — coastal sites, food-processing environments, outdoor pedestrian columns, and any location where standard cold-rolled steel would fail within a few seasons. The enclosure pairs marine grade 316 stainless steel construction with a 12-gauge aluminum blank panel, giving integrators a ready-to-drill mounting surface without committing to a specific hole pattern upfront. Browse the full Viking Electronics enclosure and intercom line if you need companion devices or matching housings.

Key Features

• Marine Grade 316 Stainless Steel Body: The 0.060"-thick 316 SS shell resists chloride-driven corrosion that eats standard 304 SS and cold-rolled steel in coastal or chemically active environments. If your project is within a mile of salt water or inside a facility that uses chlorine-based washdowns, 316 is the correct material call — not an upgrade.
• #4B Brushed Finish: The brushed exterior blends with commercial architectural hardware (door frames, elevator cladding, signage panels) and conceals minor surface scratches over time, unlike mirror-polished finishes that show every mark. Suitable for lobby columns and high-visibility wall locations without looking like utilitarian electrical gear.
• 0.060" Box Wall Thickness: Heavier than typical thin-gauge enclosures found in interior-only applications. The added rigidity prevents panel flex when buttons or readers are mounted, and resists denting in high-traffic corridors or loading dock areas where carts and equipment pass close to walls.
• 0.081" (12-Gauge) Aluminum Blank Panel: The included blank panel is thick enough to accept standard intercom or access control hardware without warping under repeated button-press cycles. UV stable clear gloss powder paint maintains appearance under prolonged sun exposure on south-facing exterior walls. Drill and punch to your exact wiring layout on-site.
• UV Stable Clear Gloss Powder Paint on Panel: The panel finish won't yellow, chalk, or peel under UV exposure — a common failure point on painted steel panels used outdoors. Clear gloss preserves the aluminum's natural appearance rather than adding color that ages inconsistently.
• Surface Mount Design — No Conduit Box Required: Designed to mount directly to a wall or post surface. This simplifies rough-in on poured concrete, CMU, and metal stud applications where back-box recessing is impractical. Pair with appropriate conduit fittings entering from the rear or sides based on your site's conduit routing.
• Shipping Weight 3.2 lb (1.45 kg): Light enough for single-person installation on a pole or wall column without a lift assist, while the steel construction provides the structural rigidity needed to carry the weight of mounted intercom hardware and cabling.
• No Rain Guard Variant: The PNLNRSS designation confirms this unit ships without a rain guard. That's intentional for flush-wall or recessed-niche installations where a protruding hood would conflict with adjacent architecture — or where you're supplying your own weather protection. If your deployment is fully exposed overhead, evaluate whether a hood is needed before install.

Integration & Compatibility

The VE-5X10-PNLNRSS is part of Viking Electronics' VE-Series surface mount enclosure family. The 5x10-inch form factor accommodates Viking's standard intercom and entry-system modules. The blank panel allows field customization for any panel-mounted device — access control readers, keypads, call buttons, or custom labeling — without pre-punched holes locking you into a single configuration. The enclosure dimensions (5.22″ × 10.14″ × 3.69″ depth) are shared across the VE-5X10 family, so intercom systems and modules specified against the standard VE-5X10 will fit this stainless variant without dimensional changes. Verify conduit knockout locations against your site's conduit routing before finalizing the mounting position.

Frequently Asked Questions

Q: What grade of stainless steel is used in the VE-5X10-PNLNRSS?

A: The enclosure body is made from marine grade 316 stainless steel, which provides superior chloride and corrosion resistance compared to standard 304 SS. This makes it appropriate for coastal, food-service, and chemically active environments.

Q: Does the VE-5X10-PNLNRSS include a rain guard?

A: No. The NRSS designation in the model number indicates no rain guard is included. This variant is intended for installations where a hood is unnecessary or where the enclosure is mounted in a protected niche. A separate rain guard accessory would need to be sourced if overhead weather protection is required.

Q: What are the panel dimensions and material?

A: The blank panel is 12-gauge (0.081" thick) aluminum with a UV stable clear gloss powder coat finish. The overall enclosure exterior dimensions are 5.22" × 10.14" × 3.69" deep.

Q: Can I field-drill the blank panel for my specific hardware layout?

A: Yes. The blank panel ships without pre-punched holes, allowing you to drill and punch for your exact device configuration — intercom modules, access control readers, keypads, or custom cutouts — on-site.

Q: Is the VE-5X10-PNLNRSS suitable for outdoor installation?

A: The 316 stainless steel body and UV stable panel finish are appropriate for outdoor surface mounting. However, this unit ships without a rain guard, so evaluate overhead exposure at your site and add a hood if the enclosure face will be directly exposed to precipitation from above.

James Everett

The VE-5X10-PNLNRSS comes up regularly in coastal and food-service projects where the standard cold-rolled steel box simply won't last. The 316 SS body — not 304, not painted carbon steel — is the right answer when you're within reach of salt air or chlorinated washdown cycles. At 0.060" wall thickness, it's built to take the physical abuse of a traffic-adjacent column without denting around the panel cutouts.

Technical Highlights:

• 316 SS vs. 304 SS Body: 316 adds molybdenum to the alloy, specifically to resist chloride pitting. In a coastal or washdown environment, 304 SS develops surface rust at screw holes and panel edges within 2–3 years; 316 holds significantly longer under the same conditions.
• 12-Gauge Aluminum Blank Panel (0.081"): Thick enough to accept a standard 22mm momentary button or D-punch cutout without the panel flexing or cracking at the edges. Thinner panels (16–18 gauge) can deform over years of button-press cycles — a common callback on budget enclosures.
• 3.69" Box Depth: Sufficient for Viking's intercom PCB modules plus terminal blocks and cabling dressed to the sides. Tight on depth if you're stacking a power supply inside — plan your internal layout before committing to this depth on complex builds.

Deployment Considerations:

• The no-rain-guard configuration keeps the profile flush and clean, but requires a protected mounting location or a field-added hood on any exposure with direct overhead precipitation — factor this into your rough-in planning before the wall finish goes up.
• At 3.2 lb (1.45 kg) shipping weight, the enclosure is single-person installable on a post or wall stud, but anchor into solid backing — stainless hardware adds enough weight that drywall anchors alone are marginal for long-term vibration resistance.

This enclosure is the right call for waterfront marina intercom columns, commercial kitchen entry panels, or any architectural application where the box exterior is visible and corrosion from salt or cleaning agents is a realistic service-life concern.
