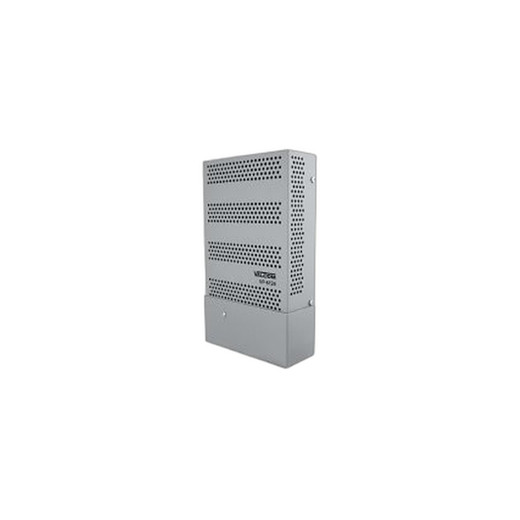

Valcom V-ACS-X48/25 48-Zone Expansion Module
Overview
The Valcom V-ACS-X48/25 (often searched as V ACS X48/25) is a zone expansion module engineered to extend the capacity of the V-ACS25 communications and emergency notification system. This module scales existing V-ACS25 deployments from their base zone count up to 48 total zones of coverage while maintaining 25-volt operation — meaning no redesign of your power infrastructure and no retraining of operators. For small to mid-size facilities, warehouse operations, educational campuses, healthcare networks, and manufacturing plants, the V-ACS-X48/25 provides a cost-effective expansion path when facility geography or operational growth demands more distributed zone coverage. The rack-mount form factor integrates directly into existing ACS cabinet installations without requiring new enclosure hardware.
Key Features
- 48-Zone Expansion Capacity: Extends V-ACS25 base system to full 48-zone coverage — enough for multi-building sites, warehouse floor sections, or campus-wide notification without replacing the entire control platform.
- 25-Volt Operation: Operates at the standard 25-volt specification used in existing V-ACS25 deployments. This ensures compatibility with wiring, power distribution, and speaker infrastructure already installed, eliminating costly rebalancing of the power supply.
- Rack-Mount Form Factor: Compact rack-mount design fits into 19-inch standard network and communications cabinets, preserving cable management and integrating with existing security and communications racks.
- Direct Integration with V-ACS25 Platform: Module connects directly to V-ACS25 control units without requiring gateway hardware, protocol conversion, or third-party middleware — critical for maintaining voice clarity and emergency notification latency.
- Modular Expansion Architecture: Deploy zones in phases as facility needs grow — install the base system first, then add the expansion module when you're ready. Avoids over-provisioning capital when initial rollout serves only a portion of the facility.
- Preserves Existing Infrastructure Compatibility: Works with speakers, microphones, tone boards, and notification triggers already deployed in V-ACS25 environments. No need to replace hardware to gain additional zones.
Integration & Compatibility
The V-ACS-X48/25 is a purpose-built component within the Valcom intercom systems family, designed specifically for the V-ACS25 platform architecture. When paired with a V-ACS25 base unit, this expansion module enables distributed zone management across up to 48 distinct coverage areas — each zone can be assigned to a physical area (warehouse section, hallway, building floor, or outdoor zone) and managed independently through the V-ACS25 control interface. Integrators familiar with V-ACS25 deployment find the V-ACS-X48/25 requires no reconfiguration of the base system logic or emergency notification routines; the module slots into the existing zone management model and extends it horizontally.
Deployment Scenarios
The V-ACS-X48/25 is most valuable in scenarios where a single V-ACS25 unit's native zone count is insufficient but a full enterprise-scale system upgrade is not justified. Typical applications include education campuses requiring coordinated all-call capability across multiple buildings, healthcare facilities needing distinct paging zones by floor or department, manufacturing plants with separate production areas, and multi-building corporate environments where centralized emergency notification is required but zones must remain logically separate for operational workflow. In environments where communications system architecture planning is underway, the modular expansion approach allows phased rollouts that match budget cycles and facility construction schedules.
Technical Implementation
The module handles zone expansion at the control layer — it does not add complexity to wiring or speaker management. Each of the 48 zones can route voice, tone notifications, and emergency alerts independently, supporting flexible facility layouts without requiring hardwired zone boundaries. The 25-volt power specification aligns with widespread existing ACS infrastructure in deployed sites, simplifying power budgeting and eliminating the need for dual-voltage power supplies.
Frequently Asked Questions
Q: Can I add the V-ACS-X48/25 to an existing V-ACS25 installation without downtime?
A: Installation and integration of the expansion module can typically be performed during a scheduled maintenance window. Consult with your integrator for specific sequencing and any testing required to validate the expanded zone configuration before returning the system to production.
Q: What is the maximum number of zones I can deploy with the V-ACS-X48/25?
A: The V-ACS-X48/25 extends the V-ACS25 system to 48 total zones. If your facility requires more than 48 zones, consult your integrator about alternative platform options or multiple independent V-ACS systems.
Q: Does the V-ACS-X48/25 require additional power supply capacity?
A: Because the module operates at 25 volts and integrates directly with the existing V-ACS25 power infrastructure, you should verify that your current power supply has sufficient current capacity to support the additional zones and any new speakers or endpoints you plan to add. Your integrator can calculate power requirements based on your speaker load and zone distribution.
Q: Is the V-ACS-X48/25 compatible with third-party emergency notification software?
A: The V-ACS-X48/25 is designed as part of the Valcom ACS platform and integrates with V-ACS25 control units and Valcom-compatible notification systems. Compatibility with third-party platforms depends on their support for V-ACS25 integration; contact your integrator or the software vendor for specifics.
Q: What happens if one zone fails — does the entire 48-zone system go down?
A: Zone-level isolation depends on the V-ACS25 system design and wiring topology. Properly configured systems isolate speaker failures to individual zones while preserving all-call capability. Discuss fault tolerance and redundancy requirements with your integrator during system design.
Q: Can I mix the V-ACS-X48/25 with other Valcom expansion modules?
A: The V-ACS-X48/25 is designed to work with the V-ACS25 platform. If you require multiple expansion modules or integration with other Valcom system families, consult your integrator for compatibility and capacity planning.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
From a systems integration perspective, the Valcom V-ACS-X48/25 addresses a common growth constraint: existing V-ACS25 deployments that started small and now need to scale across larger facilities or additional buildings without replacing the entire platform. Rather than scrapping the base system and operator training, this module provides a cost-efficient path to 48-zone coverage while preserving investments in speaker infrastructure, wiring, and operational procedures.
Technical Highlights:
- 48-Zone Scalability: Extends from the base V-ACS25 zone count to full 48-zone capacity, enabling facility-wide communication reach across multiple buildings, floors, or operational areas without architectural redesign.
- 25-Volt Standardization: Operates at 25 volts — the same voltage as existing V-ACS25 deployments — so no power supply replacement, no rewiring of speaker runs, and no recalibration of zone amplification required. This is a genuine cost and timeline advantage on expansions.
- Rack-Mount Centralization: Fits into standard 19-inch cabinet installations alongside existing security and communications equipment, keeping zone management centralized and simplifying troubleshooting and maintenance visits.
Deployment Considerations:
- Verify that your V-ACS25 base unit power supply has sufficient current capacity (in amps) to support 48 zones plus any new speakers or endpoints — this is the primary integration variable and must be calculated by your integrator before deployment.
- Installation typically requires a maintenance window; coordinate with facility operations to validate zone routing and all-call functionality before returning to production.
- Each zone can be independently routed, toned, or silenced, but the module itself does not add logic or automation — control logic remains in the V-ACS25 unit, so integration with third-party emergency notification software is dependent on V-ACS25 compatibility, not the module.
The V-ACS-X48/25 is the right move for warehouse operations expanding from a single facility to multi-building logistics networks, education campuses adding buildings without replacing the base platform, or healthcare networks needing distinct departmental zones but unified emergency notification. It's not appropriate if you need more than 48 zones, require enterprise-scale system redundancy, or are already committed to a different intercom platform — in those cases, evaluate alternative Valcom systems or platform migration during your next planning cycle.
