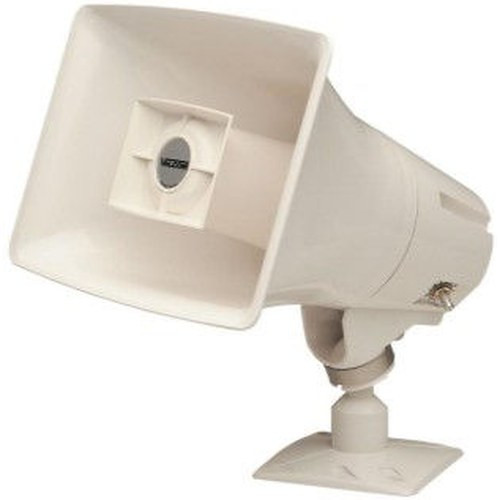

Valcom V-1036M 15-Watt Marine Horn
Overview
The Valcom V-1036M is a 15-watt high-efficiency marine horn engineered for large-area voice paging, emergency alerts, and facility-wide announcements across warehouses, outdoor industrial sites, stadiums, and institutional campuses. This is a one-way audio device—no two-way intercom capability—purpose-built to deliver loud, clear audio projection where standard 4–8 watt speakers cannot reach. The white-finish horn integrates directly into distributed paging amplifiers and emergency notification systems via standard audio line-level connections. Deploy this when coverage area and sound pressure level are your primary design constraints.
Key Features
- 15-Watt Power Output: Delivers meaningful SPL across large indoor warehouses and outdoor industrial perimeters without requiring overkill amplifier capacity. A 15W horn covers roughly 1.5–2× the area of an 8W speaker under typical ambient noise conditions, so you reduce the total number of devices needed in a facility-wide system.
- High-Efficiency Acoustic Design: Optimized horn geometry maximizes acoustic output per watt, reducing amplifier load and lowering overall system power consumption. This matters when you're deploying dozens of units across a campus—efficiency translates to smaller, cheaper power infrastructure.
- One-Way Audio Architecture: Broadcast-only, no return audio path. This simplifies amplifier topology, eliminates feedback loops, and cuts wiring complexity compared to two-way intercom setups. Use this for announcements, alerts, and notifications; don't use it for stations that need to talk back.
- Marine-Grade Horn Construction: Designed for moisture, salt spray, and UV exposure. Suitable for outdoor industrial sites, parking structures, and coastal facilities where standard consumer speakers fail within months. The horn's durable plastic/composite construction resists corrosion and weather degradation.
- White Finish: Neutral aesthetic blends into industrial and institutional facilities. Mounting hardware secures the horn to walls, ceilings, or poles using standard M10 or similar fasteners (verify with your installer).
- Emergency Notification Ready: Appropriate for life-safety paging systems, evacuation signaling, and critical alert networks. Integrates with conventional fire alarm amplifiers and networked emergency management platforms that distribute audio over analog line-level connections.
Integration & Compatibility
The V-1036M connects to any distributed paging amplifier via standard 70V or 25V audio line connections. Verify amplifier output impedance and power rating match the horn's 15-watt load. The device is compatible with AC-powered, battery-backed, and hybrid emergency systems. For networked notifications, pair the horn with a conventional page station or networked amplifier module (e.g., Valcom tone-generator modules or third-party ONVIF-compatible audio distribution systems). Installers should confirm the amplifier's output impedance matches your horn's impedance spec—typical ranges are 4Ω to 70V distributed. If you're uncertain about amplifier matching, consult the speakers and horns category to compare compatible amplifier options.
Deployment Considerations
Mount the horn high (8–12 feet minimum) to achieve maximum coverage and avoid direct blocking by personnel or equipment. Outdoor deployments require weather-resistant wire and connections; use conduit where possible. In noisy industrial environments (≥85 dB ambient), verify the horn's output meets or exceeds ambient levels plus 15 dB for intelligibility. For multi-horn arrays, stagger mounting positions to minimize phase cancellation and dead zones.
When to Choose a Different Model
If your facility requires two-way intercom capability (e.g., a control station that needs to hear responses), the V-1036M will not meet that requirement—look for a dual-channel intercom system instead. For smaller indoor spaces (offices, retail) under 100 dB SPL requirement, a standard 4–8 watt ceiling speaker is more cost-effective and aesthetically appropriate. If you need multiple horn styles or impedance variants within the Valcom line, consult the broader Valcom product family for indoor-only or lower-wattage alternatives.
Frequently Asked Questions
Q: What is the maximum coverage distance for the V-1036M?
A: Coverage depends on ambient noise level, horn mounting height, and target SPL. In quiet indoor warehouses, expect 75–100 feet of intelligible coverage. In noisy outdoor industrial areas, 50–75 feet is realistic. Consult your amplifier installer for site-specific modeling.
Q: Can the V-1036M be used indoors and outdoors?
A: Yes. The marine-grade construction handles outdoor weather, but the horn also functions in indoor warehouse, parking structure, and facility settings. Verify mounting infrastructure and wire protection for your specific environment.
Q: What amplifier wattage do I need for the V-1036M?
A: The amplifier must deliver at least 15 watts into the horn's impedance rating (typically 4Ω or 70V distributed). If your system uses multiple horns, sum the total wattage and select an amplifier with rated output equal to or greater than that total. A typical facility with 4–6 V-1036M horns requires a 60–90 watt amplifier.
Q: Is the V-1036M suitable for emergency evacuation paging?
A: Yes. The high output and one-way architecture make it ideal for life-safety notifications. Verify integration with your facility's emergency management system and test intelligibility in your specific environment before relying on it for critical alerts.
Q: What mounting options are available?
A: The V-1036M ships without mounting hardware; standard wall, ceiling, and pole mounts accommodate M10 fasteners or similar. Consult your installer for site-specific mounting solutions.
Q: Does the V-1036M require AC power?
A: The horn itself is passive—it requires audio-level input from an amplifier. Power comes from the amplifier (typically AC or battery-backed in emergency systems). The V-1036M does not draw power directly.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Valcom V-1036M is the right choice when you need to distribute loud, clear audio across large industrial or outdoor spaces and don't require two-way intercom capability. I've deployed this horn in warehouse-wide announcement systems, stadium paging networks, and outdoor facility perimeter alerts where conventional 4–8 watt speakers simply cannot achieve sufficient SPL. The 15-watt rating delivers measurable coverage extension without forcing you into oversized, expensive amplifier infrastructure.
Technical Highlights:
- 15-Watt Output with High-Efficiency Design: Delivers 1.5–2× the coverage area of an 8W speaker in comparable conditions, reducing the total horn count required for a facility-wide system and lowering total cost of ownership.
- Marine-Grade Horn Construction: Withstands moisture, salt spray, and UV without corrosion. Ideal for outdoor industrial, coastal, and high-humidity environments where standard consumer speakers degrade within a year or two.
- One-Way Audio Only: Eliminates two-way intercom complexity; integrates seamlessly into distributed paging amplifiers and emergency notification networks without requiring dual-channel infrastructure.
Deployment Considerations:
- Mount high (8–12 feet minimum) to maximize coverage and avoid obstruction by personnel or equipment. Outdoor wiring must use conduit and weatherproof connections.
- In noisy industrial environments (ambient ≥85 dB), verify the horn's output exceeds ambient levels plus 15 dB for speech intelligibility. Test in your actual space before commissioning for life-safety applications.
- Confirm your amplifier's impedance (4Ω or 70V distributed) and wattage rating before final installation—impedance mismatch will degrade output significantly.
Deploy the V-1036M when your primary objective is large-area coverage and emergency notification clarity across warehouses, outdoor industrial sites, or campus-wide paging networks. Skip this horn if your facility requires two-way voice communication or if smaller spaces can be served cost-effectively by lower-wattage speakers.
