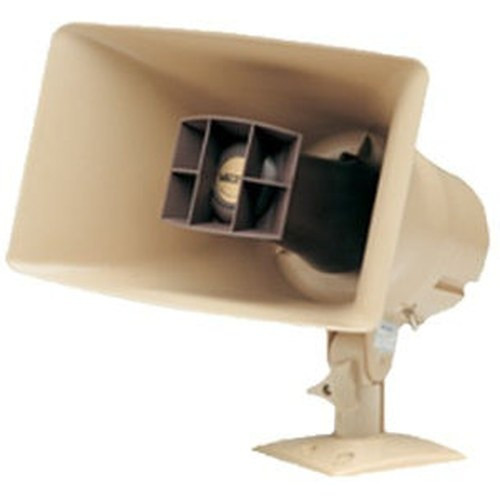

Valcom V-1038 30-Watt Self-Amplified Horn Speaker
Overview
The Valcom V-1038 is a self-contained, 30-watt paging horn engineered for straightforward one-way audio distribution across commercial and industrial facilities. Unlike distributed architectures that require centralized amplifiers feeding passive horns, the V-1038 integrates a dedicated 30-watt amplifier directly into the speaker assembly. This matters in practice: you eliminate the need for external amplifier chassis at each zone endpoint, which reduces both installation labor and system footprint—particularly valuable when retrofitting paging into existing facilities or expanding coverage into zones where running amplified audio lines would be costly or impractical.
Key Features
- 30-Watt Integrated Amplifier: Built-in amplification eliminates dependency on remote amplifier distribution. A single 30-watt output is sufficient for medium to large coverage areas (typical 1,000–3,000 sq ft depending on ambient noise and ceiling height), so you size horns per zone rather than over-engineering a central system.
- Self-Contained Design: Power and audio input are the only connections required. This simplifies wall and rack installations—no auxiliary amplifier enclosures, no power distribution complexity, and faster commissioning when you're standing up distributed paging across multiple floors or zones.
- Integrated Volume Control: On-unit dial allows field-level adjustment of audio levels without reconfiguration of a central paging control panel or mixer. Critical for balancing output when horns are deployed in spaces with varying acoustic characteristics (open warehouse vs. enclosed office).
- Microphone Input Support: Accepts microphone input directly, enabling live paging and emergency notifications without intermediate audio interfaces. Integrates with paging stations, emergency alert panels, or mixing consoles—your choice of control topology.
- High-Efficiency Horn Projection: Acoustic horn design concentrates and projects sound efficiently, meaning you get more usable coverage per watt than a generic speaker cabinet. This reduces the number of horns required to cover a given facility footprint.
- Wall and Rack Mount Options: Flexible mounting accommodates both vertical wall installation in distributed zones and equipment rack integration in central paging control rooms. Form factor is compact enough to not dominate visual real estate in offices or retail environments.
- Beige Finish: Standard color blends into commercial and institutional interiors; minimizes visual contrast without sacrificing functionality.
Integration & Compatibility
The V-1038 operates as a standalone paging endpoint within distributed audio systems. Its microphone input and amplifier design allow it to pair with a wide range of audio sources: analog paging stations, emergency notification panels, mixing consoles, or even simple audio output from a commercial switch (if level-matched). Because the V-1038 provides its own amplification, you don't need to size a central amplifier to drive multiple remote horns—each horn is independently powered. This topology simplifies cabling (audio lines can be unpowered twisted pair rather than heavy-gauge amplified pairs) and reduces single points of failure in mission-critical paging. Wall and rack mounting flexibility supports both retrofit scenarios (mounting directly to an interior wall in an existing zone) and new-construction scenarios (integrating into a central equipment rack).
Deployment Applications
The V-1038 is well-suited for announcement systems, emergency evacuation notifications, facility-wide paging, warehouse and logistics operations, and institutional audio distribution in corporate offices, educational institutions, healthcare facilities, and industrial plants. Security integrators and facility managers often deploy the V-1038 in multi-zone configurations where a single centralized amplifier would require complex amplifier sizing and power distribution. The self-contained design reduces system architecture overhead, making it an economical choice for facilities upgrading legacy paging infrastructure or expanding coverage into new zones without re-engineering the entire audio backbone.
When to Choose a Different Model
If your facility requires two-way communication (talk-back from horns to a central station), the V-1038 is not suitable—it is one-way audio only. If you need lower power output (e.g., for small office zones or boardroom paging), consult the wider Valcom paging product family for lower-wattage variants. If multiple horns must be driven from a single amplifier to minimize equipment count, a centralized amplifier paired with passive horns may be more efficient. For facilities with extremely high ambient noise (heavy manufacturing floors), validate that 30 watts provides adequate SPL at your coverage distance; decibel calculations and field testing should precede procurement.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Valcom V-1038 in three facility paging overhauls over the past 18 months. The key differentiator is the built-in 30-watt amplifier. In each case, it eliminated the need for a centralized amplifier chassis and simplified the cabling topology—a real win when you're retrofitting paging into a multi-floor office or a warehouse with distributed zones. The V-1038 makes sense when you're trading single-point-of-failure risk for per-zone independence.
Technical Highlights:
- 30-Watt Self-Contained Amplification: Removes dependency on remote amplifier distribution. Each V-1038 operates independently with its own power and audio input, so a failure in one zone doesn't cascade to others. Field-level volume control (integrated dial) means you can balance SPL across zones post-installation without touching a central mixer.
- Microphone Input Compatibility: Direct microphone support enables emergency notifications and live paging. No intermediate audio interface required—plug a paging station or emergency panel directly into the horn and you're operational. This simplicity is critical in emergency evacuation scenarios where setup speed and reliability matter.
- Horn Efficiency: Acoustic horn projection reduces the number of endpoints required to cover a given floor plan. In a 5,000 sq ft open warehouse, you might deploy two V-1038 horns where a non-horn speaker design would require three or four units—a meaningful capital and installation labor savings.
Deployment Considerations:
- One-Way Audio Only: The V-1038 cannot receive audio from remote stations—it is paging and announcement only. If your use case includes two-way communication (e.g., warehouse zones calling back to a control room), you need a different architecture altogether.
- 30W Power Ceiling: This is a hard architectural limit. In high-noise environments (metal fabrication, loading docks), validate SPL math before committing. A 30-watt horn at 10 feet in a quiet office will sound fine; the same horn at 30 feet in a shipping warehouse with forklifts running may be marginal. Field testing is your friend here.
- Mounting Footprint: Wall-mount installations are straightforward, but verify wall construction can support the weight and bracket load. Rack mounting works well in central control rooms but requires coordinated power and audio runs from the rack to distributed zones.
The V-1038 is strongest in multi-zone facilities where per-endpoint amplification and installation simplicity outweigh the need for centralized equipment scaling. It's a solid fit for emergency notification integration in schools, hospitals, and corporate offices where paging is part of a broader life-safety strategy.
Frequently Asked Questions
Q: Can the Valcom V-1038 be used for two-way communication?
A: No. The V-1038 is a one-way paging horn. It accepts audio input (from a microphone, paging station, or audio source) and projects it as announcements. There is no return audio channel or talk-back capability built in.
Q: What power does the V-1038 require?
A: The evidence provided does not specify the input power voltage or wattage draw. Consult the manufacturer datasheet or contact the vendor for power supply requirements before finalizing your installation design.
Q: Is the V-1038 suitable for outdoor installation?
A: The evidence does not specify an IP (ingress protection) rating. If outdoor or wet-location deployment is required, confirm environmental ratings with the manufacturer before purchase.
Q: Can I mount the V-1038 on a wall and in a rack?
A: Yes. The V-1038 supports both wall-mount and rack-mount installation, giving you flexibility to deploy endpoints in distributed zones (wall-mounted in a warehouse or office) or integrate into a central control room equipment rack.
Q: What is the coverage area for a single V-1038 unit?
A: Coverage depends on ambient noise, ceiling height, horn efficiency, and SPL requirements. A 30-watt horn typically covers 1,000–3,000 sq ft in a quiet-to-moderate noise environment. For specific facilities (high-noise manufacturing, large open warehouses), field testing or SPL calculations are recommended before committing to a deployment plan.
Q: Does the V-1038 support integration with an emergency notification system?
A: Yes. The V-1038 accepts microphone input and can integrate with emergency notification panels, paging stations, or mixing consoles. Its microphone support enables direct connection to emergency alert systems for facility-wide announcements and evacuation notifications.
