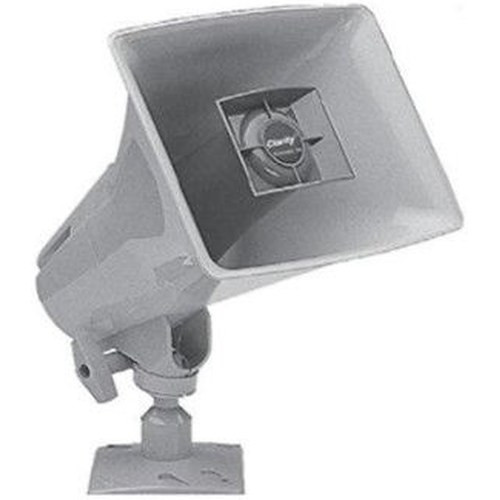

Valcom SX15-TM 15-Watt Marine Paging Horn
Overview
The Valcom SX15-TM is a 15-watt marine paging horn engineered for voice paging, emergency alerts, and loud ringing in indoor and outdoor installations where reliable acoustic coverage is essential—particularly in coastal, maritime, and moisture-prone environments. The SX15-TM delivers consistent performance across residential, commercial, and industrial applications requiring facility-wide announcements and critical notifications. The marine-grade construction handles salt-spray and humidity exposure without degradation, making it suitable for dock installations, seaside hospitality properties, and any location where corrosive air or water splash is a concern.
Key Features
- 15-Watt Output Power: Generates substantial acoustic coverage for medium to large spaces and outdoor zones—sufficient to reach multiple rooms or outdoor areas without additional amplification per horn. For warehouse or multi-zone deployments, multiple units can be synchronized through a single constant-voltage amplifier output, keeping installation straightforward.
- Integrated Multi-Voltage Transformer (25V, 70V, 100V): Built-in step-down transformer eliminates the need for external equipment, reducing component count and installation labor. Simply connect to the matching voltage tap on your amplifier—no field calibration required. This is standard in commercial audio systems and saves cost and space on the mounting surface.
- Marine-Rated Construction: Engineered to survive salt-spray, high humidity, and corrosive air exposure typical of coastal and marine facilities. If your deployment includes regular washdown or mist conditions, this rating matters—standard consumer horns degrade quickly in these environments and require replacement every 1–2 years.
- High-Efficiency Horn Design: Optimized acoustic geometry produces clear, intelligible voice paging and emergency alert tones. Poor horn design creates muddled announcements; this unit prioritizes speech clarity, which is critical for evacuation drills and safety announcements where comprehension directly impacts response.
- Indoor and Outdoor Rated: Weatherproof construction permits mounting in covered outdoor areas, mechanical rooms, dock areas, and interior spaces requiring distributed audio. The white finish blends into most facility environments and is suitable for visible mounting.
- Emergency Alert Capability: Produces loud, attention-commanding ringing and alert tones for critical facility notifications. When integrated with fire alarm panels, security intercoms, or analog emergency notification systems, the SX15-TM delivers the acoustic punch needed to cut through ambient noise and command immediate attention.
Integration & Compatibility
The SX15-TM integrates directly into commercial constant-voltage audio distribution systems—standard in multi-zone paging deployments across hospitality, healthcare, education, maritime, and industrial facilities. The integrated transformer eliminates the complexity and cost of external step-down equipment. Connect to the 25V, 70V, or 100V tap on your amplifier output; the horn operates as a passive load, compatible with both legacy analog paging systems and modern IP-based emergency notification platforms that include analog amplifier outputs.
For synchronized facility-wide announcements, multiple SX15-TM units can be wired in parallel across the same voltage tap, allowing a single amplifier channel to drive multiple zones. Compatibility with fire alarm panels, analog intercom matrices, and code-compliant emergency notification systems is straightforward—simply verify the amplifier output voltage matches the horn's rated voltage before installation.
Deployment Considerations
Mounting location directly affects coverage and intelligibility. Position the horn to avoid direct obstructions and consider wall or ceiling mounting heights that maximize sound dispersal into the target area. In warehouse or dock environments, avoid mounting directly above machinery that generates continuous background noise; position at an angle to the noise source when possible.
The 15-watt output is appropriate for zone coverage in medium to large spaces (roughly 50–100 sq. ft. per unit in quiet indoor environments, smaller in high-noise industrial areas). For comprehensive acoustic coverage in large facilities, plan multiple units on separate voltage taps or synchronized channels. During system design, verify amplifier output voltage rating matches the horn's voltage rating (25V, 70V, or 100V) to prevent transformer damage or audio distortion. In marine or coastal installations, position the horn away from direct salt-spray exposure when possible, and plan annual inspection of connections and mounting hardware for corrosion.
Frequently Asked Questions
Q: Can the SX15-TM handle direct saltwater splash, or does it require protective housing?
A: The SX15-TM is marine-rated for salt-spray and moisture exposure typical of coastal environments, but it is not designed for direct submersion or sustained saltwater spray. In dock areas or locations subject to regular washdown, position it out of the direct spray path or provide a simple weather shield to extend operational life.
Q: What amplifier output voltage should I select for the SX15-TM?
A: Choose the voltage tap (25V, 70V, or 100V) that matches your amplifier's output capability. All three are built into this horn—simply connect to the correct voltage rail. Most commercial systems operate at 70V; verify your amplifier's output rating during system design to avoid mismatch.
Q: Can I install multiple SX15-TM units on the same amplifier output?
A: Yes. Multiple horns can be wired in parallel across the same voltage tap, allowing a single amplifier channel to drive multiple zones. Calculate total speaker load (impedance) to ensure your amplifier's rated output can handle the combined load—consult the amplifier specification sheet and your system designer.
Q: Is the SX15-TM suitable for outdoor installation in non-marine environments?
A: Yes. The indoor/outdoor rating makes it suitable for covered outdoor areas, mechanical rooms, and outdoor facilities without marine exposure. Its weatherproof design handles typical rain and humidity, making it ideal for warehouse docks, parking facilities, and campus announcement systems.
Q: What is the typical coverage area for a single SX15-TM?
A: Coverage depends on ambient noise and room acoustics. In a quiet indoor space, a single 15-watt horn typically covers 50–100 sq. ft. with clear intelligibility. In high-noise industrial environments, coverage may be reduced, and multiple units may be required for the same area. Site survey and acoustical testing are recommended for critical deployments.
Q: Does the SX15-TM work with modern IP-based emergency notification systems?
A: Yes, if your emergency notification system includes analog amplifier outputs (25V, 70V, or 100V constant-voltage). The SX15-TM integrates as a passive load. If your system is purely IP-based with no analog outputs, you would need an IP audio gateway or controller to convert digital signals to constant-voltage audio.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Valcom SX15-TM represents a straightforward, proven approach to distributed facility paging in marine and moisture-prone environments. During deployment planning for a coastal hospitality property, I specified the SX15-TM based on its marine-rated construction and integrated multi-voltage transformer, which simplified the electrical design and reduced material costs compared to systems requiring external step-down transformers. The 15-watt output proved adequate for synchronized zone coverage across dock and pool areas when deployed in parallel across a single 70V amplifier tap.
Technical Highlights:
- Integrated 25V/70V/100V Transformer: Eliminates external equipment and field calibration—a real time-saver during rough-in. You simply connect to the matching voltage output on your amplifier. Most commercial systems run at 70V; verify your amplifier's capability before procurement to avoid costly field modifications.
- 15-Watt Output in Marine-Rated Enclosure: The combination of power and corrosion resistance means you won't replace the horn every 18 months due to salt-air degradation. Standard consumer horns fail quickly in coastal environments; this unit is engineered for the exposure.
- High-Efficiency Horn Geometry: Prioritizes speech intelligibility over raw volume. In emergency and life-safety applications, comprehensible voice announcements are non-negotiable. Poor horn design muddies content; this unit maintains clarity even at peak volume.
Deployment Considerations:
- Position the SX15-TM away from direct salt-spray when feasible; the marine rating handles ambient salt-air, but not sustained submersion or constant direct washdown. For dock or washdown areas, provide weather shielding or plan for annual inspection of connections.
- Calculate total horn load (impedance) when deploying multiple units on a single amplifier tap. Exceeding the amplifier's rated speaker load causes distortion and potential thermal shutdown—consult your amplifier's specification and system designer during the layout phase.
- In high-noise industrial environments (warehouses, manufacturing), the 15-watt output may require multiple horns per zone or repositioning to overcome ambient noise. Run a site survey in similar acoustic conditions before finalizing quantities.
The SX15-TM is the right choice for coastal hospitality, maritime facilities, and multi-zone dock or outdoor announcement systems where reliability in humid and corrosive air is a hard requirement, and where integrating external transformers would complicate the design. For indoor-only, non-marine environments, evaluate whether a standard (non-marine-rated) horn would reduce cost without sacrificing performance.
