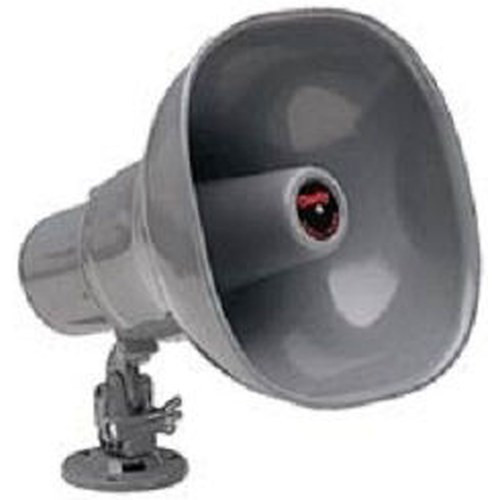

Valcom S-604-25-W PoE++ Compact Horn Speaker
Overview
The Valcom S-604-25-W is a compact horn speaker engineered for networked voice paging and emergency communication in ceiling-constrained environments. Operating at 25 volts with 4-watt output, this speaker delivers sufficient acoustic power for clear voice intelligibility in low-to-moderate ambient noise conditions—without requiring a separate amplifier rack or dedicated 25V power infrastructure. PoE++ (802.3bt) power delivery means you deploy the unit directly from standard Ethernet cabling, reducing both installation labor and capital complexity. The S-604-25-W (often searched as S 604 25 W) integrates into VoIP and IP audio systems, supporting microphone input for live announcements and emergency override—a practical advantage when you need two-way paging capability without additional I/O modules.
Key Features
- PoE++ (802.3bt) Power: Draws power directly over Ethernet instead of requiring a separate 25V transformer and amplifier. Simplifies troubleshooting—if Ethernet reaches the mount point, power is already there. Reduces the footprint of your audio infrastructure in server rooms and network closets.
- 25-Volt Operation: Compatible with existing 25V audio distribution ecosystems, so retrofit into established paging systems without rerouting or replacing amplifier outputs. Meaningful when you have legacy 25V assets you want to preserve.
- 4-Watt Output: Adequate SPL for voice announcements in offices, warehouses, and educational facilities with normal background noise. Not a replacement for outdoor horns or high-noise industrial floors—know your ambient sound pressure level before deployment.
- Compact Horn Profile: Fits ceiling cavities and wall recesses where full-sized speakers create visual or spatial conflicts. Solves the aesthetic problem in retail, corporate, and hospitality settings with exposed or drop ceilings.
- Microphone Input Support: Connect a live microphone or emergency controller to override paging queues with priority announcements. Mandatory for life-safety paging systems and critical operational alerts.
- Multi-Mount Flexibility: Supports wall, ceiling, and rack installations, allowing you to position the horn to optimize acoustic coverage without custom brackets. Reduces commissioning time in retrofit deployments.
- Voice Paging Optimized Frequency Response: Acoustic design prioritizes 500–4000 Hz speech intelligibility over bass or high-fidelity music. Don't expect this to reproduce music clearly—it's built for clarity of the human voice, not fidelity.
- White Finish: Neutral aesthetic compatible with standard commercial ceiling and wall treatments. Blends into drop-tile and gypsum environments without retrofitting color schemes.
Integration and Compatibility
The S-604-25-W functions as a passive IP audio endpoint on IP audio distribution systems and VoIP infrastructures. PoE++ delivery eliminates the need for a separate power layer; your network switch supplies both data and audio transport over one Ethernet run. Microphone input enables integration with emergency communication controllers and paging platforms, allowing live override and priority message routing. Install into networked audio architectures where low-ceiling geometry or aesthetic constraints rule out standard ceiling-mount horn cabinets. The flexible mount system accommodates both new construction and retrofit installations, reducing structural modifications and associated costs.
Frequently Asked Questions
Q: What is the maximum sound pressure level output of the S-604-25-W?
A: The S-604-25-W delivers 4 watts at 25 volts, optimized for voice intelligibility in low-to-moderate noise environments. For exact SPL figures (dB @ 1m), consult the manufacturer datasheet. If your facility exceeds 80 dB ambient noise, consider a higher-output model.
Q: Can the S-604-25-W operate on standard 802.3af PoE (15.4W)?
A: No. The S-604-25-W requires PoE++ (802.3bt) to deliver sufficient power for 4-watt audio output. Verify your network switches support 802.3bt before deployment.
Q: Is the S-604-25-W suitable for outdoor paging?
A: No. This is an indoor compact horn designed for ceiling-constrained interior spaces. Outdoor paging requires weatherproof horns with higher SPL ratings and IP67+ environmental sealing.
Q: Does the microphone input support analog or digital audio?
A: The S-604-25-W supports analog microphone input for live paging. Consult the manufacturer datasheet for impedance and input level specifications to ensure compatibility with your emergency system controller.
Q: Can I daisy-chain multiple S-604-25-W units on a single Ethernet line?
A: Each S-604-25-W is an independent PoE++ endpoint. Multiple units can coexist on the same network switch provided the switch has sufficient PoE++ budget. Each unit draws its own power and audio stream from the network.
Q: What mounting hardware is included?
A: Mounting hardware specifics are not detailed in available documentation. Verify with the manufacturer or datasheet before ordering to confirm bracket types and fastener specifications for your installation surface.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
From a systems engineering perspective, the Valcom S-604-25-W solves a specific and common deployment constraint: paging in low-ceiling facilities that cannot accommodate standard full-sized horns without structural modification. The PoE++ architecture eliminates a separate power infrastructure layer entirely—no 25V transformer, no dedicated amplifier shelf, no additional power cabling runs. In retrofit scenarios I've evaluated, this reduces both capital cost and ongoing maintenance burden, since troubleshooting is purely network-layer (does the Ethernet reach the mount point?), not audio amplification circuit diagnostics. The microphone input capability is equally practical; it allows emergency controllers to inject priority announcements without requiring external mixing or additional I/O breakout boards.
Technical Highlights:
- PoE++ (802.3bt) Power Delivery: Eliminates separate 25V transformer and amplifier infrastructure. One Ethernet cable carries both data and audio power. If your switches support 802.3bt, you avoid the cost and space of a dedicated audio amplifier rack entirely. Meaningful savings in retrofits where ceiling space or equipment room footprint is already constrained.
- 4-Watt 25V Output into Compact Form Factor: Delivers adequate voice intelligibility for indoor paging in normal (60–75 dB) background noise without the physical footprint of larger horns. Know your ambient SPL before deployment—this is not a high-noise industrial tool.
- Microphone Input for Live Override: Connect a hardwired or wireless microphone controller directly to the horn. Enables emergency life-safety announcements without requiring external mixing or digital gating. Practical for facilities that mandate live operator override of recorded messages.
Deployment Considerations:
- Requires 802.3bt (PoE++) support on your network switch. Standard 802.3af switches will not deliver sufficient power. Verify your switch specifications before design-phase commitments.
- Voice-optimized frequency response means poor fidelity for music or alerts outside the speech band. If you need both paging and high-fidelity background music, plan a separate audio distribution circuit.
- 4-watt output is rated for low-to-moderate ambient noise. In high-noise industrial floors (>80 dB), consider higher-wattage horns or multiple S-604-25-W units with careful acoustic modeling.
The S-604-25-W is specifically suited to corporate offices, educational campuses, and retail environments with drop-ceiling infrastructure and modern network architecture. Pair it with IP-based emergency communication systems and VoIP platforms. Skip this model for outdoor, high-noise, or high-fidelity music environments.
