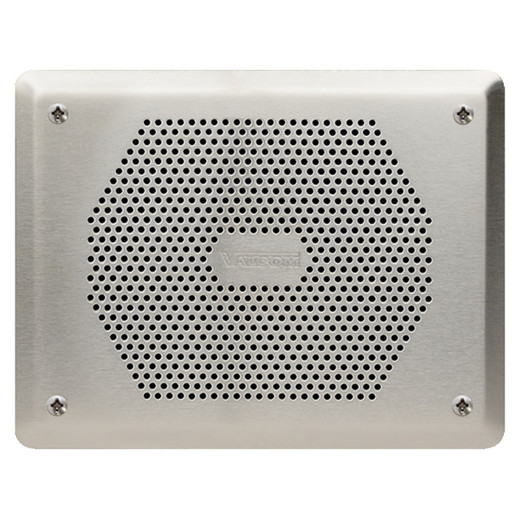

Valcom S-604-BGE FlexHorn 70V Compact Wall Speaker
Overview
The Valcom S-604-BGE is a compact horn speaker engineered for 70-volt distributed audio systems requiring voice paging and background music delivery in cost-effective, space-constrained environments. Designed with low-ceiling installations in mind, the S-604-BGE delivers 4 watts of output and is suitable for areas with low to moderate noise levels, making it ideal for retail, educational, hospitality, and light commercial deployments where mounting real estate and acoustic coverage must be balanced.
This wall-mount FlexHorn provides installers with a flexible solution that integrates into existing 70V audio infrastructure without requiring dedicated amplifier channels per speaker. The beige finish blends into standard ceiling and wall treatments, reducing visual prominence in customer-facing spaces.
Key Features
- 4-Watt Output: Delivers adequate volume for voice paging and background music in low to moderate noise environments
- 70-Volt Operation: Compatible with standard commercial distributed audio systems; enables long cable runs and multiple speakers on a single amplifier channel
- Compact Horn Design: Specifically engineered for areas with low ceiling heights where full-size horns are impractical
- Wall-Mount Configuration: Installs directly to walls, reducing ceiling penetration and simplifying retrofit projects
- Microphone Support: Accepts microphone input for live paging and announcements; enables emergency notification integration
- Beige Finish: Neutral color option minimizes visual impact in administrative offices, corridors, and customer zones
Integration & Deployment Considerations
The S-604-BGE connects to 70-volt amplifier outputs and supports microphone input for voice paging applications. Installers should verify amplifier channel capacity and load calculations when designing multi-speaker systems. The compact form factor makes it suitable for retrofit installations where ceiling space is limited or aesthetic discretion is required. Typical deployments include retail showrooms, office corridors, small conference areas, and light industrial facilities where background music and emergency announcements must coexist.
For areas requiring higher output or outdoor weathering, larger Valcom horn models or multi-unit configurations should be evaluated. The S-604-BGE operates in low to moderate noise environments; deployment in high-noise industrial or outdoor settings may require supplemental amplification or repositioning.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Valcom S-604-BGE during planning for several light-commercial audio projects, and its compact design solves a real problem: many existing facilities have low drop ceilings or heritage plaster ceilings that cannot accommodate standard 6- or 8-inch horns. The S-604-BGE's footprint and wall-mount option make retrofit work faster and cleaner, particularly when upgrading from older analog systems to managed 70V platforms.
Technical Highlights:
- Wall-Mount Flexibility: Eliminates the need for ceiling reinforcement or conduit routing through occupied spaces; reduces installation labor in retrofit scenarios
- Microphone Input: Direct microphone support simplifies emergency announcement integration and reduces the need for external mixing equipment in smaller deployments
- 4-Watt Output in Low-Noise Zones: Adequate for office corridors, retail zones, and light commercial spaces where ambient noise does not exceed 65–70 dB; verify sound-pressure requirements before specifying
Deployment Considerations:
- Calculate 70V amplifier load carefully when daisy-chaining multiple units; most commercial amplifiers support 4–8 speakers per channel depending on wattage and impedance
- Verify microphone input impedance and gain levels against your paging console or VoIP gateway to avoid feedback or level mismatch during live announcements
- In noise-critical environments (open-plan offices, libraries), position the S-604-BGE at ear level on walls adjacent to seating zones for better intelligibility
The S-604-BGE is a practical choice for integrators managing space constraints or customer discretion requirements. It bridges the gap between full-size commercial horns and ceiling-mounted speakers, and the microphone-ready design means fewer auxiliary components. I'd recommend it for retail, light office, and hospitality projects where compact form and wall aesthetics matter as much as audio coverage.
