APC by Schneider Electric UPS - External - Online - AC 120/208/220 V - 8 KW - 1 - SUVTP10KF3B4S

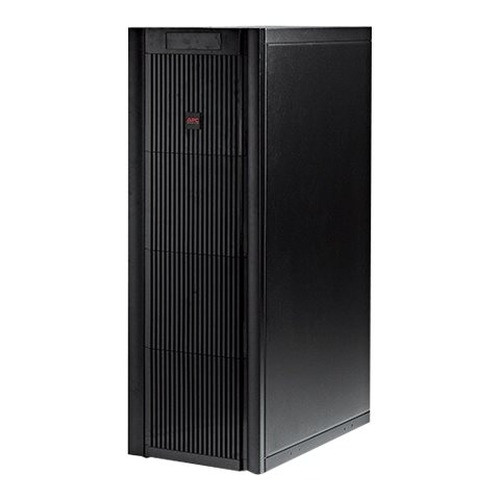

APC by Schneider Electric SUVTP10KF3B4S Online Double-Conversion Tower UPS

Overview

The APC by Schneider Electric SUVTP10KF3B4S is a 10,000VA / 8kW online double-conversion uninterruptible power supply from the VT Series, engineered for three-phase-fed commercial and enterprise environments where clean, continuously conditioned power is non-negotiable. Unlike standby or line-interactive designs that switch to battery only on outage, a double-conversion (online) topology regenerates AC output from DC at all times — meaning your load never sees raw utility power. Voltage spikes, frequency drift, and brownouts are absorbed silently without any transfer gap.

At 10KVA / 8kW with a 208V three-phase input and selectable 120/208V output, this unit is sized for mid-density equipment rooms, network closets, server racks, or IP surveillance head-end infrastructure where a single UPS needs to protect multiple loads simultaneously. The black tower chassis measures 149.9 cm H × 52.3 cm W × 81.3 cm D — plan your floor footprint accordingly, as this is not a rack-mount unit.

Key Features

• Online Double-Conversion Topology: The load runs off inverted DC power at all times, so there is zero transfer time to battery during an outage. For NVRs, servers, and network switches that log alarms on even a brief power interruption, this eliminates false-positive alerts and protects drives from mid-write shutdowns.
• 10,000VA / 8kW Capacity: With a 0.8 power factor, the rated 8kW output matches the VA rating cleanly — no hidden derating surprise. Size your connected load at 80% or below (6.4kW) to preserve runtime headroom and extend battery life.
• 208V Three-Phase Input: Designed to draw from a standard 208V commercial panel, which is the dominant feed voltage in US data closets and equipment rooms. This avoids the step-down transformer overhead you'd otherwise need to power the unit from single-phase 120V circuits.
• Dual Output Voltage (120/208V): The selectable output supports both standard 120V single-phase loads (workstations, IP cameras, PoE switches) and 208V equipment (servers, storage arrays, high-draw network gear) from a single UPS — reducing the number of discrete power protection devices in a mixed-voltage room.
• Ethernet 10 Management Port: The onboard management interface allows remote monitoring and control over the network — check battery status, configure shutdown sequences, and receive alerts without physically accessing the unit. In a 24/7 surveillance or access-control environment, this means overnight staff or a remote NOC can respond to power events proactively.
• External Battery Ready (VT Series): The SUVTP10KF3B4S is part of APC's VT Series, which supports external battery modules. When runtime requirements exceed what the internal batteries provide — common in facilities needing 30+ minutes of bridge power — you can add modules without replacing the UPS itself.
• Tower Form Factor: At 149.9 cm tall, the unit stands as a floor-mounted tower. This suits dedicated UPS alcoves, equipment room floors, or alongside server racks where vertical rack space is at a premium and the UPS can sit adjacent rather than inline.

Integration & Compatibility

The SUVTP10KF3B4S integrates into standard commercial power infrastructure via its 208V three-phase input. The Ethernet management port supports network-based monitoring, enabling integration with building management systems, DCIM platforms, or UPS management software for automated shutdown and event logging. Output flexibility — 120V and 208V simultaneously — means a single unit can protect mixed-voltage loads common in IP security head-end rooms housing NVRs, PoE switches, servers, and workstations side by side.

For environments already running APC by Schneider Electric power infrastructure, the VT Series fits within APC's ecosystem for centralized management. If you are evaluating UPS solutions alongside your network video recorders or PoE network switches, confirm that your combined load in watts does not exceed 6,400W (80% of rated capacity) to maintain adequate runtime margin. For guidance on sizing power protection across a multi-device security installation, see the power and UPS category for compatible capacity options.

Frequently Asked Questions

Q: What is the difference between the VA rating and the watt (kW) rating on the SUVTP10KF3B4S?

A: The SUVTP10KF3B4S is rated at 10,000VA and 8kW, reflecting a 0.8 power factor. Real-world loads draw watts, not volt-amps. Plan your connected equipment's actual watt draw — not VA — and keep it at or below 6,400W (80% of 8kW) for safe, long-term operation and meaningful runtime.

Q: Is the SUVTP10KF3B4S a rack-mount or floor-standing unit?

A: It is a tower (floor-standing) unit. The chassis measures 149.9 cm H × 52.3 cm W × 81.3 cm D, so plan for dedicated floor space. It is not designed for standard 19-inch rack mounting.

Q: What input voltage does the SUVTP10KF3B4S require?

A: The unit requires a 208V input, typically drawn from a three-phase commercial panel. It is not intended for standard 120V single-phase residential or small-office circuits.

Q: Can the SUVTP10KF3B4S be monitored remotely?

A: Yes. It includes an Ethernet 10 management port for network-based monitoring, remote status checks, and integration with UPS management or building automation systems.

Q: Can runtime be extended on the SUVTP10KF3B4S?

A: As part of the VT Series, this unit supports external battery modules, allowing runtime to be extended beyond internal battery capacity without replacing the core UPS unit.

Marty Allison

When I look at the SUVTP10KF3B4S, the spec that drives the deployment conversation is the 10,000VA / 8kW online double-conversion rating at 208V three-phase input — that combination tells you exactly what class of installation this belongs in. This is not a plug-in UPS for a single workstation; it is floor infrastructure for a mid-density equipment room where the cost of an unplanned shutdown — lost recordings, corrupted NVR databases, dropped access control events — is measured in incident reports, not just downtime minutes.

Technical Highlights:

• Online Double-Conversion: Zero transfer time means NVRs and servers on this unit never see a power gap during utility outages — drives stay in a clean write state and alarm logs stay accurate.
• 8kW Real Power at 0.8 PF: The VA-to-watt ratio is transparent here — 8kW is what you actually get to load. Keep connected equipment below 6,400W (80%) and you preserve both runtime and inverter thermal margin.
• Ethernet Management: Remote visibility into battery health and load levels matters in 24/7 surveillance rooms where physical access to the UPS is not routine — the management port lets NOC staff monitor and respond without a site visit.

Deployment Considerations:

• The tower form factor at 149.9 cm tall requires dedicated floor space adjacent to your rack row — confirm your equipment room layout accommodates the 52.3 cm × 81.3 cm footprint before ordering.
• At 1,115 lbs, the SUVTP10KF3B4S requires a reinforced floor and appropriate lifting equipment for positioning — factor this into your installation planning, especially in upper-floor equipment rooms with load-bearing constraints.

This unit fits best in a purpose-built security operations center or enterprise equipment room running a mixed 120V/208V load profile — NVRs, access control servers, PoE switch infrastructure — where a single high-capacity online UPS simplifies the power protection architecture and the Ethernet management port ties into an existing NOC monitoring workflow.
