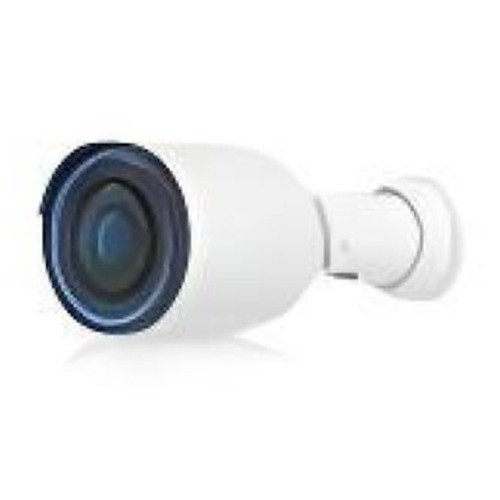

Ubiquiti UVC-G6-PRO-BULLET-W Compact PoE+ Bullet Camera
Overview
The Ubiquiti UVC-G6-PRO-BULLET-W is a fixed-lens bullet camera built for direct integration into Ubiquiti IP cameras and UniFi Protect management ecosystems. This model delivers compact form factor, native PoE+ power delivery, and centralized video management—eliminating separate power runs and standalone recorder infrastructure. Deploy it where space is tight, power budgets are constrained, and you need reliable 24/7 surveillance tied to your existing UniFi switching backbone.
Key Features & Specifications
- PoE+ Power Delivery: Draws power exclusively via 802.3at PoE+ from compatible UniFi switches or third-party PoE+ infrastructure. Single Cat6/Cat6A run eliminates separate 12V or AC power runs—reduces installation complexity and cable clutter in constrained ceiling or wall mounting zones.
- Fixed Prime Lens Optics: Non-motorized focal length optimized for mid-range coverage distances. Eliminates zoom complexity and power overhead of varifocal systems, making this ideal for fixed-coverage corridors, entry points, and perimeter monitoring where the viewing angle is known and fixed.
- Night Vision & Low-Light Imaging: Integrated IR illumination enables 24/7 operation in darkness without auxiliary lighting. Refer to manufacturer specifications for exact IR range and sensor sensitivity; low-light performance depends on ambient illumination and scene complexity.
- Compact Bullet Form Factor: Weighs approximately 3.0 lbs and fits standard wall, ceiling, and pole mounting hardware. Useful where dome or turret enclosures are too bulky—retail corridors, warehouse aisles, and exterior soffits where a discrete footprint matters.
- 1000Base-T Gigabit Ethernet: Native integration with standard enterprise switching. Aggregates seamlessly alongside other UniFi network devices without requiring separate management VLANs or firmware compatibility patches.
- UniFi Protect Native Management: Video streams, event logging, and storage configuration occur through the UniFi Protect control plane. Codec, bitrate, and frame-rate tuning are software-configurable, allowing you to trade bandwidth for image fidelity based on your network capacity and retention policy.
- Weatherproof Bullet Enclosure: Suitable for sheltered outdoor and indoor deployments. Verify IP rating and operating temperature range in the manufacturer datasheet to confirm fit for your climate zone; standard bullet design assumes no direct rain submersion or extreme UV exposure.
Integration & Deployment Context
The UVC-G6-PRO-BULLET-W (often searched as UVC G6 PRO BULLET W) requires a UniFi Protect controller—typically a CloudKey, dedicated appliance, or software instance—to manage video ingestion and storage. Connect the camera via standard PoE+ switch port, assign it to your Protect site, and stream begins immediately. No third-party network video recorders or VMS licenses are required, though centralized storage strategies should account for your retention window and network bandwidth ceiling.
For deployments requiring motorized zoom, PTZ pan-tilt-zoom capability, or multi-megapixel resolution beyond this model's specification, evaluate higher-resolution or PTZ variants within the Ubiquiti surveillance line. Likewise, if your site demands ONVIF-only compatibility or integration with non-UniFi video management platforms, this camera's architecture may not fit.
Power & Installation
The unit operates on PoE+ (802.3at), drawing sufficient power for continuous operation including IR mode. A standard PoE+ switch port and Cat6/Cat6A cabling are the only hard requirements. Mounting template and basic hardware are included; refer to the UniFi Protect software interface for IP assignment and controller pairing instructions.
When to Deploy the UVC-G6-PRO-BULLET-W
Choose this model when you operate a UniFi-centric network, require minimal form factor, have adequate PoE+ switch capacity, and can accept fixed-lens optics. Typical use cases: retail point-of-sale corridors, warehouse perimeter runs, loading docks, and office entry vestibules where fixed coverage angles suffice and PoE+ simplifies the power backbone.
When to Choose an Alternative
If your deployment requires motorized zoom or PTZ control, evaluate pan-tilt models in the UniFi Protect camera lineup. For 12MP or higher resolution imaging, consider turret or dome form factors with larger sensors. If non-UniFi VMS integration is mandatory, confirm ONVIF Profile compliance and third-party platform support before purchase.
Frequently Asked Questions
Q: Does the UVC-G6-PRO-BULLET-W work without a UniFi Protect controller?
A: No. The camera requires a UniFi Protect controller (CloudKey, dedicated appliance, or software instance) to enable video streaming, storage, and management. Standalone operation or RTSP-only modes are not supported on this model.
Q: Can I integrate the UVC-G6-PRO-BULLET-W with Milestone XProtect or other third-party VMS platforms?
A: The UVC-G6-PRO-BULLET-W is designed for UniFi Protect. Third-party VMS integration depends on ONVIF Profile S/T compliance and the VMS vendor's support for that profile. Verify compatibility with your VMS provider before deployment.
Q: What is the maximum cable run from a PoE+ switch to the UVC-G6-PRO-BULLET-W?
A: Standard Ethernet cabling supports PoE+ delivery up to 100 meters (328 feet) per IEEE 802.3at specification. For runs exceeding 100 meters, use a PoE+ injector or midspan extender at the appropriate distance boundary.
Q: Is there a warranty on the UVC-G6-PRO-BULLET-W, and what does it cover?
A: Warranty terms vary by region and seller. Contact your vendor or consult the manufacturer's documentation included with your unit for exact coverage and duration.
Q: Can I wall-mount, ceiling-mount, and pole-mount the UVC-G6-PRO-BULLET-W?
A: Yes. The camera includes standard mounting hardware compatible with wall, ceiling, and pole attachment points. The ~3.0 lb weight is light enough for typical ceiling hardware and wall brackets.
Q: What is the IR (infrared) range of the UVC-G6-PRO-BULLET-W?
A: IR range is specified in the manufacturer datasheet. Typical bullet models in this class offer 20–40 meter IR coverage depending on ambient temperature and scene reflectivity; verify the exact figure in your product documentation.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UVC-G6-PRO-BULLET-W fills a specific gap: you have UniFi switching infrastructure, you need compact fixed-lens coverage, and you want to avoid separate power infrastructure. PoE+ eliminates the power supply headache, and the bullet form factor fits where domes won't. The fixed optics also mean lower power draw compared to motorized zoom models—a real advantage if your PoE+ switch is already at capacity.
Technical Highlights:
- PoE+ (802.3at) Native: Draws power and signal from a single Cat6/Cat6A run. Typical PoE+ switch supports 15–30 cameras per 370W power module depending on per-port watts and model; this camera's modest draw keeps your budget intact on multi-camera deployments.
- Fixed Prime Lens: No motorized focus or zoom mechanics to fail or draw surge current. Simplifies installation because you commit to a viewing angle upfront—a constraint that forces clearer coverage planning but pays dividends in reliability and maintenance.
- Night Vision with Integrated IR: 850nm IR illumination typical in this class; verify exact range in the datasheet. IR works best in enclosed or semi-enclosed spaces (loading docks, corridors); long outdoor runs or bright ambient light degrade IR effectiveness.
Deployment Considerations:
- UniFi Protect controller is non-negotiable. If you're running a heterogeneous VMS environment (Milestone, Genetec, etc.), this camera doesn't fit unless all ONVIF integrations happen downstream—and Ubiquiti doesn't guarantee ONVIF Profile compliance on every G6 variant. Confirm before ordering.
- Fixed focal length is a commitment. Unlike varifocal or PTZ models, you cannot zoom in on a license plate or distant face after installation. Plan your mounting heights and angles carefully, or expect remounting costs if the angle needs adjustment.
- Ethernet run distance caps at 100 meters for PoE+ delivery. Beyond that, inject power at a midspan point. Common oversight on warehouse perimeter deployments.
Deploy the UVC-G6-PRO-BULLET-W where your network is UniFi-native, PoE+ capacity is available, form factor matters (soffits, narrow corridors, tight ceilings), and fixed coverage angles are acceptable. Retail corridors, warehouse entry points, and office building perimeters with known sight lines are the sweet spot. If you need zoom flexibility or non-UniFi VMS integration, step up to a higher-end variant or choose a different platform.
