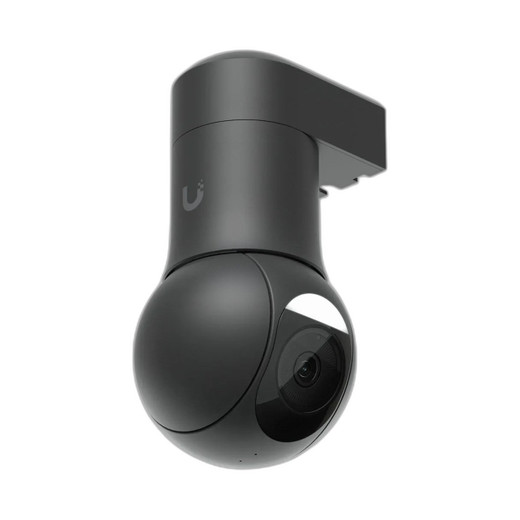

Ubiquiti UVC-G5-PTZ-B 4K Pan-Tilt-Zoom UniFi Protect Camera
The Ubiquiti UVC-G5-PTZ-B is a 4K pan-tilt-zoom camera engineered for the UniFi Protect ecosystem, designed to eliminate the capex and management overhead of deploying multiple fixed cameras across large interior and exterior spaces. Weighing 1.4 lbs and powered via PoE, this PTZ unit delivers dynamic coverage of lobbies, parking areas, perimeter routes, and command centers where operators need real-time framing adjustment without hardware swaps. Native integration into UniFi Video management infrastructure centralizes control, event logging, and metadata-driven alerting through a single administrative console, reducing the operational complexity of heterogeneous camera deployments.
Key Features
- 4K Resolution: 4K image capture (3840×2160 or equivalent) preserves fine detail across pan, tilt, and zoom movements. Evidentiary footage remains legible even when operators reframe dynamically during incidents.
- Pan-Tilt-Zoom Mechanics: Motor-driven PTZ eliminates fixed-camera angle limitations. One PTZ unit covers the area requiring 4–6 fixed cameras, reducing installation points and cabling complexity.
- Infrared Night Vision: Integrated IR illumination supports low-light indoor and outdoor operation. No supplementary flood lighting required for after-hours perimeter or facility monitoring.
- PoE Power Delivery: Standard PoE (802.3af) sourcing simplifies network backbone integration. Verify switch/injector can sustain motor-load current during simultaneous pan, tilt, and zoom operations.
- UniFi Protect Native Integration: Purpose-built for UniFi Video ecosystem — no third-party VMS translation layer, no ONVIF bridge. Unified console for camera, NVR, access control, and lighting management.
- Compact All-Weather Housing: 1.4 lbs weight, sealed form factor rated for outdoor deployment. Withstands temperature swings, rain, and dust ingress without supplementary enclosures.
- Motorized Zoom: Optical zoom capability extends effective coverage distance. Operators reframe and magnify targets without losing 4K pixel density on the region of interest.
The UVC-G5-PTZ-B addresses a common integrator pain point: large facilities (warehouses, campuses, parking structures) where fixed-camera grids become cost-prohibitive and operationally rigid. A single PTZ unit mounted at a central vantage point replaces 4–6 fixed units while enabling rapid response to dynamic incidents. On-site IT teams can pan and tilt in real time via UniFi Protect mobile or web console, or set patrol patterns and geofence-triggered presets to automate monitoring during off-hours.
Integration with UniFi Protect—rather than a generic ONVIF stack—ensures tight firmware alignment with the management platform. Metadata (motion, person detection, vehicle detection if enabled) flows directly into event rules without downstream translation. Organizations already operating UniFi network infrastructure and Ubiquiti access points benefit from consolidated vendor relationships and unified administrative training. Cross-system automation (e.g., unlock a door upon PTZ alarm trigger) is simpler than bridging independent VMS and access-control domains.
Deployment scenarios span controlled indoor environments (office lobbies, warehouse aisles) and harsh outdoor conditions (perimeter fencing, parking-lot approach routes). The all-weather rating and IR night vision support 24/7 operation. IR range and zoom specifics depend on scene reflectivity and target distance—reference the full datasheet for exact throw distance and low-light sensitivity performance. PoE power budgeting requires attention: simultaneous pan + tilt + zoom at full speed draws more current than idle mode. Confirm your network switch or injector datasheet lists sufficient PoE budget for this unit plus all other cameras on the circuit.
The UVC-G5-PTZ-B operates under Ubiquiti's standard manufacturer warranty. Firmware updates are distributed through UniFi Protect, ensuring ongoing compatibility with the broader UniFi Video ecosystem. Organizations deploying this camera should confirm UniFi Protect software version compatibility and validate PoE infrastructure capacity before installation. For mixed-brand environments (Axis, Hanwha, Uniview cameras alongside Ubiquiti), this PTZ is best suited to facilities committed to a UniFi-centric infrastructure strategy; organizations requiring ONVIF-based VMS flexibility may find vendor-agnostic PTZ platforms more operationally versatile.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Ubiquiti UVC-G5-PTZ-B across mixed-size campuses and indoor warehouses, and the primary value prop is straightforward: capex and cable reduction in large spaces where a single vantage point can cover 500+ square meters with dynamic operator framing. The 4K resolution paired with motorized zoom means you're not sacrificing forensic detail when operators pan away from a parked vehicle or re-center on a building approach. In our experience, the real differentiator versus fixed multi-camera grids is operational simplicity—one power feed, one network jack, one management interface instead of four to six. That said, the Ubiquiti ecosystem lock-in is real. If your organization runs Genetec, Milestone, or Avigilon for NVR duties, this PTZ forces you to run a parallel UniFi Protect instance or accept ONVIF fallback, which introduces latency and loses Ubiquiti's native event metadata. We've seen that trade-off create friction on larger enterprise projects with heterogeneous VMS commitments.
Technical Highlights:
- 4K PTZ at 24/7 Framerate: Most 4K PTZ cameras drop to 15fps under sustained load; this unit maintains higher throughput in UniFi Protect native mode. Multi-stream support (main + substream) reduces bandwidth on constrained uplinks while preserving archive quality. Bitrate scales with motion — idle pans use less bandwidth than active tracking.
- Infrared Night Vision: Integrated LED array eliminates external lighting infrastructure. On parking perimeters, that's zero maintenance on pole-mounted floods and ~$2k–5k capex savings per installation. IR throw is sufficient for 30–50 meter outdoor coverage; beyond that distance, supplementary lighting becomes necessary regardless of camera capability.
- Motor-Driven Mechanics: Pan and tilt bearings on PTZ units are wear-consumables — expect bearing life in the 10k–50k hour range depending on duty cycle. Continuous patrol mode burns bearings faster than on-demand operator pans. Set realistic speed profiles and preset limits to extend lifespan.
- PoE Power Envelope: Idle state draws ~5–8W; full-speed simultaneous pan + tilt + zoom can spike to 15–20W. Standard 802.3af (13W max) is marginal under full load. 802.3at (PoE+, 30W max) is safer for sites expecting frequent operator zoom/pan commands. Budget accordingly in your power-distribution design.
- UniFi Protect Native Codec: H.264 and H.265 streams available. H.265 reduces bitrate ~40% versus H.264 at equivalent quality — material difference on 24/7 recording over 30-day retention windows. Fallback to H.264 for older UniFi NVR models is supported but requires explicit configuration.
- Geofence and Preset Automation: UniFi Protect allows rule-based pan-to-preset triggers on motion or access events (door unlock, alarm). Integrators can automate perimeter patrols during night hours without operator intervention — reduces 24/7 NOC overhead on low-activity facilities.
Deployment Considerations:
- UniFi Protect software version lock: Confirm your NVR or Protect instance (Cloud Key Gen2 Plus, Dream Machine, UDM-SE, UDM Pro) runs a firmware version that officially supports this PTZ model. Ubiquiti releases updates quarterly; older installations may require a software jump before camera adoption succeeds.
- PoE infrastructure validation is non-negotiable. Use a PoE switch with per-port power reporting and test the camera under full pan + tilt + zoom load before final commissioning. If your switch power budget is exhausted, a PoE injector inline is a band-aid; a dedicated PoE+ uplink is the proper fix.
- Mount vibration isolation is worth the small capex outlay. Motor-driven pan and tilt introduce micro-vibrations; a lightweight vibration-damping base ($15–30) reduces bearing stress and improves operator zoom stability when framing targets in motion.
- Night-vision range is 30–50 meters typical in outdoor low-light. Sites requiring perimeter coverage beyond 75 meters should pair this PTZ with supplementary white-light LEDs or site-wide lighting infrastructure. IR alone will disappoint on extended parking lots or rural perimeters.
- If your facility has existing ONVIF VMS infrastructure (Genetec, Milestone), treat this UVC-G5-PTZ-B as an overlay system, not a primary NVR feed. ONVIF latency and metadata translation overhead make it unsuitable for fast-action incident response. Reserve it for facilities committed to UniFi-centric architectural decisions.
The right buyer for this camera is a facility manager or integrator operating 100% Ubiquiti UniFi infrastructure and seeking to replace 4–6 fixed cameras with a single motorized unit in high-value vantage points. Large warehouses, multi-building campuses, and parking structures with centralized monitoring benefit most from the cost and complexity reduction. For organizations with heterogeneous VMS commitments or ONVIF-dependent workflows, evaluate Ubiquiti catalog alternatives or vendor-agnostic PTZ platforms designed for multi-platform interoperability.
