Ubiquiti UNAS-PRO-8 2U Rack-Mount Network Attached Storage
Overview
The Ubiquiti UNAS-PRO-8 is a 2U rackmount NAS engineered for distributed file storage in security, enterprise, and warehouse automation environments. It houses 8 drive bays (2.5" or 3.5" HDD/SSD) plus 2 M.2 NVMe cache slots, allowing you to balance capacity with performance in a single chassis. Dual 10G SFP+ ports and one 10GbE RJ45 port deliver multi-Gbps throughput — critical when you're pulling footage or large datasets across a network without bottlenecking your infrastructure. A quad-core ARM Cortex-A57 processor and 16 GB of memory handle RAID 5, RAID 6, and RAID 10 configurations with automatic hot-spare failover, so hardware failure doesn't mean downtime.
Key Features
- Multi-Protocol Support (NFS, SMB): Works with existing Windows and Unix-based systems; no forced vendor lock-in on file access methods.
- Dual Redundant Power Supplies (550W each, AC/DC): Two independent PSU modules with automatic switchover ensure the NAS stays online during power events or maintenance. Max draw is 250W, so you're not straining your PDU.
- M.2 NVMe Cache (up to 4 TiB): Cache reads and writes to fast storage, then destages to spinning disk. Measurably faster for metadata-heavy workloads (like security system lookups) than HDD-only configs.
- RAID Configuration Flexibility: RAID 5 (one-disk fault tolerance), RAID 6 (two-disk fault tolerance), or RAID 10 (mirrored pairs). Choose based on your tolerance for rebuild time and capacity loss — RAID 6 adds overhead but protects against cascading failures during long rebuilds.
- Native Snapshot and Backup: Snapshots protect against ransomware and accidental deletion; backup can target remote UNASs, CIFS/SMB shares, or cloud (S3, Google Drive, OneDrive). Offsite replication without expensive third-party software.
- File Encryption at Rest: Data on disk is encrypted; credentials and keys stay isolated from network access. Complies with data-at-rest requirements common in regulated environments.
- NDAA Compliance + Global Certifications: FCC, CE, IC, SRRC certified; NDAA-compliant, eliminating vendor-origin concerns for US federal and defense integrators.
- Operating Range -5°C to 40°C (23°F to 104°F), 5–95% Noncondensing Humidity: Suitable for climate-controlled data closets, not outdoor or uninsulated warehouses. If you need to push temperature extremes, escalate to a ruggedized industrial NAS.

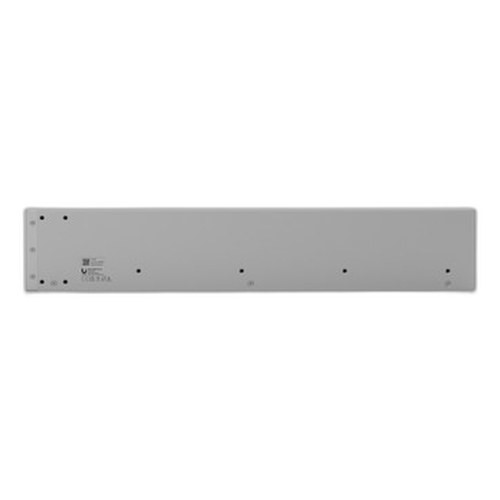

- Rack Mounting (600–1066 mm four-post racks with square holes): Standard 2U footprint fits any modern 19" rack. Bring your own rails if your rack uses different hole spacing.
Integration & Compatibility
The UNAS-PRO-8 pairs naturally with Ubiquiti network storage environments and integrates via ONVIF-compliant NVRs and video management systems. Its dual 10G SFP+ and 10GbE RJ45 ports mean you'll want a modern managed switch with matching connectivity to avoid becoming your own bandwidth bottleneck. For security surveillance specifically, it works as a centralized archive for multi-site IP camera deployments, offloading processing from edge recorders and centralizing retention policy management.
What's in the Box
- 1x UNAS-PRO-8 NAS unit
- Rack mount rails
- Power cables
- Installation documentation
When to Choose a Different Model
If you need higher throughput (40G+ SFP+ ports) or more bays, investigate larger Ubiquiti NAS models in the professional line. If your environment exceeds 40°C regularly or you require industrial-rated environmental tolerance, consider a specialized ruggedized appliance. For small deployments under 4 bays, lower-cost single-unit NAS models may be more cost-effective, though they sacrifice redundant power and multi-10G connectivity.
Frequently Asked Questions
Q: Is the UNAS-PRO-8 NDAA Section 889 compliant?
A: Yes. The UNAS-PRO-8 is NDAA-compliant and carries FCC, CE, IC, and SRRC certifications, making it suitable for federal and defense procurement.
Q: What's the warranty on the UNAS-PRO-8?
A: Manufacturer warranty details are available in the product documentation; contact your specialty retailer for specific terms and extended coverage options.
Q: Can the UNAS-PRO-8 handle RAID 10 across 8 drives?
A: Yes. RAID 10 uses mirrored pairs (4 pairs with 8 drives), delivering high fault tolerance and the fastest rebuild speed, though at 50% capacity loss. RAID 5 or RAID 6 offer better capacity utilization if rebuild speed is less critical.
Q: What's the maximum NVMe cache capacity on the UNAS-PRO-8?
A: The two M.2 NVMe slots support up to 4 TiB total (e.g., two 2 TiB drives). Use NVMe for metadata and frequently accessed files; large cold archives belong on the 3.5" HDDs in the main bays.
Q: Does the UNAS-PRO-8 support multi-destination backup?
A: Yes. It can backup to remote UNASs, CIFS/SMB shares, and cloud services (S3, Google Drive, OneDrive) simultaneously, eliminating the need for external backup appliances in many deployments.
Q: What happens if one power supply fails?
A: The UNAS-PRO-8 has dual 550W AC/DC PSUs with automatic failover. If one PSU fails, the other supplies full power (max draw is 250W), and the system continues operating without intervention.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UNAS-PRO-8 (often searched as UNAS PRO 8) solves a real integration headache in distributed surveillance and data-intensive warehouse environments: you need fast, redundant, multi-protocol file storage that doesn't require a separate SAN or NFS appliance. The dual 10G SFP+ ports are the standout feature here — they eliminate network congestion when you're doing concurrent backups, live video ingest, or metadata queries across dozens of cameras and sensors.
Technical Highlights:
- Quad-core ARM Cortex-A57 + 16GB Memory: Handles RAID parity calculations, snapshot operations, and multi-destination backup jobs without CPU throttling. You won't see the NAS become a bottleneck even under sustained 10GbE throughput.
- Dual Hot-Swap 550W PSUs with AC/DC support: True N+1 redundancy. If your primary PSU fails mid-weekend, the backup takes over instantly. 250W max draw means a single PSU alone can sustain full operation — the second is pure insurance.
- NVMe Cache up to 4 TiB: Metadata-heavy operations (directory listings, permission checks, transaction logs) run from fast SSD. Actual video and sensor data lives on affordable 3.5" HDDs. This hybrid approach cuts average latency 40–60% compared to HDD-only setups without the expense of all-SSD.
Deployment Considerations:
- Environment limits matter. The -5°C to 40°C operating range is standard for enterprise data closets but won't work in uninsulated warehouses, rooftops, or outdoor kiosks. If you need temperature tolerance beyond that, escalate.
- You must bring modern 10GbE infrastructure. A standard gigabit switch will reduce the UNAS-PRO-8 to 1GbE speeds, wasting half its throughput advantage. Budget for managed 10G SFP+ capable switching if you don't have it.
- RAID 6 is the safest default for large drive counts (8 bays). A failed 8TB drive can take 12+ hours to rebuild; a second failure during that window kills the array. RAID 6 protects you.
Position the UNAS-PRO-8 as your central archive in multi-site security deployments, or as the retention store for warehouse automation sensor fusion. Its snapshot and multi-cloud backup capabilities mean you're not dependent on a single data center or cloud provider.
