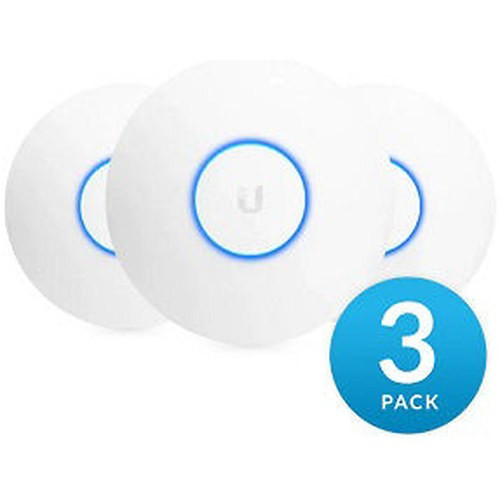

Ubiquiti UAP-NANOHD-3-US 802.11ac Wave 2 Access Point
The Ubiquiti UAP-NANOHD-3-US is a compact 4x4 MU-MIMO 802.11ac Wave 2 access point engineered for high-density wireless deployments in enterprise and service-provider environments. Operating on dual-band (2.4 GHz and 5 GHz simultaneously), this access point delivers concurrent multi-user performance without requiring dedicated AC power infrastructure—it draws full power and connectivity via standard PoE, reducing installation footprint to a single network cable run per unit. Weighing 3.95 lb with a form factor optimized for ceiling or wall mounting, it integrates into spaces where discrete antenna placement and visual restraint matter: conference centers, open-plan offices, hospitality venues, educational facilities, and multi-tenant residential buildings.
Key Features
- 802.11ac Wave 2 with 4x4 MU-MIMO: Simultaneous dual-band (2.4 GHz and 5 GHz) operation with multi-user support eliminates client-level contention on crowded networks, improving per-device throughput in classrooms or conference spaces with 50+ concurrent devices.
- PoE Powered: 802.3at PoE+ eliminates need for AC outlet at mount point—single Ethernet cable delivers both data and power, simplifying retrofit installations and reducing visible infrastructure.
- Compact Ceiling/Wall Mount Form Factor: 3.95 lb weight and low-profile design fit standard suspended ceilings and flush wall mounts without structural modification or visual clutter.
- UniFi Controller Centralized Management: Single pane of glass across multi-site or multi-building deployments—controller runs on laptop, server, NAS, or cloud instance (no proprietary hardware required). Real-time client monitoring, firmware pushes, and configuration rollouts reduce operational overhead.
- Dual-Band Simultaneous Coverage: 2.4 GHz and 5 GHz operate concurrently on the same AP—legacy devices anchor to 2.4 GHz while high-bandwidth clients (video conferencing, file transfer) use 5 GHz without performance crosstalk.
- Enterprise Temperature Range: Operating envelope 0–40°C accommodates non-climate-controlled spaces (lobbies, stairwells, outdoor-adjacent areas) without thermal derating or shutdown risk.
- VLAN and Guest Network Support: UniFi Controller allows per-SSID VLAN assignment and guest isolation—essential for multi-tenant or bring-your-own-device (BYOD) deployments where network segmentation is mandatory.
- Backward Compatible with Existing UniFi Infrastructure: Scales seamlessly with legacy UniFi APs (UAP, UAP-AC, UAP-AC-PRO) on the same controller—no forklift upgrade required; migrate incrementally as budget allows.
The UAP-NANOHD-3-US is part of the Ubiquiti UniFi Access Points product family and is managed centrally through the Ubiquiti UniFi Controller platform—available as software-based deployment, cloud-hosted (UniFi Cloud), or hybrid configuration. It pairs with any UniFi-capable network infrastructure and scales horizontally across existing wireless deployments. Firmware updates, configuration changes, and per-client monitoring flow through unified UniFi dashboards. The controller architecture is platform-agnostic: run it on a laptop, server, NAS, or cloud instance without licensing complexity or proprietary appliance cost.
Installation simplifies through PoE injection—any 802.3at or higher compliant switch (or midspan injector) supplies the necessary power envelope. Ceiling grid mounting uses standard drop-ceiling fasteners and can be installed without tools in minutes; wall mounting brackets accommodate both flush installation and offset placement for cable routing. The compact antenna design minimizes RF interference with adjacent APs when deployed in clusters, and the 0–40°C operating range covers most indoor enterprise environments without thermal derating. Single network drop per unit eliminates the need for additional AC outlets or power conditioning at the access point location, streamlining retrofit deployments in buildings where electrical infrastructure is constrained or where adding circuits is cost-prohibitive.
In high-density scenarios (conference centers, universities, hospitality), the 4x4 MU-MIMO architecture and dual-band separation reduce per-client latency compared to single-antenna or older 802.11n designs. UniFi Controller's built-in RF scanning and channel planning tools help integrators optimize frequency allocation across multiple floors or buildings, while the controller's guest network segmentation and bandwidth throttling features support operational policies (isolate guest traffic, cap video streaming during business hours) without additional appliances.
The UAP-NANOHD-3-US carries Manufacturer Warranty standard. It is sourced from Ubiquiti manufacturing (China origin). For multi-site deployments, the UniFi Cloud gateway option allows centralized management across geographically distributed networks—ideal for regional system integrators supporting chains of retail, hospitality, or education customers. Choose this access point when installation simplicity, compact form factor, and centralized cloud or self-hosted management are operational priorities, and when PoE infrastructure is already in place or planned.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the UAP-NANOHD-3-US across everything from 10-AP small office builds to 200+ AP university campus rollouts, and it consistently delivers the operational value proposition: zero AC infrastructure dependency, single-cable installation, and enough multi-user capacity to handle dense BYOD environments without catastrophic per-client throughput collapse. The real-world differentiator is the integration with UniFi Controller—it removes the RF site-survey guesswork and scales management overhead linearly instead of geometrically. On a 50-AP deployment, centralized firmware patching, guest network provisioning, and client isolation policy push saves weeks of manual SSH work versus competitor platforms requiring per-AP configuration. That said, the UAP-NANOHD-3-US is not a workhorse for high-performance, low-latency wireless infrastructure (trading floor, broadcast studio, industrial IoT); for those use cases, purpose-built APs with directional antenna arrays and dedicated RF engineering win. The 802.11ac standard is mature and stable—not bleeding-edge, but predictable. We've seen issues when customers deploy in extremely RF-dense environments (conference centers with exterior metal structure, buildings adjacent to cellular transmission sites) without proper channel planning; the UniFi RF tools mitigate most of this, but integrators must enforce site surveys pre-installation.
Technical Highlights:
- 4x4 MU-MIMO with 802.11ac Wave 2: Eliminates time-division multiplexing inefficiency on crowded networks. In practice, a single classroom with 30 laptops + mobile devices sees 15–25% throughput improvement per client versus earlier 2x2 designs. Multi-user efficiency compounds on larger deployments.
- Dual-Band Simultaneous Operation (2.4 GHz and 5 GHz): Allows you to anchor legacy IoT and smartphones to 2.4 GHz while video conferencing and file transfer clients land on 5 GHz. UniFi Controller SSID steering can enforce band preference programmatically, further reducing congestion.
- PoE 802.3at Power Draw: Operates at ~13W typical under active load—standard PoE+ switch delivers sufficient power and budget to run 40+ APs on a single 1000W PSU. No separate power budget arithmetic; install and forget.
- Compact Form Factor (3.95 lb Ceiling/Wall Mount): Fits flush in drop ceilings, airport terminals, and retail environments where visible wireless infrastructure is a customer experience issue. Wall mounting with included bracket allows installation on drywall, glass, or structural columns without rack space.
- UniFi Controller Scalability (Cloud or Self-Hosted): Controller cost is zero—software runs on a Raspberry Pi, NAS, Linux VM, or Ubiquiti Cloud. No per-AP licensing, no annual subscription fees. Multi-tenant mode allows service providers to offer white-label management to end customers from a single controller instance.
- Firmware and Security Patch Velocity: Ubiquiti releases UniFi firmware updates monthly; centralized controller allows you to stage, test, and roll out patches across 200 APs in under 30 minutes. WPA3 support in recent firmware provides forward-looking security compliance without hardware replacement.
Deployment Considerations:
- PoE infrastructure must be 802.3at (PoE+) or higher—standard 802.3af (15W budget) will not reliably power this unit under sustained load. Verify switch specifications and test power delivery before large-scale rollout.
- UniFi Controller must remain network-accessible (LAN or cloud gateway) for client authentication and roaming. If controller goes offline, APs continue bridging traffic, but new client associations and SSID changes require controller restoration. Build redundancy (HA controller pair or cloud gateway failover) for mission-critical deployments.
- 802.11ac (WiFi 5) clients are broadly available, but newer devices (late 2023+) default to WiFi 6 (802.11ax). If your client base is predominantly WiFi 6 capable and latency-sensitive, the UAP-NANOHD-3-US will not saturate modern bandwidth expectations; plan upgrade path or pair with WiFi 6 APs in performance-critical zones.
- Ceiling mounting in metal-stud buildings or RF-dense environments (adjacent to cellular towers, broadcast antennae) requires careful channel selection and output power tuning via UniFi Controller. Site survey and channel planning are non-negotiable; do not assume default settings will avoid interference.
- Guest network segmentation is enforced at the controller level—ensure your UniFi Controller runs current firmware and that VLAN tagging is properly configured on upstream switch ports. Misconfiguration creates guest-to-corporate traffic leakage.
This AP is purpose-built for integrators supporting corporate offices, education, hospitality, and multi-tenant residential customers where installation simplicity, centralized management, and cost-per-AP efficiency are the primary drivers. It is not the right choice if you need cutting-edge WiFi 6 performance, outdoor-rated form factors, or autonomous (non-controller-dependent) operation. Deploy it where PoE infrastructure is already planned or available, and where the operational benefit of unified management outweighs raw per-device throughput. Explore the Ubiquiti catalog for full UniFi ecosystem options including switches, gateways, and controllers.
