Ubiquiti UACC-RACK-42U-1000-P 42U Floor Rack
Overview

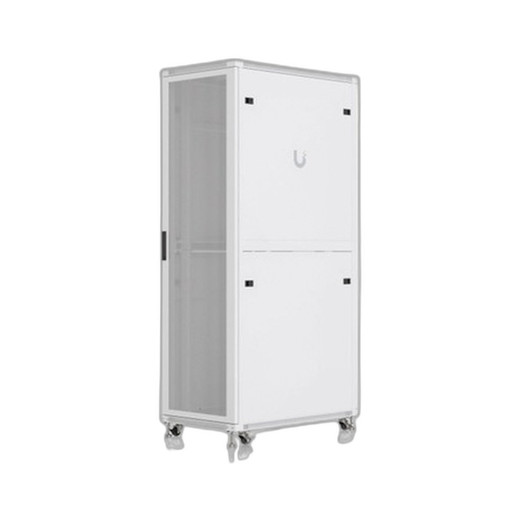

The UACC-RACK-42U-1000-P is a pre-assembled 42U floor-standing cabinet built from 1–2mm SPCC steel with powder-coat finish. It solves the deployment friction of site-built rack frames: arrives fully assembled, requires no on-site welding or cabinet assembly, and mounts directly to floor via leveling stands and optional anchors. Depth is adjustable from 652.3mm default to 877.3mm max (25.7"–34.5"), letting you fit standard-depth gear or deeper appliances without custom framing. The unit is NDAA-compliant, meeting federal procurement requirements for U.S. government and defense-adjacent deployments.
Compatibility
Mounts any standard 19-inch EIA/ECA-310-E rack-compatible hardware: Ubiquiti EdgeRouter and EdgeSwitch series, UniFi Dream Machine, UDM Pro, and other standard-depth or extended-depth appliances. Front and rear doors are individually reversible (default left-hand outswing), so cabinet orientation fits existing floor layouts. Supports up to 800kg static load and 320kg rolling load on lockable casters. Square-hole adjustable rails run full height with 15mm pitch, enabling flexible U-position assignment.
Installation Notes
Cabinet ships in packaging (740 × 1,165 × 2,223mm, 112.4kg). Assembled rack footprint is 600 × 1,000mm with or without casters (height 2,050mm with casters, 1,966mm without). Four solid, removable side panels lock individually; front and rear doors lock independently. Vertical cable management channels run both sides. Two cable entry openings at top and two at bottom (each 335 × 52.5mm), supporting organized wire routing. Floor anchor points and grounding lugs are provided for secure, code-compliant installation. No assembly required; unbox, position, level, and mount equipment.
What's in the Box
- 1x fully assembled 42U rack cabinet
- 1x front door (perforated, reversible)
- 1x rear door (perforated, reversible)
- 4x side panels (solid, removable, lockable)
- 4x lockable casters
- 4x leveling stands
- 1x front door lock
- 1x rear door lock
- 8x side panel locks
- 3x keys
- Floor anchor hardware
- Grounding lugs
