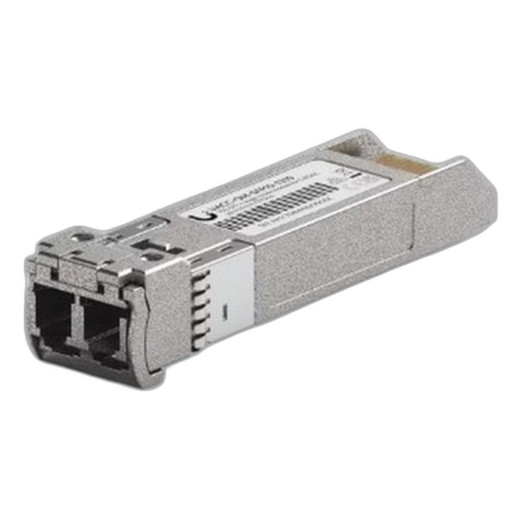

Ubiquiti UACC-OM-SFP10-1310 SFP+ CWDM Transceiver
Overview
The Ubiquiti UACC-OM-SFP10-1310 is a 10 Gbps SFP+ transceiver module engineered for CWDM (Coarse Wavelength Division Multiplexing) deployments that require wavelength-specific optical channels. Operating at 1310 nm, this transceiver is optimized for longer-distance single-mode fiber runs—a critical consideration when consolidating multiple data streams over a single fiber pair without incurring excessive inline attenuation. The standard SFP+ form factor means you can populate high-port-density switches without consuming additional chassis space; that density advantage compounds across large-scale network refreshes where cabinet real estate is already tight.
Key Features
- 10 Gbps throughput: Delivers full duplex 10 Gigabit Ethernet capacity, meeting the bandwidth requirements of aggregation layers and high-speed backhaul links without bottlenecking upstream traffic.
- 1310 nm wavelength: Operates in the standard CWDM window designated for 1310 nm channels, enabling you to multiplex this transceiver alongside 1550 nm, 1570 nm, or other CWDM wavelengths on the same fiber strand—effectively doubling or quadrupling fiber utilization without running new cable.
- Single-mode fiber optimized: Designed for SMF (single-mode fiber), allowing transmission distances measured in tens of kilometers rather than hundreds of meters—essential when bridging distant campuses, data center interconnects, or remote security operations centers.
- SFP+ form factor: Compact modular design slots directly into any switch, NVR, appliance, or middleware device sporting standard SFP+ cages. No external transceivers, no bulky modules stealing rack space.
- CWDM-compatible: Integrates with Ubiquiti CWDM multiplexers and demultiplexers (sold separately) to achieve wavelength division on shared fiber infrastructure. Critical for cost-effective fiber consolidation in multi-building or multi-floor deployments.
- Passive optical technology: No active cooling, no chassis dependencies—plug into any SFP+ slot and go. Reduces operational overhead in remote or unmanned sites.
Integration & Compatibility
The UACC-OM-SFP10-1310 (often searched as UACC OM SFP10 1310) integrates with Ubiquiti switches, routers, and network appliances fitted with standard SFP+ slots. It also pairs with third-party equipment—Juniper, Cisco, Dell, Arista, and other vendors—that support industry-standard SFP+ modules. Verify your device supports 10G SFP+ slots and, critically, confirm that your switch or appliance does not enforce a whitelist that blocks non-OEM transceiver models; many enterprise-class devices do enforce this restriction.
For CWDM deployments, you must procure a compatible CWDM optical multiplexer/demultiplexer unit (MUX/DEMUX) that supports the 1310 nm wavelength. This transceiver alone only handles the optical modulation; the MUX/DEMUX equipment performs the wavelength separation and recombination on the fiber link.
When to Choose a Different Model
If your network does not require wavelength multiplexing or operates on shorter distances (under 2 km), standard 10GBASE-SR or 10GBASE-LR transceivers without CWDM constraints will simplify inventory and reduce cost. If you need higher port counts on a single fiber, consider DWDM (Dense Wavelength Division Multiplexing) transceivers instead—they pack more wavelengths into tighter frequency spacing, though they demand more precise temperature control and tuning.
Frequently Asked Questions
Q: Can I use the UACC-OM-SFP10-1310 with multimode fiber?
A: No. This transceiver is designed for single-mode fiber only. Multimode fiber will introduce excessive modal dispersion and signal degradation over distance. Always pair with SMF-28 or equivalent single-mode fiber.
Q: What is the maximum transmission distance with the UACC-OM-SFP10-1310?
A: At 1310 nm over single-mode fiber, typical reach is 10–40 km depending on fiber quality, splice count, and receiver sensitivity of the partnered equipment. Consult the datasheet for specific optical power budgets and loss margins.
Q: Does the UACC-OM-SFP10-1310 support bi-directional (BiDi) transmission?
A: No. This is a standard duplex transceiver—separate transmit and receive paths. Bi-directional (single-fiber) operation requires specially designed BiDi transceivers and is not supported by this module.
Q: Is the UACC-OM-SFP10-1310 hot-swappable?
A: Yes, most modern SFP+ switches and appliances support hot-swap insertion and removal without powering down the chassis. Always verify your device manual to confirm hot-swap capability before inserting or removing the module during live operation.
Q: Does this transceiver include fiber optic cables?
A: No. The module alone is supplied. You must purchase single-mode fiber patch cables, MUX/DEMUX equipment, and any required adapters separately.
Q: What is the warranty on the UACC-OM-SFP10-1310?
A: Refer to the manufacturer warranty documentation or contact your distributor for specific coverage terms. Ubiquiti typically warrants passive optical components against manufacturing defects for a defined period.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UACC-OM-SFP10-1310 is a straightforward, no-nonsense optical module for fiber-based network consolidation. If you're running Ubiquiti switches or compatible third-party gear and CWDM is on your roadmap, this 1310 nm transceiver does one thing well: it provides a wavelength-specific optical channel at 10 Gbps over long-distance single-mode fiber without occupying multiple physical fiber strands.
Technical Highlights:
- 1310 nm CWDM wavelength: Multiplexes with 1550 nm and other CWDM wavelengths on a shared fiber pair, cutting fiber costs significantly in multi-building networks or data center interconnects where running new cable is expensive or disruptive.
- 10 Gbps duplex throughput: Handles full-rate 10 Gigabit Ethernet without compromise, meeting the backhaul demands of aggregation switches, core routers, and high-volume NVR or surveillance appliances.
- SFP+ modularity: Passive design—no external power, no active cooling—means you deploy it in remote or unmanned facilities without infrastructure overhead. Swap or upgrade it in seconds without downtime on modern hot-swap-capable platforms.
Deployment Considerations:
- CWDM MUX/DEMUX hardware is separate and non-negotiable. The transceiver alone only generates the 1310 nm signal; you must buy optical multiplexer equipment to actually separate wavelengths on the fiber link. Budget accordingly.
- Verify whitelist compliance: many enterprise switches (Cisco Catalyst, Juniper EX, Dell Force10) enforce transceiver whitelisting. A non-whitelisted module may not initialize, even if electrically compatible. Request a compatibility matrix from your switch vendor before committing.
- Single-mode fiber only. Running this on multimode fiber will fail catastrophically over distance. SMF-28 or equivalent is mandatory.
Deploy the UACC-OM-SFP10-1310 in campus fiber backbones, multi-site security networks, or large warehouse automation layouts where you're consolidating multiple 10G logical channels onto a single physical fiber pair. It's a cost-effective way to expand optical capacity without trenching new cable, but only if you're already committed to CWDM architecture and have the multiplexing infrastructure in place.
