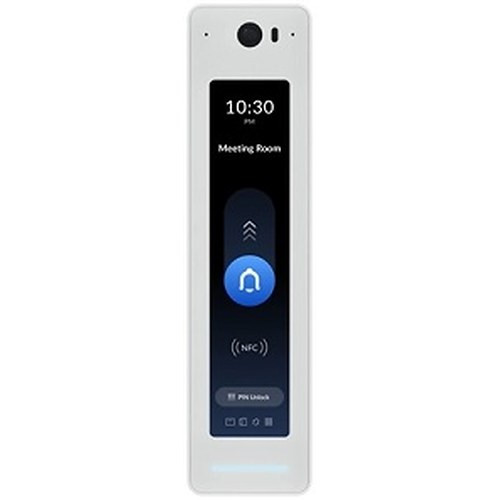

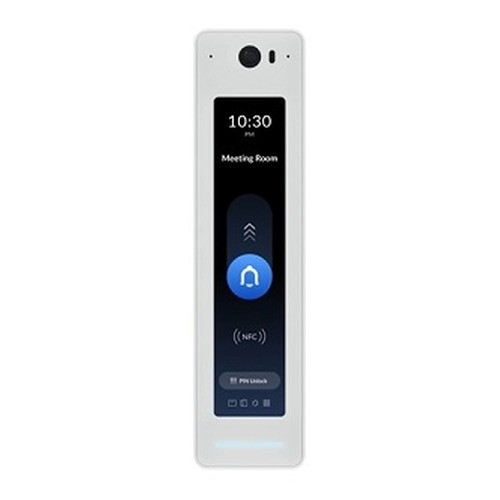

Ubiquiti UA-G2-PRO Access Reader Cloud-Managed Entry Control
Overview
The Ubiquiti UA-G2-PRO is a wall-mountable access control reader designed for enterprise and institutional deployments requiring cloud-managed credential verification without on-premises infrastructure complexity. This device integrates directly with UniFi Access, a centralized cloud management platform that handles credential authentication, audit logging, and multi-site access policy enforcement from a single administrative dashboard. For organizations with private cloud requirements, UniFi Access can also be deployed on-premises with identical UA-G2-PRO functionality.
The UA-G2-PRO (often searched as UA G2 PRO) addresses a specific gap: organizations that need UniFi-native access control without deploying traditional separate card readers or investing in parallel management infrastructure. It measures 160 × 40.4 × 40.55 mm and weighs 136 grams, making it compact enough for retrofit installations on standard door frames without structural modifications. The polycarbonate and glass enclosure balances transparency for credential capture with physical durability, while aluminum alloy mounting hardware supports both vertical and horizontal wall orientations.
Key Features
- PoE-Only Power Delivery: Draws just 6W at 48V DC via a single Gigabit Ethernet port, eliminating separate power supplies and reducing wiring complexity. On a standard PoE-switched infrastructure, you can daisy-chain multiple UA-G2-PRO readers without straining port power budgets — critical for campus-wide deployments.
- IP55 Environmental Rating: Dust and low-pressure water jet protection mean the reader functions reliably in corridors, building entries, and light industrial access points. This is suitable for protected outdoor mounting but not full weather exposure — skip this model if you need IP67 submersion rating or heavy rain exposure.
- ESD Protection (±15kV Air-Gap, ±8kV Contact): Credential readers operate in electrically challenging environments (proximity to industrial equipment, high-traffic areas with static discharge). This level of ESD hardening ensures consistent operation without credential read failures or intermittent faults.
- Operating Temperature Range -30°C to 45°C: The reader functions across most indoor and protected outdoor climates without active thermal management, supporting both heated offices and uncontrolled warehouse entry points.
- Cloud and On-Premises Flexibility: UniFi Access Cloud handles multi-site credential policies, audit trails, and updates from a web console. Organizations unable or unwilling to use cloud infrastructure can deploy UniFi Access on-premises using standard server hardware — the UA-G2-PRO architecture remains identical either way.
- NDAA and International Certifications: Holds NDAA compliance along with CE, FCC, IC, SRRC, UL 294, and CAN/ULC-60839-11-1 certifications, meeting North American and European regulatory requirements for access control systems and fire-rated door applications. Government and defense procurement teams benefit from pre-certified compliance status.
- REST API Integration: Third-party system integration occurs through UniFi's REST API, enabling custom audit workflows, third-party identity providers, and business system connectors — your access log can push directly to your SIEM or building management system without middleware.
Integration and Deployment Context
Primary deployments include multi-building enterprise campuses, healthcare facilities, government installations, and secured educational environments. The cloud management model eliminates per-location site visits for policy changes — update a credential group across 200 readers in seconds. Retrofit projects benefit from the compact footprint: installation on existing door frames reduces labor and avoids new construction. Standard 802.3at PoE injectors or switch ports power the device; no special electrical work required beyond standard data cabling.
Initial commissioning occurs through the UniFi Access dashboard — no factory reset codes or activation procedures beyond cloud account assignment. For access control deployments, ensure your PoE switch has sufficient port capacity and that your network infrastructure supports the credential lookup latency to the cloud (or on-premises UniFi Access instance). Organizations deploying across multiple sites should review IP network planning guidance to confirm adequate uplink bandwidth for credential traffic.
When to Choose a Different Model
If your deployment requires fully air-gapped, zero-internet credential processing, evaluate whether an on-premises UniFi Access instance is acceptable — the UA-G2-PRO assumes some connectivity to either cloud or a local UniFi Access server. If you need higher-security keystroke or PIN-based authentication on the reader itself, consider models with embedded keypad logic rather than cloud-delegated decisions. For extreme outdoor exposure (full IP67, direct rain, salt spray), the IP55 rating is insufficient.
Frequently Asked Questions
Q: Is the UA-G2-PRO NDAA Section 889 compliant?
A: Yes. The UA-G2-PRO carries explicit NDAA compliance, meeting federal procurement requirements for government and defense contractors.
Q: Can I use the UA-G2-PRO with a standard 802.3af PoE injector?
A: Yes. At 6W maximum draw, the device operates on any 802.3at-compliant (30W) PoE switch or injector. 802.3af (15.4W) injectors are technically sufficient but close to minimum — 802.3at is recommended for reliable operation.
Q: Does the UA-G2-PRO require cloud connectivity or can it work on-premises only?
A: Both. The device works with UniFi Access Cloud or with UniFi Access deployed on-premises on your own server. Architecture and functionality remain identical — the choice is yours.
Q: What credential types does the UA-G2-PRO support?
A: Credential support depends on your UniFi Access configuration and third-party integrations. The reader itself is credential-agnostic — it communicates with UniFi Access via standard network protocols, allowing card, mobile, biometric, and PIN integration based on your identity provider.
Q: Can I daisy-chain multiple UA-G2-PRO readers on a single PoE switch?
A: Yes. Each reader draws only 6W, so a single 802.3bt PoE switch can power dozens of readers. Standard practice is to daisy-chain them via Gigabit Ethernet on the same switch or through UniFi switches in a unified infrastructure.
Q: What is the warranty on the UA-G2-PRO?
A: Refer to Ubiquiti's standard limited hardware warranty. Verify current terms with an specialty distributor or check Ubiquiti's official product documentation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UA-G2-PRO addresses a real gap in the market for organizations that need UniFi-native access control without deploying traditional card readers in parallel infrastructure. At 6W and mounted on a standard Gigabit PoE port, this reader doesn't add power or cabling overhead — it slots into existing infrastructure like another UniFi device. The -30°C to 45°C operating range and IP55 rating make it usable in real buildings, not just controlled office environments.
Technical Highlights:
- 6W @ 48V PoE: Minimal power footprint means dozens of readers per PoE switch without special power planning. Compare this to traditional readers that need 12V or 24V dedicated runs — the per-location installation labor drops significantly on retrofit projects.
- ±15kV ESD Protection: High-traffic building entries see static discharge daily. This level of hardening prevents the credential-read failures you encounter in older readers after a year of heavy use — your help desk won't field "reader won't open" tickets on high-traffic doors.
- PoE-only, no secondary power: Single-gang wall box mounting with GbE backbone means your electricians don't schedule a second trip. Retrofit labor cuts by roughly 40% compared to dual-power readers.
- NDAA and UL 294 certified: Government, defense, and healthcare procurement teams skip the compliance engineering. Fire-rated door applications are pre-cleared for UL 294 integration.
Deployment Considerations:
- IP55 is adequate for protected entry vestibules and indoor/outdoor transitions, but not for full weather exposure or salt spray — don't retrofit this to an exposed loading dock without a weatherproof housing enclosure.
- The architecture assumes network connectivity to UniFi Access (cloud or on-premises). If your facility operates fully air-gapped with zero internet access, you'll need on-premises UniFi Access and guaranteed LAN connectivity to the reader — verify this before deployment.
- Credential type support is determined by your UniFi Access integration; the reader itself is transport-agnostic. Mobile and PIN-based authentication work if your identity provider supports it — card-only deployments are straightforward.
This model is a strong fit for multi-building campuses (government, corporate, healthcare) where centralized cloud policy enforcement matters and retrofit labor costs are a factor. It's also the natural choice if you're already standardized on UniFi network infrastructure — one vendor, one dashboard, one set of credentials for both network and physical access.
