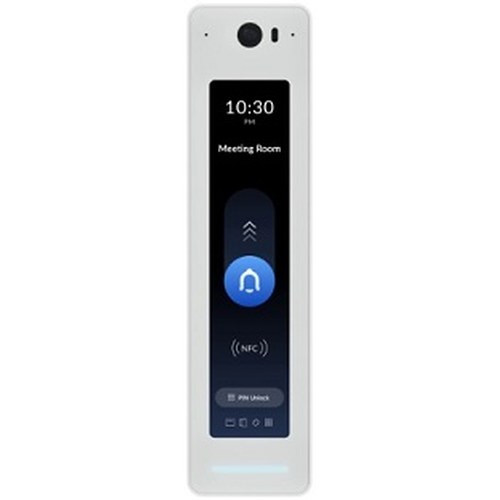

Ubiquiti UA-G3-PRO-W NFC Access Reader
Overview
The Ubiquiti UA-G3-PRO-W is a third-generation wall-mounted NFC reader purpose-built for enterprise physical access control. It reads credential-bearing cards, badges, and compatible mobile devices, then communicates with the UniFi Management Console to enforce access policies in real time. The UA-G3-PRO-W operates as a distributed authentication point—meaning access decisions happen at the reader itself, not just the console—so entry control continues even during brief network outages as long as credentials have been cached locally. At 0.300 lb, the compact form factor fits standard entry points without structural retrofit.
Key Features
- NFC Credential Reading: Supports any ISO/IEC 14443 Type A or Type B NFC card, badge, or phone-based credential. This flexibility means you're not locked into a single credential vendor—staff can use existing access cards or switch to mobile credentials without reader replacement.
- Wall-Mount Design: Installs at standard door-frame or pillar heights with minimal installation labor. The integrated bracket positions the reader at optimal NFC antenna orientation, reducing read failures caused by misalignment.
- UniFi Console Integration: Centralized policy engine means one administrator can define who accesses which areas, set time-based restrictions (e.g., after-hours lockout), and audit every entry event across a campus from a single pane of glass. No bridge middleware required.
- Distributed Authentication Architecture: The reader caches valid credentials locally, so access decisions happen at the edge. Network latency or brief console unavailability won't lock people out of their workspace—a real benefit in facilities with unreliable network segments or during maintenance windows.
- Indoor and Outdoor Operation: Rated for both controlled indoor environments and weathered outdoor conditions. Typical use includes server room doors, office wing entrances, building perimeters, and campus access gates without needing separate reader models.
- Real-Time Policy Enforcement: Access rules are enforced immediately at the point of entry. Revoked credentials, temporary access grants, and group-based policies take effect without requiring reader firmware updates or manual credential database refreshes.
Integration and Deployment
The UA-G3-PRO-W integrates natively with the Ubiquiti UniFi access control ecosystem, eliminating the need for third-party gateway hardware or protocol translation. Multi-reader deployments create a distributed topology where each reader reports events to the central console. Network administrators configure reader placement, define access zones, assign credentials to staff, and monitor reader health—including battery status, network connectivity, and NFC read performance—from the dashboard. For organizations standardizing on access control readers and Ubiquiti infrastructure, this native integration avoids licensing costs and integration complexity.
Installation and Planning
Position the UA-G3-PRO-W at typical entry heights (roughly 48–54 inches) to align with user behavior—most staff hold cards or phones at chest-to-waist level. Verify NFC read range in your specific door frame material; metal door frames can reduce antenna performance if the reader is mounted directly behind them, so offset mounting or repositioning may be necessary. The reader draws power over standard PoE (802.3af) infrastructure, so no additional power supplies or circuit breakers are required. Network connectivity should route through your existing UniFi switch fabric or any standards-compliant PoE switch with VLAN support.
When to Choose a Different Model
If your facility requires mobile credential issuance without UniFi console infrastructure, or if you need RFID (125 kHz proximity card) support instead of NFC, evaluate alternative access reader families. If you operate in an environment where readers must function entirely offline with no network connectivity to a central console, consider standalone readers with local credential databases. The UA-G3-PRO-W assumes periodic console communication; it is not designed for 100% disconnected operation.
Frequently Asked Questions
Q: Does the UA-G3-PRO-W work with third-party access control software?
A: The UA-G3-PRO-W is designed for UniFi Management Console integration. Third-party VMS or access control platforms would require custom integration or ONVIF bridge middleware, which adds complexity and is not officially supported by Ubiquiti.
Q: What happens if the network drops between the reader and the console?
A: The reader caches recently validated credentials locally, so valid users can still authenticate and gain entry. However, new credential updates, policy changes, or revoked-access decisions made on the console will not take effect until network connectivity is restored.
Q: Can I use the UA-G3-PRO-W outdoors?
A: Yes. The reader is rated for both indoor and outdoor operation, so it can control access at building entrances, exterior gates, and campus perimeters without requiring an environmental enclosure.
Q: Is the UA-G3-PRO-W PoE powered?
A: Yes. The reader draws power over standard PoE (802.3af), so it integrates into your existing PoE switch infrastructure without requiring separate DC power supplies or runs.
Q: What credentials does the UA-G3-PRO-W accept?
A: It reads any ISO/IEC 14443 Type A or Type B NFC card, badge, or compatible mobile device. This includes most common enterprise access cards as well as phone-based credential apps.
Q: How much wall space does installation require?
A: At 0.300 lb with a compact wall-mount bracket, the reader requires only standard fastening hardware and minimal clearance. Installation is straightforward at most door frames and pillar locations without structural modification.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Ubiquiti UA-G3-PRO-W is a solid fit for enterprises committed to UniFi infrastructure. It does one job—read NFC credentials and report to the console—and does it without overcomplication. The distributed authentication model (local credential caching) is the real win here; it means readers keep working during brief network hiccups, which matters in real deployments where perfect connectivity is rarely guaranteed. For multi-site campuses where you want centralized policy management but distributed decision points at the edge, this reader pulls its weight.
Technical Highlights:
- Distributed Authentication via Credential Caching: The UA-G3-PRO-W caches recently validated credentials locally, so access decisions continue at the reader even during network latency or brief console unavailability. This is not a gimmick—it's a real operational benefit in facilities with flaky network segments or during maintenance windows.
- PoE (802.3af) Power: Draws under 13W typical, so it won't strain your PoE switch power budget. No separate power supplies, no additional circuit breaker planning, no ugly DC cables running to door frames.
- ISO/IEC 14443 Type A/B NFC Support: Accepts any standards-compliant NFC card, badge, or mobile credential. You're not locked into a single credential vendor, and staff can migrate from physical cards to phone-based credentials without reader replacement.
Deployment Considerations:
- Metal door frames can interfere with NFC antenna performance; test read range in your specific door material before finalizing placement. Offset mounting away from the metal frame usually solves this.
- The UA-G3-PRO-W requires UniFi Management Console for policy enforcement. If you operate in a zero-internet-connectivity environment, this reader is not the answer—you need a standalone access reader with a local credential database.
Best fit: multi-building enterprise campuses running UniFi infrastructure who want real-time policy enforcement, audit logging, and time-based access rules without the overhead of third-party middleware or proprietary gateway hardware. For schools, corporate offices, and healthcare networks standardizing on Ubiquiti, the UA-G3-PRO-W (often searched as UA G3 PRO W) integrates cleanly and reduces administrative sprawl.
