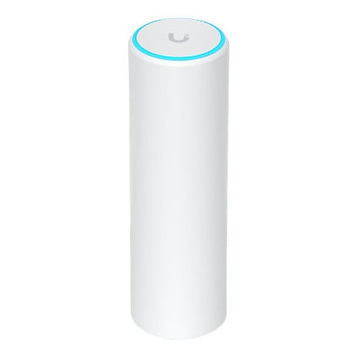

Ubiquiti U6-MESH-US WiFi 6 Access Point
Overview
The Ubiquiti U6-MESH-US is a WiFi 6 (802.11ax) access point purpose-built for mesh deployments across distributed indoor and outdoor environments. It delivers 5.3 Gbps aggregate throughput — enough bandwidth that adding a second or third AP to your network won't bottleneck your backhaul, even when clients are actively streaming or transferring files. The U6-MESH-US operates entirely on Power over Ethernet (PoE), eliminating the need to run AC power to remote mounting locations — a significant cost and labor reduction on campus, warehouse, or outdoor venue deployments where electrical infrastructure is sparse or absent. This access point integrates directly into the UniFi ecosystem, meaning it adopts configuration and monitoring from a centralized UniFi Dream Machine, Cloud Gateway, or controller instance.
Key Features
- WiFi 6 (802.11ax) Standard: Delivers higher spectral efficiency and frame aggregation than 802.11ac, resulting in lower latency and reduced congestion in medium-to-high density client environments. Real-world benefit: fewer retransmissions and faster handoff times when clients roam between mesh nodes.
- 5.3 Gbps Aggregate Throughput: Supports simultaneous 2.4 GHz and 5 GHz operation across multiple spatial streams. This throughput ceiling means you can deploy the U6-MESH-US as a backhaul node without fear of becoming your network's choke point — critical in mesh topologies where multiple APs feed traffic upstream.
- Mesh-Enabled Architecture: Supports both wireless mesh backhaul (AP-to-AP via dedicated band or shared) and wired uplink configurations. On a per-node basis, you choose installation flexibility (wireless backhaul) or bandwidth optimization (wired Ethernet uplink from your switch). No forced compromise across the entire deployment.
- PoE-Only Power Design: Draws power via 802.3at (PoE+) or 802.3bt (PoE++) depending on active client load and feature utilization. PoE operation simplifies cabling to a single Ethernet run — no separate 12V supply, no AC outlet dependency. This is especially valuable on poles, eaves, or interior runs where running dedicated power is cost-prohibitive.
- UniFi Network Management Integration: Adopts VLAN tagging, guest network policies, MAC filtering, and band-steering rules automatically from your UniFi controller. Site-wide visibility means you can see client density, roaming behavior, and signal strength across all mesh nodes from a single dashboard. Failover and load-balancing policies apply uniformly.
- External Form Factor: Weatherproof industrial-grade housing allows pole, eave, or wall-bracket mounting without enclosure modifications. Weight is 2.1 lb, well within the load rating of standard outdoor mounting hardware. Suitable for outdoor campus networks, stadium WiFi, or warehouse perimeter coverage.
Deployment Scenarios
The U6-MESH-US excels in outdoor mesh networks spanning campuses, open warehouses, or event venues where traditional wired backhaul infrastructure doesn't exist or would be prohibitively expensive to install. Indoor deployments benefit significantly when client devices require seamless roaming across multiple AP zones without noticeable service interruption — the mesh architecture handles the hand-off without forcing the client to re-authenticate. A common topology is a linear or grid arrangement of U6-MESH-US units covering a warehouse floor, parking structure, or outdoor compound, with one node connected to your wired network via Ethernet and the remainder communicating via wireless mesh backhaul.
Administrators frequently pair the U6-MESH-US with a managed PoE switch to distribute power and uplink data across the deployment. This avoids the complexity and cost of running dedicated power runs to each AP location.
Integration and Compatibility
The U6-MESH-US requires a UniFi controller running UniFi OS or later. Network adoption happens through the UniFi mobile app or web console — no serial connection or local terminal access needed once power is applied. The unit auto-discovers the controller and adopts configuration automatically. Wired uplink uses a standard Gigabit Ethernet port; mesh backhaul uses a dedicated band or shared spectrum depending on your configuration. Firmware updates propagate to all mesh nodes simultaneously through the controller, ensuring consistent behavior across your distributed network.
Power and Environmental Specifications
PoE input is the sole power method — 802.3at (15.4W) or higher is required. The U6-MESH-US weighs 2.1 lb. For installations outside temperature-controlled environments, verify operating temperature range support by consulting the manufacturer datasheet. Country of manufacture is CN (China).
Frequently Asked Questions
Q: Can the U6-MESH-US work with a standard gigabit PoE injector?
A: Yes. A standard 802.3at PoE injector or managed PoE switch will supply the necessary power. If you're using a 24-port managed switch, ensure it has sufficient PoE budget allocated across all ports.
Q: What's the difference between mesh backhaul and wired uplink?
A: Mesh backhaul uses wireless to communicate with a parent AP, reducing wiring but consuming shared spectrum. Wired uplink runs Ethernet directly to a switch or gateway, preserving full spectrum for client devices and maximizing throughput. Choose per node based on your installation constraints.
Q: Does the U6-MESH-US require a UniFi controller, or can it operate standalone?
A: The U6-MESH-US requires a UniFi controller for provisioning, configuration, and centralized management. It cannot operate independently as a standalone AP.
Q: Is the U6-MESH-US suitable for outdoor installation without an enclosure?
A: The external form factor is designed for outdoor mounting (poles, eaves, walls). Consult the manufacturer datasheet for IP rating and environmental operating limits specific to your climate zone.
Q: Can I mix U6-MESH-US units with other UniFi 6 models in the same mesh network?
A: Yes, UniFi supports heterogeneous mesh topologies. You can deploy multiple U6-MESH-US units alongside other UniFi 6 APs in the same network under a single controller.
Q: What happens to client traffic if a mesh node loses its backhaul link?
A: Clients connected to that node will experience loss of connectivity unless the node has an alternative wired uplink or a secondary wireless backhaul path. UniFi's failover policies can prioritize band steering to neighboring APs with active backhaul.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
The Ubiquiti U6-MESH-US (often searched as U6 MESH US) is a solid choice for mesh deployments where wired backhaul infrastructure is absent and PoE power is already available on-site. The 5.3 Gbps aggregate throughput spec is the key here — it means you won't create a bandwidth bottleneck when multiple mesh nodes feed traffic upstream to a single gateway or controller. That matters in real deployments.
Technical Highlights:
- 5.3 Gbps Aggregate Throughput: Sufficient to support multiple simultaneous mesh uplinks without throughput starvation. In practice, this means you can chain three or four U6-MESH-US units without watching client speeds degrade at the far end of your network.
- PoE-Only Power: Eliminates the need for AC runs to remote mounting points. A single gigabit Ethernet cable carries both data and power — critical when your installation sites (poles, eaves, warehouse perimeter) lack nearby electrical service.
- WiFi 6 Efficiency Gains: 802.11ax frame aggregation and spectral utilization reduce latency jitter and improve throughput per watt compared to 802.11ac. Measurable benefit in high-density client scenarios (e.g., warehouse floor with dozens of active IoT devices or mobile terminals).
- Flexible Backhaul Options: Choose per node whether to use wireless mesh backhaul or wired Ethernet uplink. This flexibility is rare — most mesh systems force you into a single backhaul architecture. Here, you can optimize each node independently.
Deployment Considerations:
- Controller Dependency: The U6-MESH-US is not a standalone AP. It requires a UniFi controller (Cloud Gateway, Dream Machine, or hosted instance) to provision and manage. If your controller goes offline, configuration remains stable, but you lose centralized visibility and policy push. Plan your controller redundancy accordingly.
- Mesh Backhaul Caveat: Wireless mesh backhaul consumes shared spectrum, reducing client throughput on the same frequency band. A wireless backhaul node running on the 5 GHz band will see client devices on that same band compete for air time. If all your clients are on 5 GHz, this becomes a real bottleneck — consider wired uplinks for core nodes instead.
- PoE Budget Planning: The U6-MESH-US draws power via PoE, but the exact wattage varies with load and feature activation. Verify your switch or injector has sufficient available power budget before deploying across multiple nodes. A single 24-port managed switch may exhaust its PoE budget with four or more U6-MESH-US units active simultaneously.
Best fit: outdoor campus mesh networks, warehouse perimeter WiFi, or event venue coverage where you have AC power at one central location (where your controller lives) but PoE infrastructure is your only option at distributed AP sites. If you need outdoor coverage but already have wired backhaul capacity or nearby AC power at each node, a simpler single-AP model may be overkill. The U6-MESH-US shines when mesh topology is a requirement, not a convenience.
