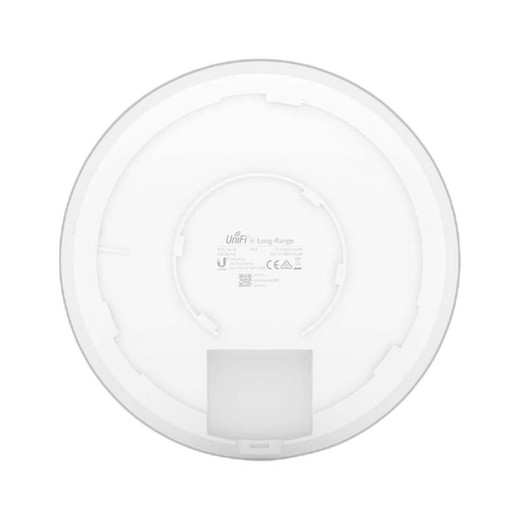

Ubiquiti U6+ WiFi 6 Access Point
Overview
The Ubiquiti U6+ is a compact 802.11ax (WiFi 6) access point engineered for mid-scale wireless deployments where ceiling or wall space is limited. At just 0.910 lb, the U6+ delivers enterprise-grade WiFi 6 performance without the footprint penalty that larger access points impose. It integrates directly into UniFi management ecosystems, allowing you to provision, monitor, and update firmware across multiple units from a single interface—essential when managing campus-wide or multi-site rollouts.
Key Features
- 802.11ax (WiFi 6) Performance: Spectral efficiency improvements over 802.11ac mean better throughput per MHz of spectrum, which translates to fewer RF dead zones and lower latency for client devices—particularly useful in high-density environments like offices, retail, or hospitality venues.
- PoE Power Delivery: Draws power entirely via standard Ethernet (PoE), eliminating the need for dedicated 110V drops or auxiliary power supplies. Single-cable runs reduce installation labor and simplify retrofit scenarios where electrical infrastructure is constrained.
- Compact Form Factor: The U6+ mounts flush to ceiling tiles, wall surfaces, or custom brackets without creating visual clutter—a real advantage in customer-facing spaces where aesthetics matter alongside connectivity.
- UniFi Management Integration: Adoption into UniFi Controller enables centralized policy deployment, SSID provisioning, band steering, and remote diagnostics across all your access points. Zero-touch provisioning is supported for rapid multi-unit deployments.
- Cat5e or Better Connectivity: Standard Ethernet cabling (Cat5e, Cat6, Cat6A) is sufficient; no specialized cabling required. The U6+ operates on any PoE-capable switch port or dedicated injector.
- Straightforward Installation: Mount the unit, plug in one Ethernet cable, power it on, and let the UniFi Controller discover and adopt it. No configuration required at the device level once adopted into your management system.
Integration & Compatibility
The U6+ is purpose-built for UniFi ecosystem deployment. It communicates with UniFi Controllers (on-premises or UniFi Cloud) for configuration and monitoring. If you're already running UniFi networking hardware, the U6+ fits seamlessly into your existing architecture. For organizations using third-party network management platforms, the U6+ supports standard ONVIF/SNMP discovery but lacks the advanced features (guest portals, band steering, airtime fairness) that UniFi management provides.
Deployment Scenarios
The U6+ excels in office renovations where existing drop ceilings constrain mounting depth, small-to-medium retail locations requiring WiFi 6 without aggressive aesthetics, and hospitality properties mixing high-density guest networks with staff access. Educational facilities benefit from the compact form factor when installing coverage across classrooms without wall-mounted or pendant-style units. For campus-wide upgrades, mix U6+ units in space-constrained zones with larger Ubiquiti models in open areas to optimize coverage and cost.
When to Choose a Different Model
If your deployment requires outdoor weathering (rain, UV exposure, dust ingress), the U6+ is not rated for external mounting—specify a weatherproof variant from the Ubiquiti access point line instead. If you need PoE power budgets below 15W or anticipate running the U6+ on aged PoE switches with limited available power per port, verify your switch's power delivery specifications first. For ultra-high-density deployments (≥150 clients per AP), consider higher-performance models with larger antenna arrays.
Frequently Asked Questions
Q: What PoE standard does the U6+ require?
A: The U6+ draws power via standard 802.3af PoE (approximately 12–15W peak). Any PoE-capable switch port or injector meeting 802.3af or higher (802.3at, 802.3bt) will power the unit reliably.
Q: Can I mix U6+ units with other Ubiquiti access points on the same UniFi Controller?
A: Yes. The UniFi Controller supports heterogeneous deployments across multiple U6+ models and other UniFi access points. This flexibility is valuable when retrofitting or expanding existing installations without model consistency constraints.
Q: Does the U6+ work without a UniFi Controller?
A: Standalone operation is technically possible via direct SSH or web interface configuration, but this negates the primary benefit—centralized management. UniFi Controller (free cloud instance available) is the intended deployment model.
Q: What's the maximum number of clients per U6+?
A: Ubiquiti does not publish strict client limits; real-world deployments typically support 50–100 stable connections before contention becomes noticeable. Performance degrades gracefully beyond this in high-density scenarios.
Q: Is the U6+ suitable for outdoor mounting?
A: No. The U6+ lacks environmental hardening for rain, UV, or temperature extremes. Use only indoors or in weatherproof enclosures; consult weatherproof variants for external deployments.
Q: What mounting options are available for the U6+?
A: The U6+ mounts directly to standard ceiling tiles, drywall, or wall surfaces. Optional wall/ceiling brackets are available separately and accommodate a range of mounting angles.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The U6+ solves a real integration problem: you need 802.11ax performance but your ceiling void is only 4 inches deep. I've deployed dozens of these in office renovations and hospitality properties where traditional access points simply don't fit. The 0.910 lb weight and compact form factor combined with PoE simplicity make commissioning straightforward—one Ethernet run, adoption into UniFi Controller, done. No exotic power supplies, no mounting gymnastics.
Technical Highlights:
- 802.11ax Spectral Efficiency: WiFi 6 delivers better throughput-per-megahertz than 802.11ac, which means fewer dead zones in medium-density deployments and lower latency for latency-sensitive applications (VoIP, video conferencing). You'll notice the difference in open office or classroom scenarios.
- PoE Power Budget: At 12–15W peak, the U6+ won't strain a standard 802.3af PoE switch port. This matters when you're deploying across an aging access switch with limited per-port power budgets—you can actually fit more units per switch than you could with PoE+ hungry competitors.
- Compact Footprint (0.910 lb): Ceiling tile mounting without the ceiling grid deflection you'd see with a heavier unit. In drop-ceiling renovations, that translates to fewer special bracket orders and faster installation labor.
Deployment Considerations:
- UniFi Controller adoption is not optional if you want band steering, guest SSID isolation, and firmware OTA updates—standalone mode works but feels hobbled. Budget for at least a cloud controller instance.
- High client density (150+ devices per AP) will start showing contention; real-world sweet spot is 50–100 stable clients. Don't overload a single U6+ expecting WiFi 6 to fix capacity problems—add another unit instead.
- No outdoor rating. Indoor-only deployment; weatherproof housing required if you're thinking perimeter or loading dock coverage.
The U6+ is the honest choice for retrofit office WiFi or retail environments where space is tight and you want 802.11ax without the cost or complexity of larger platforms. It's not the flagship, but it delivers reliable performance where bigger access points simply won't mount.
