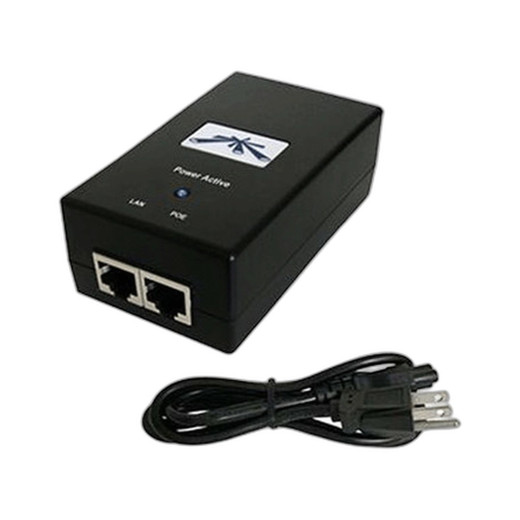

Ubiquiti POE-50-60W 60W PoE Adapter
Overview
The Ubiquiti POE-50-60W is a 60W power-over-Ethernet adapter engineered to deliver centralized power to UniFi network devices without requiring separate power supplies on individual units. Operating at 50VDC output with a maximum current of 1.2A, this single-port adapter is purpose-built for UniFi infrastructure deployments where you need reliable, consolidated power delivery in rack-mounted or distributed network installations.
The POE-50-60W supports 1 Gbps data throughput, meaning Ethernet throughput is not throttled — the power delivery is isolated from data signaling. This makes it suitable for deployments where you're mixing powered and unpowered UniFi devices on the same network segment.
Key Features
- 60W Power Budget: A 60W output ensures you can power multiple mid-range UniFi access points, switches, or gateways simultaneously without overloading the adapter or your UPS if one is present. Check your specific device requirements — smaller APs draw 15–25W, so you can often pair several devices through proper network design.
- 50VDC Output at 1.2A: Unlike standard 802.3af (48VDC, 15.4W) or 802.3at (48VDC, 30W) PoE standards, the POE-50-60W operates at 50VDC. This is Ubiquiti-proprietary and optimized for their device line. Verify each UniFi device you intend to power explicitly supports 50VDC input — mixing standards will cause failures.
- Single-Port Injection: One RJ-45 input from your network switch or PoE source; one RJ-45 output to your powered device. Simple point-to-point topology with no configuration required.
- 1 Gbps Data Passthrough: Gigabit Ethernet speed means no bandwidth penalty when injecting power. Suitable for devices that need both power and data on a single run.
- Compact Form Factor: Weighs 0.500 lb, allowing flexible placement in rack-mounted equipment cabinets, wall-mounted enclosures, or distributed network nodes without significant footprint or weight penalties.
- AC/DC Input: Accepts both AC mains (with internal rectification) and DC input, providing flexibility for deployment in datacenters (AC-powered), outdoor cabinets with battery backup (DC-powered), or mixed-infrastructure sites.
Integration & Compatibility
The POE-50-60W integrates into the Ubiquiti catalog as an accessory for UniFi network infrastructure. Before deployment, confirm that each device you intend to power is listed on Ubiquiti's compatibility matrix for 50VDC PoE injection. Common compatible devices include UniFi access points (AC, AX, and some legacy models), UniFi switches with PoE passthrough capability, and certain UniFi gateway/router models.
This adapter is NOT compatible with standard IEEE 802.3af/at/bt powered devices unless they explicitly support 50VDC input — mixing incompatible voltage will damage equipment. When planning a deployment, review your PoE power planning to ensure you're not attempting to power devices beyond their input voltage specification.
If you are integrating multiple UniFi devices, consider whether a PoE-capable switch with built-in 60W+ output per port might be more cost-effective and reduce cable clutter. The POE-50-60W is most economical when injecting power into remote single devices or supplementing a limited-power switch in a branch office.
Frequently Asked Questions
Q: Can I use the POE-50-60W to power non-Ubiquiti devices?
A: Only if those devices explicitly support 50VDC PoE input. The adapter's proprietary voltage is not compatible with standard 802.3af, 802.3at, or 802.3bt devices unless the manufacturer specifically designed them for Ubiquiti PoE. Always verify voltage compatibility in the device datasheet before connecting.
Q: What happens if I connect a POE-50-60W to a device that expects 802.3af (48VDC)?
A: The voltage differential (50V vs. 48V) is small, but the adapter is not rated for standard PoE devices, and the connection is not supported by Ubiquiti. Risk of device malfunction or damage is real. Do not attempt this — use the correct standard PoE adapter for non-Ubiquiti gear.
Q: Do I need a POE-50-60W if my UniFi switch already has PoE output?
A: Only if the switch's PoE output is exhausted or you need to inject power into a remote segment. If your UniFi switch already has enough PoE budget for all devices, the POE-50-60W is redundant. Calculate your total power draw first before purchasing additional adapters.
Q: Is the POE-50-60W suitable for outdoor deployments?
A: The adapter itself has no IP rating and is designed for indoor cabinet or wall-mounted use. If you need to power outdoor UniFi devices, house the POE-50-60W in a weatherproof enclosure or UPS battery box, and run the output cable in conduit. Do not expose the adapter directly to rain or extreme temperature swings.
Q: What is the warranty on the POE-50-60W?
A: Refer to the Ubiquiti limited hardware warranty documentation. Typical coverage is one year from purchase; extended warranty options may be available. Contact the distributor for your region's specific warranty terms.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The POE-50-60W (often searched as POE 50 60W) is a purposeful choice if you're locked into Ubiquiti infrastructure and running short of PoE budget on your primary switch. The 60W output and 50VDC / 1.2A specification make it adequate for injecting power into one or two mid-range UniFi access points or a small managed switch in a remote building. However, it is emphatically NOT a universal PoE solution — the 50VDC proprietary voltage is the critical limiting factor.
Technical Highlights:
- 60W Output, 50VDC / 1.2A: Sufficient for a pair of 25–30W UniFi APs or a single higher-draw gateway device. The 50VDC specification is non-negotiable for compatibility; this is not backward-compatible with standard 802.3af (48V) or 802.3at devices.
- 1 Gbps Data Passthrough: No bandwidth bottleneck on the powered device — gigabit speeds are preserved end-to-end. Useful when you need both power and data on a single cable run without penalty.
- AC/DC Input Flexibility: Dual-input design allows deployment in AC-powered datacenters or DC-powered outdoor battery cabinets without requiring separate hardware SKUs.
Deployment Considerations:
- Voltage Incompatibility Risk: The single biggest gotcha: do not attempt to power 802.3af or 802.3at devices with this adapter. The voltage mismatch will damage equipment. Always cross-reference your device list against Ubiquiti's compatibility matrix before ordering.
- Single-Device Injection Model: Unlike a PoE switch that distributes power across many ports, the POE-50-60W injects power into one powered device. If you need to power more than two devices, a UniFi switch with integrated PoE will be more cost-effective and reduce cabling complexity.
- No Environmental Rating: The adapter is indoor-rated only. Outdoor installations require weatherproof enclosure and conduit protection, adding cost and labor.
The POE-50-60W is the right fit for branch office deployments where a single remote AP or gateway needs power injection via a non-PoE uplink switch, or when you've exhausted the PoE ports on your primary UniFi switch and cannot justify a second switch upgrade. It is not a workaround for under-sized power budgeting — if your design is chronically short of PoE capacity, address the root cause by upsizing the switch rather than stacking multiple single-port injectors.
