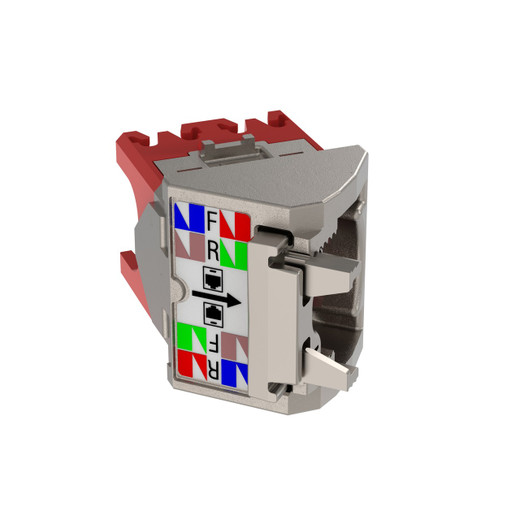

Panduit CJSLRCAPRD-X Wire Cap

Overview

The Panduit CJSLRCAPRD-X is a red, 45-degree angled wire cap designed specifically for shielded Cat 5e TG jacks. It provides a clean termination point, preventing strain on the individual wires within the cable and ensuring a professional finish in network installations. This accessory is crucial for maintaining cable integrity and simplifying the management of shielded cabling runs in structured cabling systems.

Compatibility

This wire cap is engineered for use with Panduit's Pan-Net® shielded Cat 5e TG jacks. It is designed to fit securely onto these specific jack modules, ensuring proper alignment and strain relief for the shielded cable termination. While it is designed for Cat 5e shielded applications, it may also offer compatibility with certain Cat 6 shielded jack modules, as indicated by some product descriptions, but verification against specific jack part numbers is recommended.

Installation Notes

Installation involves snapping the cap onto the rear of the compatible Panduit TG jack module after the shielded cable has been terminated. The 45-degree angle facilitates neat cable routing away from the jack, reducing the bend radius and potential for interference. The cap is designed for tool-less installation, simply pressing into place to secure the wires and the cable jacket.
