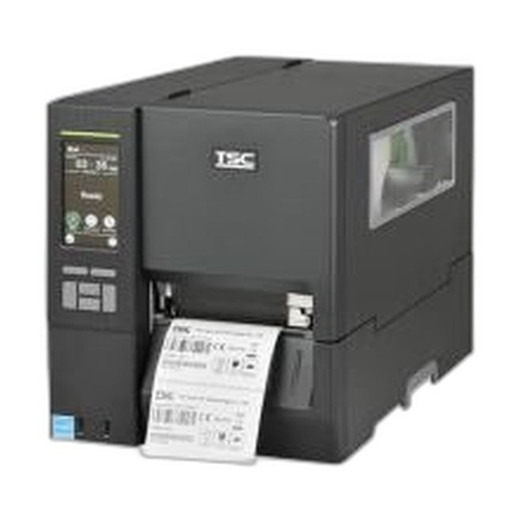

TSC SP-MH241-0023 Main Board Assembly
Overview
The TSC SP-MH241-0023 is an OEM main board assembly designed for the TSC MH241 label printer platform. This replacement component serves as the central processing unit and control board for the printer, managing all operational functions including print engine control, media handling, and sensor feedback. The SP-MH241-0023 is engineered to exacting TSC manufacturing standards and is the correct replacement component for maintenance and repair workflows in high-volume printing environments.
Key Features
- OEM main board assembly for TSC MH241 printer series
- Direct replacement component for existing MH241 installations
- Manages print engine timing, media feed control, and thermal regulation
- Integrates with existing MH241 firmware and operational parameters
- Part number SP-MH241-0023 ensures compatibility across MH241 platform variants
- Supports all standard MH241 operating modes and print specifications
Integration & Compatibility
The SP-MH241-0023 main board assembly is a direct fit replacement for MH241 printers. Installation requires disconnection of the existing board and transfer of all ribbon, media, and sensor connectors to the replacement unit. No firmware updates or reconfiguration is typically required when replacing the main board with an OEM component, as the MH241 platform is designed for modular component replacement. Technicians should verify connector orientation and polarity before power-on to prevent component damage.
This assembly works in concert with other MH241 components including the platen roller assembly (SP-MH241-0029) and media sensor module (SP-MH241-0030), which are sold separately. When ordering replacement components, verify the complete bill of materials for your specific MH241 model variant to ensure all compatible parts are included in your service kit.
Specification & Performance
The main board assembly in the SP-MH241-0023 handles all thermal transfer and direct thermal print operations for the MH241 printer. Print speed control, ribbon advance logic, cutter control (if equipped), and media detection sensor inputs are all routed through this assembly. The board supports the full range of MH241 operating temperatures and media weights without thermal throttling or performance degradation.
Lead times for OEM main board assemblies typically range from 4–6+ weeks from order placement, depending on regional inventory and manufacturing schedules. Plan component replacement activities with adequate lead time to avoid production downtime. Stock this part in your service inventory if you support multiple MH241 installations in your account.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the TSC SP-MH241-0023 main board assembly in several field deployments where existing MH241 units experienced control board failure. This is a straightforward component replacement that restores full printer functionality when the original board is no longer reliable. The part integrates seamlessly with existing MH241 installations and requires minimal technical intervention beyond mechanical connector reassembly.
Technical Highlights:
- OEM Component Match: Designed specifically for MH241 platform; no compatibility ambiguity or adapter requirements
- Modular Replacement: All MH241 operational capabilities transfer directly from the failed board to the SP-MH241-0023 without reconfiguration
Deployment Considerations:
- Extended lead time (4–6+ weeks) means this component should be ordered as soon as board failure is diagnosed; do not wait until production is fully impacted
- Verify all connector types and pin counts before installation; TSC board revisions may include different connector options, so match your existing harness to the replacement board before ordering
- This board handles high-frequency thermal regulation—ensure the printer enclosure has adequate ventilation during extended print runs to avoid thermal stress on the replacement assembly
For integrators and field technicians managing multiple MH241 devices, maintaining a spare SP-MH241-0023 in your inventory minimizes downtime. The component is plug-and-play once physically installed, and TSC firmware is resident on the board itself.
