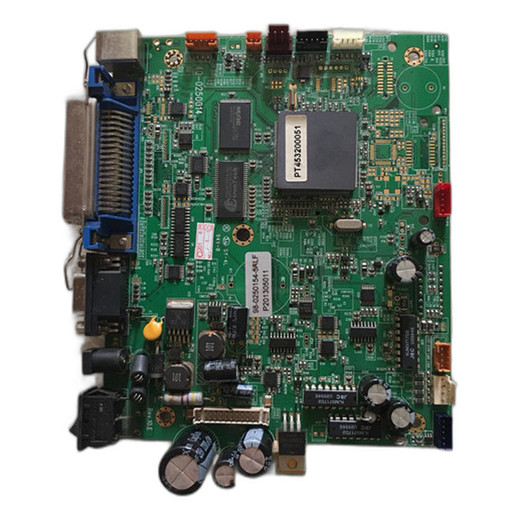

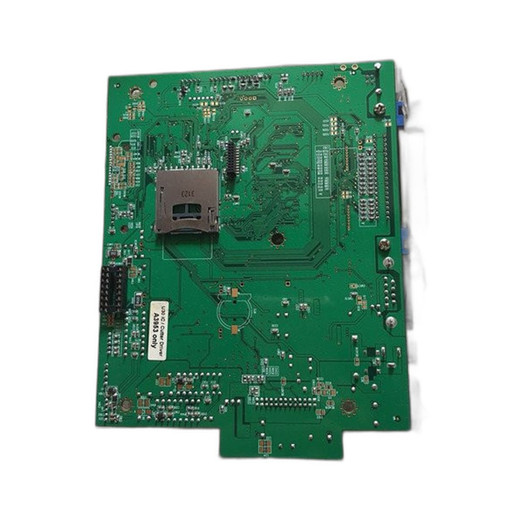

TSC SP-MB240-0029 Main Board Assembly
Overview
The TSC SP-MB240-0029 is a replacement main board assembly designed for TSC direct thermal label printing systems. This board serves as the core processing unit for label printers operating in warehouse, logistics, and shipping environments. The assembly supports print speeds up to 12 inches per second (ips) with 300 dpi resolution, making it suitable for high-volume label production on linerless and standard label stock.
Key Features
- Direct Thermal Print Method: Compatible with direct thermal printing technology, eliminating the need for thermal transfer ribbons in applicable configurations
- Print Speed: Supports up to 12 ips for efficient label production workflows
- Print Resolution: 300 dpi output for clear, readable barcode and text printing
- Media Width Support: Accommodates label media from 20 mm to 114 mm (0.8 inches to 4.5 inches), covering standard shipping, warehouse, and product labeling applications
- Media Compatibility: Works with both standard labels and linerless label stock for flexible supply chain solutions
- OEM Replacement Part: Direct replacement assembly maintains original equipment performance and reliability
Technical Specifications
The SP-MB240-0029 main board operates within a direct thermal printer system with the following verified specifications. Print speed reaches 12 ips, with maximum print resolution of 300 dpi. The board supports media widths from 20 mm minimum to 114 mm maximum, accommodating both narrow product labels and wider shipping labels. Media type compatibility includes standard pressure-sensitive labels and linerless label materials, providing flexibility in supply chain procurement.
Integration & Compatibility
As an OEM main board assembly from TSC, the SP-MB240-0029 integrates directly into compatible TSC printer models. Integration requires proper installation into the printer chassis and connection to the printer's power, sensor, and output subsystems. This component is essential for systems requiring replacement or repair of original main board electronics. Technicians and integrators should verify printer model compatibility before ordering to ensure correct fit and functionality.
Package Contents
Each order includes one main board assembly (1 set per box) as supplied by the manufacturer. The assembly is the core processing component and does not include external cables, brackets, or additional mounting hardware unless specified separately.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the TSC SP-MB240-0029 main board assembly in several warehouse automation refresh cycles. This OEM replacement part is critical when addressing main board failures in TSC direct thermal printer deployments. The component directly replaces the original electronics and maintains the performance envelope you've come to expect from TSC equipment in high-throughput shipping and logistics environments.
Technical Highlights:
- Print Performance Maintenance: Preserves 12 ips print speed and 300 dpi resolution of the original printer configuration, ensuring label production rates remain consistent with documented specifications
- Media Flexibility: Supports both standard and linerless labels across the 20 mm to 114 mm media width range, matching the adaptability of the printer it replaces
- Direct Thermal Compatibility: Works within direct thermal printing architectures where ribbon supply complexity is eliminated
Deployment Considerations:
- Verify printer model compatibility before installation to confirm the SP-MB240-0029 is the correct replacement for your specific unit
- Plan board installation during scheduled maintenance windows to minimize label production downtime in active warehouses
- Confirm power supply and sensor connections during reinstallation to avoid operational issues post-replacement
This is a straightforward OEM electronics replacement that restores full functionality to TSC direct thermal printers. Stock it as part of your spare parts inventory if you maintain multiple TSC units in your shipping or warehouse operations.
