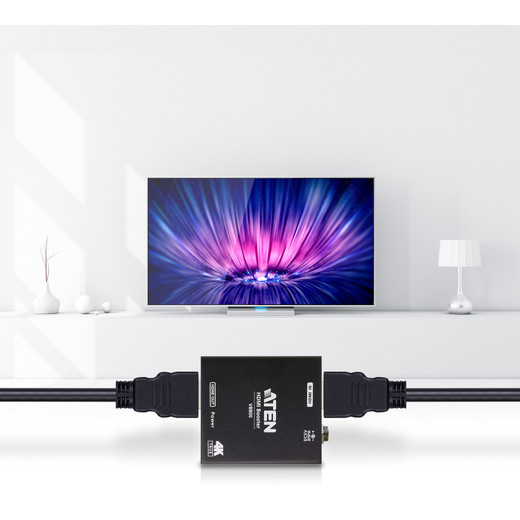

ATEN VB800 True 4K HDMI Booster
Overview
The ATEN VB800 is a compact HDMI booster designed to extend the reach of True 4K HDMI signals. It ensures signal integrity for resolutions up to 4096x2160 at a 60Hz refresh rate with 4:4:4 chroma subsampling, making it ideal for professional AV deployments where pristine video quality is critical. This device functions as an inline signal conditioner, requiring no external power source and minimal installation space. The VB800 is suited for point-to-point extension scenarios within a rack or between nearby equipment.
Compatibility
This booster is compatible with any HDMI Type A source and display combination that adheres to the HDMI 2.0 standard and HDCP 2.2 content protection protocols. It is designed for use with devices supporting 4096x2160@60Hz (4:4:4) resolution. It functions as a passive extension for HDMI Type A connections, not tied to specific display or source manufacturers but rather the underlying HDMI standard.
Installation Notes
The VB800 requires no external power supply, drawing minimal power from the HDMI port itself. It connects inline between an HDMI source and an HDMI display or receiver using standard HDMI Type A female connectors. Ensure secure connections on both ends to prevent signal degradation. Operating humidity should remain between 0-80% RH non-condensing. The unit supports a maximum distance of 5 meters at its highest specification (4096x2160@60Hz, 4:4:4).
