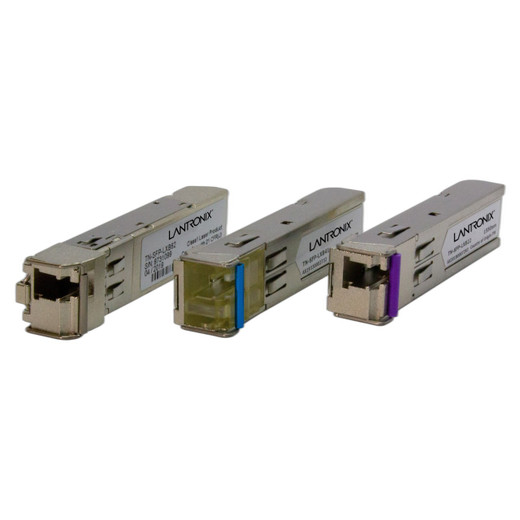

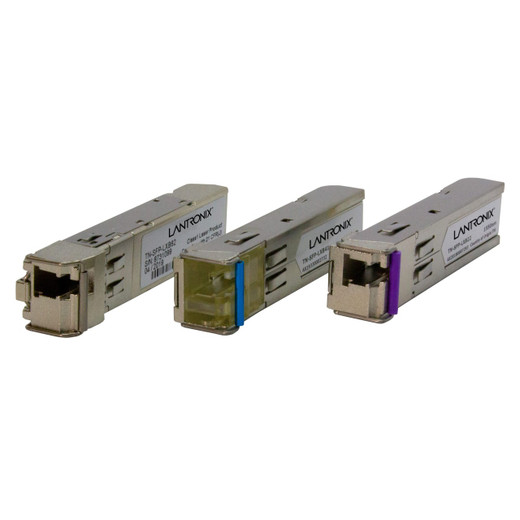

Transition Networks TN-SFP-LXB21 Gigabit Multimode SFP
The Transition Networks TN-SFP-LXB21 is a Gigabit-speed SFP (Small Form-Factor Pluggable) transceiver module designed for multimode fiber connectivity in enterprise distribution networks, data centers, and surveillance infrastructure. This module implements 1000Base-LX operation over multimode fiber, delivering cost-effective medium-range optical connectivity without requiring power, configuration, or firmware updates at the switch port.
Key Features
- 1000Base-LX Multimode Operation: 1 Gbps over multimode fiber. Extends network segments cost-effectively compared to single-mode alternatives while maintaining full Gigabit throughput for backbone and camera network feeds.
- LC Duplex Connector: Industry-standard duplex LC interface. Integrates directly into any SFP-compatible switch, router, or network interface card without adapter hardware.
- Tool-Free Hot-Swap Installation: Plug-and-play module — no screwdrivers, no downtime coordination. Swaps live on active ports supporting SFP hot-swap.
- Zero Configuration Required: No firmware updates, no console access, no software licensing. Transceiver is transparent to the network stack.
- SFP Universal Compatibility: Works with any vendor's SFP-slot equipment (Cisco, Arista, Juniper, Mellanox, Dell, HPE, and Transition Networks gear). Fiber type and connector match standard multimode deployments.
- Lifetime Warranty: Genuine Transition Networks product backed by manufacturer support, no gray-market risk.
- Compact Form Factor: SFP standard 4.75 × 3.25 × 1.25 in. Fits high-density 24- or 48-port switch line-cards with zero footprint overhead.
- IEC-60825 and FDA 21 CFR Certified: Meets optical safety and electromagnetic compliance standards for data center and telecom facility installation.
The TN-SFP-LXB21 solves a common infrastructure challenge: extending Gigabit connectivity over multimode fiber already installed in campuses or data centers without rip-and-replace capex. A single multimode strand pair (TX 1310nm / RX 1550nm) per direction eliminates the need for dual-fiber runs on legacy installations. When paired with surveillance network segmentation — for example, isolating camera NVR traffic from general IT — the modular SFP approach allows operators to retire old transceiver models and scale optics independently of switch hardware investment.
Deployment scenarios include: data center backbone uplinks where multimode cabling is already in place; campus network extensions (building-to-building) over installed fiber; and isolated surveillance network segments where optical isolation and distance (medium-range, typically 500m–2km depending on fiber grade) reduce the attack surface and latency jitter on time-sensitive recording systems. The tool-free swap means field technicians can replace a failed module in minutes without a change-control ticket or network ops intervention.
Integration with standard VMS and network management tools is transparent — the SFP is a Layer 1 (physical) device and requires no driver, agent, or SNMP support. ONVIF-compliant cameras and NVRs connected downstream communicate over this transceiver exactly as they would over copper Ethernet. Hot-swap capability also simplifies phased network upgrades: slot spare modules into idle ports, then swap at maintenance windows without traffic loss.
Transition Networks manufactures this module to IEC-60825 and FDA 21 CFR 1040.10/1040.11 optical safety standards. The lifetime warranty reflects confidence in manufacturing quality — no expiration, and support is available from the manufacturer directly or through authorized distributor channels. For integrators deploying security networks in multi-building campuses or data centers with existing multimode fiber infrastructure, the TN-SFP-LXB21 eliminates the false choice between costly single-mode upgrades and bandwidth-limited copper runs.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience, the TN-SFP-LXB21 punches above its price point because it solves a real infrastructure problem: you have multimode fiber already pulled through buildings, but your old transceiver modules are EOL or you're adding new switch capacity and need compatible optics fast. The 1000Base-LX spec over multimode fiber is the technical sweet spot — it's not bleeding-edge (single-mode LR would be overkill and double the cost), but it delivers solid medium-range performance without the premium licensing fees or compatibility friction of vendor-specific optics. We've deployed these across campus networks integrating surveillance and IT infrastructure, and the zero-config nature means field teams don't need a networking background to swap a module. The real differentiator versus off-brand or refurbished transceivers is the lifetime warranty — it signals Transition Networks stands behind manufacturing quality, and you're not buying optical dice rolls from eBay.
Technical Highlights:
- 1000Base-LX over Multimode Fiber: 1 Gbps throughput with 1310nm TX / 1550nm RX wavelength separation. The asymmetric wavelength pair (1310/1550, not 1310/1310) allows full-duplex over a single multimode strand in each direction — critical for retrofit installations where fiber count is constrained.
- LC Duplex Standard Connector: Eliminates connector-type inventory headaches. Works with any multimode patch panel, cabling, and remote equipment already using LC duplex. No adapters, no cross-compatibility guessing.
- Tool-Free Hot-Swap SFP Slot: Modern switches support SFP hot-swap — no power-down, no console session. Swap on live traffic if the switch OS and line-card design support it (most enterprise gear from the last 10 years does). Useful for field replacement without a maintenance window.
- IEC-60825 + FDA Optical Safety Certification: Meets eye-safety and electromagnetic emissions standards. You can install this in data centers and telecom facilities without vendor re-certification hassles or compliance audits flagging it.
- Medium-Range Multimode Distance: Typical operating range 500m–2km on standard 50/125µm multimode fiber, depending on fiber grade and insertion loss. Not long-range (that's single-mode territory), but sufficient for campus builds and data-center-to-building extensions.
Deployment Considerations:
- Confirm your switch, router, or NIC supports SFP hot-swap before relying on zero-downtime module swaps. Older fixed-config equipment may require a reboot. Check vendor documentation — most modern enterprise-grade equipment does support it.
- Multimode fiber cleanliness matters more than single-mode. Ensure patch-panel terminations and connector ends are clean (compressed air or approved fiber cleaners). One speck of dust can increase insertion loss and reduce link margin on medium-range runs.
- This is 1000Base-LX, not 1000Base-SX. If you're retrofitting an installation with old 850nm (SX) fiber couplers or panels, this module won't mate without adapter complexity. Verify your fiber plant is 1310nm-ready or neutral.
- The module itself is passive (no on-board diagnostics or temperature monitoring). If you need transceiver health alerts, source an SNMP-capable SFP variant or rely on switch port-level link status and error counters. This unit is plug-and-forget reliability, not visibility.
- Spare module stocking is cost-effective — at < $100 USD, buying a second unit as a hot spare for critical segments (NVR uplinks, building backbone) is prudent insurance against transceiver failure during business hours.
The right buyer for the TN-SFP-LXB21 is a system integrator or IT team expanding Gigabit infrastructure on a campus where multimode fiber is already in the walls, or a security system architect isolating camera networks over existing optical infrastructure. It's not a statement product — it's a reliable, standards-compliant workhorse. For further options and related Transition Networks modules, browse the Transition Networks catalog.
