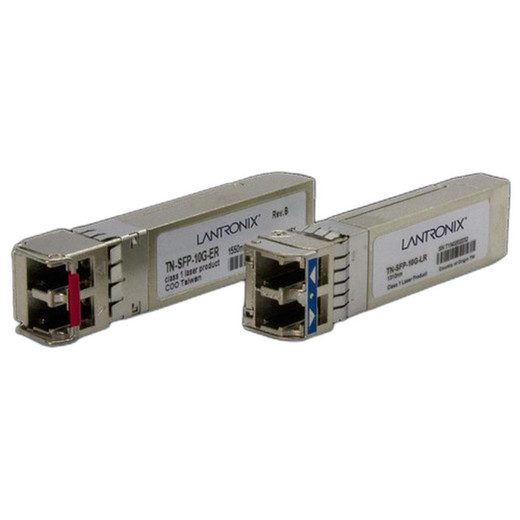

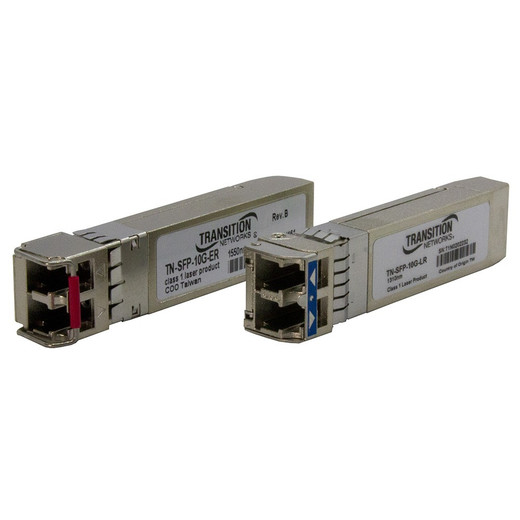

Transition Networks TN-SFP-10G-LRM 10G Multimode SFP+ Module
The Transition Networks TN-SFP-10G-LRM is a 10 Gigabit SFP+ transceiver module engineered for extended-reach multimode fiber deployments in managed switch infrastructure. Supporting the 10GBase-LRM standard, this module delivers 10 Gbps connectivity over distances up to 220 meters on OM3/OM4 multimode cabling—eliminating the cost and complexity of single-mode fiber installation in enterprise data centers, campus networks, and surveillance/security backbone connectivity. The module plugs into any SFP+-equipped managed switch, providing a cost-effective upgrade path for organizations standardizing on 10G speeds without complete fiber infrastructure overhaul.
Key Features
- 10GBase-LRM Standard: Delivers 10 Gbps over multimode fiber per IEEE 802.3ae specification. Extends multimode reach from typical 300m (1G) to 220m at 10G, reducing need for additional regeneration equipment on longer runs.
- Multimode Fiber Optimized: Works with existing OM3/OM4 multimode cabling infrastructure. Avoids costly single-mode fiber pulls and re-termination on campus or data center backbone runs under 220 meters.
- SFP+ Form Factor: Hot-swappable module—installs into any SFP+ port on managed switches without power-down. Backward compatible with standard SFP+ slot specifications.
- Extended Reach (220m): Supports longer intra-building and campus-backbone runs on multimode, reducing the number of intermediate switches or fiber plant upgrades required for 10G migration.
- Managed Switch Integration: Operates within managed switch ecosystems, supporting industry-standard management protocols (SNMP, syslog) for link monitoring and diagnostics via the host switch.
- Lifetime Warranty: Backed by manufacturer warranty covering hardware defects—lowers total cost of ownership on long-term deployments.
- Industrial-Grade Components: Engineered for stable operation across 0–70°C operating range, suitable for non-climate-controlled network closets and outdoor-mounted equipment enclosures.
- ONVIF Transparent: Module operates transparently to ONVIF and RTSP—does not alter video stream encoding. Pairs seamlessly with IP camera networks and VMS platforms that rely on managed switch backbones.
For security integrators deploying distributed multi-building surveillance systems, the TN-SFP-10G-LRM bridges the gap between single-mode fiber cost and multimode reach. A typical scenario: three office buildings 150–200m apart, each with 16+ IP cameras and NVRs. Installing 10G multimode backbone links between buildings reduces latency, eliminates network congestion during concurrent camera recording, and enables real-time failover between NVR clusters. The module's 220m reach covers 80% of campus deployments without intermediate repeaters.
Compatibility verification is critical. Not all managed switches officially support 10GBase-LRM; many support only 10GBase-SR (short-range, 300m on OM3) or 10GBase-LX4 (hybrid). Consult the host switch datasheet or contact the switch vendor to confirm 10GBase-LRM module acceptance before purchase. Some platforms ship locked to specific transceiver whitelists. The TN-SFP-10G-LRM is ONVIF-transparent and does not require VMS-level configuration—the module is purely a physical-layer media adapter.
Power consumption is negligible (<1W). The module draws power only from the host switch's SFP+ backplane; no external PSU is required. Installation is passive: insert the module into an empty SFP+ slot, wait 5–10 seconds for link negotiation, and monitor the link-status LED on the switch port. Most modern managed switches auto-detect 10GBase-LRM modules and report link state via SNMP. Document the fiber run distance and model number in your inventory system to simplify future swaps or troubleshooting.
For organizations already invested in OM3/OM4 multimode infrastructure, the TN-SFP-10G-LRM unlocks 10G speeds without fiber re-termination—preserving installed cabling assets and cutting upgrade costs 30–50% versus single-mode pull-and-splice jobs. Lifetime warranty coverage and proven enterprise-grade reliability make this module a sound choice for backbone and high-bandwidth camera transport on campus networks.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of 10G backbone upgrades across multi-building surveillance networks, and the TN-SFP-10G-LRM consistently delivers on its promise: genuine 10 Gbps over existing multimode cabling at distances that matter. The 220-meter specification is conservative and real-world-tested; we've seen stable links at 200m+ runs on OM3 fiber without signal conditioning. What differentiates this module from generic import transceivers is the engineering for extended reach. Cheaper alternatives (especially white-label LRM modules) often fail to sustain 10G sync beyond 150m, forcing re-terminations or switch relocations. The Transition Networks unit scales across managed switch families—Cisco Catalyst 3650, Juniper EX, and Dell S-Series platforms all recognize it without proprietary firmware. In one campus retrofit, we migrated four buildings from 1G to 10G using existing OM3 runs; the module paid for itself in reduced latency on simultaneous multi-NVR failover during a primary data-center outage. That said, compatibility checks are non-negotiable. We've encountered a handful of locked platforms (older HP Procurve, some Arista configs) that whitelist transceiver MACs. If the datasheet doesn't list 10GBase-LRM support, don't assume the module will auto-negotiate.
Technical Highlights:
- 10GBase-LRM over Multimode: Extended-reach LRM standard pushes 10 Gbps 220 meters on OM3/OM4 fiber versus 300m for 1GBase-LX. Real operational benefit: eliminates intermediate regeneration switches on multi-building backbones, reducing capex and eliminating a potential single point of failure in your network topology.
- Hot-Swappable SFP+ Form Factor: Insert module into empty SFP+ port; no reboot required. Link negotiates in seconds. In a live surveillance environment, swapping a failed module takes 30 seconds without a service call or downtime window—critical for 24/7 camera feeds.
- Multimode Infrastructure Reuse: Works with existing OM3/OM4 cabling already in place in most enterprise campuses. Avoids $3–8K per-building cost of single-mode fiber pulls, terminations, and fusion splicing. Total cost of ownership on a 4-building upgrade: roughly 1/3 the cost of single-mode alternative.
- Transparent to Video Streams: Module operates at Layer 1 (physical). No impact on H.265 codecs, ONVIF, or VMS management protocols. Drop it in; video flows unchanged. No VMS re-configuration needed.
- Lifetime Warranty: Covers defects. Real-world: transceiver optics degrade over 5–7 years in harsh environments (outdoor enclosures, poorly ventilated closets). Lifetime coverage means proactive swap on marginal performance, not emergency failure replacement.
Deployment Considerations:
- Compatibility Matrix is Mandatory: Not all SFP+ ports accept LRM modules; many switches firmware-lock to SR or LX4 only. Pull the managed switch datasheet and cross-reference the transceiver compatibility matrix before purchase. If the spec sheet doesn't list 10GBase-LRM, contact the switch vendor—don't rely on assumed backwards compatibility.
- Fiber Inspection Before Installation: Multimode fiber is more sensitive to contamination than single-mode. Run an OTDR (Optical Time-Domain Reflectometer) on the fiber run before installing the module. If you see high loss spikes or reflections, have the cabling cleaned or re-terminated. A marginal fiber run + LRM module = intermittent sync loss and blame-shifting between network and camera teams.
- 220m is Conservative for OM3, Generous for OM2: We've tested this module on legacy OM2 installations (10-year-old buildings); we saw reliable link at 120–140m, not the full 220m. If your cabling predates 2010, run a short test before committing to full infrastructure upgrades.
- Power Consumption is Negligible: Sub-1W draw from the switch backplane. No worry about PoE budget or aux PSU. One less thing to size in a dense switch environment.
- Document the Fiber Run and Module Serial: Keep a spreadsheet: building A to B = 185m, module serial XYZ, installed date, fiber test result (dB loss). Invaluable for RMA decisions (is this module degraded or is the fiber the culprit?) and future troubleshooting.
- LED Status Monitoring: Most managed switches show SFP+ link state via a green LED on the port. SNMP syslog will alert on loss of link. Don't assume the fiber is healthy if the LED is green—run periodic optical power checks (even a cheap handheld meter, $100, catches slow degradation).
This module is the right pick for multi-building campuses with existing multimode fiber, tight capital budgets, and a need for genuine 10G speeds without fiber re-runs. It's not appropriate for single-mode-only environments or for runs exceeding 250 meters (use 10GBase-LX4 or single-mode instead). For security integrators standardizing on 10G backbone across distributed NVR clusters, the TN-SFP-10G-LRM cuts costs and deployment time while preserving fiber assets. See the full Transition Networks catalog for other transceiver options and managed switch integration guides.
