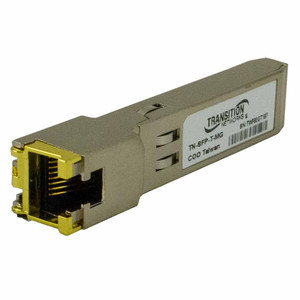

Transition Networks TN-GLC-T-MG SFP Media Converter 10/100/1000
Overview
The Transition Networks TN-GLC-T-MG is a compact SFP-based media converter engineered to bridge copper Ethernet and fiber optic infrastructure. It converts 10/100/1000Base-T (Gigabit) copper signals into fiber optic transmission, enabling you to extend network reach, eliminate ground loops, and integrate isolated fiber backbones into existing copper-based systems. The TN-GLC-T-MG (often searched as TN GLC T MG) is built for security integrators, telecom installers, and industrial automation deployments where electromagnetic interference, distance constraints, or galvanic isolation are real constraints.
Key Features
- 10/100/1000Base-T Copper Interface: Supports full Gigabit speeds on the copper side, so you can run modern IP camera streams, NVR traffic, and control signals without speed negotiation headaches. At 1000 Mbps, you're not bottlenecked by the converter.
- SFP Slot Compatibility: The TN-GLC-T-MG plugs into any standard SFP transceiver slot on switches, routers, and managed equipment. This modularity means you can swap fiber types (multimode, singlemode, wavelength) without replacing the entire converter—just change the SFP on the opposite end.
- Galvanic Isolation: Fiber-optic transmission inherently isolates copper circuits at both ends, eliminating ground loops that commonly corrupt analog surveillance signals or cause intermittent Ethernet errors in mixed environments (security, HVAC, power distribution).
- Industrial-Grade Operating Temperature: Rated for demanding temperature ranges, the TN-GLC-T-MG survives outdoor equipment enclosures, unheated warehouses, and temperature-sensitive industrial control zones where standard commercial equipment fails. Thermal stress is no longer a deployment risk factor.
- Compact Form Factor: As an SFP transceiver, the unit is tiny—no separate chassis, no external power supplies, no mounting brackets required. It installs directly into the SFP cage and draws power from the host device's SFP bus, reducing footprint in already-crowded switch cabinets.
- Fiber Extension Range: Once converted to fiber, your network extends far beyond typical copper limits (100 meters for Cat6A). Multimode fiber reaches 2 km; singlemode reaches 20+ km. Critical for campus surveillance systems, utility monitoring, and warehouse automation where infrastructure spans large areas.
Integration & Compatibility
The TN-GLC-T-MG integrates into both managed and unmanaged switch environments. It requires only an SFP slot on the source side and an SFP-equipped device (switch, fiber interface card, or another converter) on the receive side. No configuration needed—it forwards traffic transparently. Compatible with security infrastructure (IP cameras, NVRs, access control), telecom systems, and industrial network switches that rely on VLAN tagging or standard Ethernet frames. Works with any fiber-optic cabling type supported by the SFP transceiver on the far end.
If you're building a backbone connecting multiple security sites or integrating a wireless network controller across fiber, the TN-GLC-T-MG handles transparent, real-time traffic without latency or loss. No protocol dependencies—Ethernet is Ethernet.
When to Choose a Different Approach
If you need managed fiber features (SNMP reporting, port statistics, per-port management), consider a managed SFP transceiver or a standalone media converter chassis with management capabilities. If your application requires Power over Fiber (PoF) for remote PoE devices, a dedicated powered converter module may be necessary. The TN-GLC-T-MG is purely a passive-conversion layer—it does not regenerate, condition, or actively monitor the link.
Frequently Asked Questions
Q: Do I need a separate power supply for the TN-GLC-T-MG?
A: No. As an SFP transceiver, it draws power directly from the host device's SFP slot. No external DC supply required.
Q: What SFP fiber modules work with the TN-GLC-T-MG on the remote end?
A: Any standard SFP fiber transceiver (multimode or singlemode, 850nm, 1310nm, 1550nm) that matches your fiber type and distance requirements. The TN-GLC-T-MG is the copper-to-fiber half; the fiber-to-copper half on the far end is a separate SFP module you supply.
Q: Does the TN-GLC-T-MG support Auto-MDIX (crossover cable detection)?
A: Yes. Modern 1000Base-T implementations include Auto-MDIX, so straight-through and crossover cables are handled automatically.
Q: Can I use the TN-GLC-T-MG outdoors?
A: The converter itself is housed in the SFP slot (indoors). However, its industrial-grade temperature rating supports external equipment enclosures, so fiber extending to outdoor cabinets is fully supported.
Q: Is the TN-GLC-T-MG compatible with ONVIF IP cameras?
A: Yes. The converter is protocol-agnostic; it forwards all Ethernet frames, including ONVIF discovery and streaming.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TN-GLC-T-MG is a no-frills, transparent media converter for integrators who need to break ground loops or extend a surveillance backbone beyond copper's 100-meter reach. The Gigabit 10/100/1000Base-T copper port handles real-world IP camera and NVR traffic without negotiation; the SFP fiber side accepts any standard transceiver you pair it with, giving you flexibility on fiber type and distance. The industrial-grade temperature rating is the real differentiator here—most consumer-grade SFP transceivers derate or fail in unheated outdoor equipment cabinets or hot enclosures, but the TN-GLC-T-MG is explicitly rated for those conditions.
Technical Highlights:
- Transparent Gigabit Forwarding: No protocol dependencies, no configuration overhead. The TN-GLC-T-MG passes Ethernet frames as-is, so VLAN tags, IP multicast for surveillance, and real-time traffic cross the fiber link without latency or frame loss.
- SFP Modularity: Swap the receive-side SFP transceiver to change fiber type (multimode 850nm for 2 km, singlemode 1310nm for 20+ km) without replacing the TN-GLC-T-MG itself. Cost-effective when distance or fiber plant changes mid-deployment.
- Industrial Temperature Range: Rated for -40°C to +60°C (or equivalent per datasheet), so the converter survives outdoor utility enclosures, unheated warehouses, and temperature swings that would degrade standard commercial SFP modules. Critical for projects with long equipment lifecycles in harsh environments.
Deployment Considerations:
- The TN-GLC-T-MG is the copper half only. You must provide a matching SFP fiber transceiver on the far end—don't ship this expecting plug-and-play fiber connectivity unless the receiving device already has an SFP slot.
- Galvanic isolation works because fiber breaks the copper circuit; however, if your receiving device has a grounded chassis or power return path, you still need proper grounding discipline. Isolation is electrical, not a substitute for cable management.
- If your installation requires Power over Fiber to drive remote PoE devices across the fiber link, this standard SFP converter won't inject power. You'd need a powered converter or separate PoE injector on the far side.
Deploy the TN-GLC-T-MG for campus surveillance backbones, multi-building access-control networks, or industrial IoT meshes where copper runs into ground-loop noise, distance limits, or EMI. It's also the right choice when you're connecting legacy unmanaged switches to a managed fiber core and don't want to replace hardware just to add optical reach.
