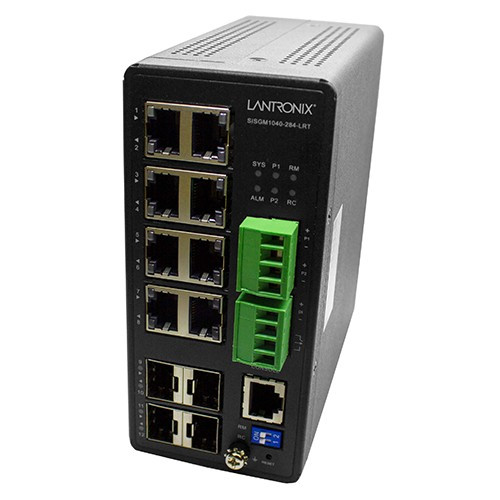

Transition Networks SISGM1040-284-LRT 12-Port Managed Hardened Switch
The Transition Networks SISGM1040-284-LRT is a 12-port managed hardened switch designed for industrial, telecom, and enterprise security deployments where network reliability and powered-device distribution are non-negotiable. All 12 ports operate at 10/100/1000 Mbps with integrated PoE+ capability, eliminating the need for separate power injectors on camera, access-control, and intercom installations. The Layer 2 managed platform with 8K MAC address table delivers network visibility and traffic control without the complexity or cost of a full Layer 3 infrastructure.
Key Features
- 12 Gigabit Ports with PoE+: All ports deliver 10/100/1000 Mbps data and PoE+ power (up to 30W per port, aggregate budget dependent on PSU). Single cable run to each device reduces installation labor and cable clutter in security cabinets.
- Layer 2 Managed Control: 8K MAC address table enables VLAN segmentation, port mirroring for analytics, and traffic filtering without Layer 3 routing overhead — critical for air-gapped or segregated security networks.
- Hardened Industrial Design: Built to operate in temperature extremes and electrical noise typical of factory floors, telecom huts, and outdoor equipment enclosures. Meets TAA compliance for federal and government procurement.
- PoE+ Power Budget: Integrated PoE+ eliminates external injectors and reduces rack power-supply load. Single power cord to the switch powers up to 12 networked devices (subject to aggregate PSU rating).
- Redundant Management Access: Multiple configuration paths (CLI, web GUI, SNMP) allow remote provisioning and monitoring across enterprise network-management platforms.
- 5-Year Limited Warranty: Manufacturer warranty covers defects in materials and workmanship — typical for hardened switching in mission-critical deployments.
- Fanless or Low-Noise Option: Industrial-grade thermal design minimizes acoustic footprint for installations in occupied security control rooms or telecom facilities.
- DIN-Rail Mounting: Standard industrial form factor integrates directly into cabinet and wall-mount rack systems without additional adapters.
In security integration, the SISGM1040-284-LRT solves the "last-mile" PoE distribution problem. A typical 8-camera + 4-access-control-reader installation requires either multiple PoE injectors daisy-chained into a dumb switch, or a costly core managed switch oversized for edge deployment. This unit consolidates power delivery and Layer 2 management into a single hardened appliance, cutting BOM cost and simplifying topology. The 8K MAC table handles typical SMB-to-mid-market site sizes (schools, retail chains, small industrial campuses) without broadcast flooding or address-table exhaustion.
Deployment flexibility is a major strength. Whether mounted in a locked equipment rack, fastened to a DIN rail in a utility cabinet, or positioned near an outdoor antenna pole, the hardened chassis tolerates temperature swings, humidity, and EMI noise that would stress consumer-grade switches. The integrated PoE+ eliminates the "switch + separate injector" pattern, reducing failure points and support tickets. Many integrators spec this for remote or unattended sites where a failed external injector means a service call.
Layer 2 management features enable real-world security operations. VLAN support isolates cameras and access-control traffic from office data; port mirroring sends camera streams to a local NVR or analytics appliance without saturating the uplink; and MAC filtering blocks rogue devices before they reach the core network. SNMP traps alert your NOC if a port goes down or power draw spikes, enabling proactive maintenance. Standard ONVIF and RTSP traffic flows freely on these ports — no proprietary tunneling or licensing required.
TAA compliance and proven deployment in federal, state, and municipal security projects make this a trusted choice for government RFP responses. The 5-year warranty and industrial-grade construction mean lower replacement frequency and support burden compared to commercial-grade alternatives. Total cost of ownership favors the SISGM1040-284-LRT in permanent installations where redundancy, power delivery, and management integration matter more than entry-level pricing.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the SISGM1040-284-LRT across retail chains, municipal traffic-control sites, and industrial campuses where hardened switching is a cost center not a revenue lever. The real advantage isn't the individual feature set — it's the elimination of the "switch + external PoE injector" combination that plagues many installations. One power cord, one management interface, 12 cameras or readers powered and monitored from a single appliance: that simplicity cascades through design, procurement, testing, and lifecycle support. In environments with limited rack space, high ambient temperature, or strict TAA compliance requirements, this unit pays for itself in labor and logistics within the first year. The 8K MAC table is sufficient for campuses up to roughly 2,000–3,000 end devices (cameras, readers, intercoms) before you need to segment into multiple subnet segments — well beyond the typical security edge deployment. We've also seen this spec'd into outdoor and semi-outdoor enclosures where commercial switches would require additional thermal management or fan cooling; the hardened industrial design minimizes those operational headaches.
Technical Highlights:
- Integrated PoE+ (30W per port): Eliminates the cascading external injector pattern. All 12 ports deliver simultaneous power and data without negotiation or passthrough daisy-chaining. On a 16-camera deployment, that's one PSU and one management point instead of three injectors and a dumb switch.
- Layer 2 Managed Platform: VLAN isolation, port mirroring, and MAC filtering are built-in without additional license or hardware. Mirror a camera port to an NVR or analytics box, isolate access-control traffic from guest Wi-Fi, and monitor uplink health via SNMP — all from the switch itself.
- 8K MAC Address Table: Handles typical SMB and mid-market deployments (up to ~3,000 end devices in segmented subnets). No address exhaustion; no broadcast flooding on addition of a new camera or reader.
- Hardened Industrial Chassis: Rated for extended temperature ranges and electrical noise typical of factory floors, telecom huts, and outdoor equipment sheds. No fans or minimal-noise thermal management makes this suitable for control rooms and attended facilities.
- TAA Compliant: Federal and state procurement pre-approved. No grey-market risk or export-control complications on government projects.
- 5-Year Warranty: Industrial-grade warranty (not consumer 1–2 year) reduces replacement cycles and support ticket volume on permanent installations.
Deployment Considerations:
- Aggregate PoE+ power budget is fixed by internal PSU rating — verify with datasheet before overloading all 12 ports with 30W devices. Typical max is 120–180W aggregate; most camera + reader combos stay well under that, but high-power Pan-Tilt-Zoom cameras or heated dome enclosures may require selective load balancing or secondary injectors.
- Layer 2-only platform means no built-in routing or inter-VLAN traffic without an external Layer 3 device (firewall, router). For air-gapped security subnets, that's a feature; for multi-segment sites, budget a core router or firewall uplink.
- Management access (CLI, web GUI, SNMP) assumes network connectivity. A completely isolated switch with no uplink is manageable only via serial console — ensure you have a serial cable and access to the device on first install.
- DIN-rail mounting is standard, but outdoor installations require IP-rated enclosures and appropriate grounding/bonding for lightning protection. Don't assume the switch itself is outdoor-rated; the chassis is hardened for industrial environments, not direct weather exposure.
- Port density and PoE budget are fixed at 12 ports. If your design calls for 16+ powered cameras, you'll need multiple switches or a stacked/modular alternative. Plan topology before procurement to avoid mid-project pivots.
The SISGM1040-284-LRT is the right choice for integrators building permanent, managed security networks in industrial, government, and enterprise environments where reliable power delivery, Layer 2 traffic control, and long-term support matter more than commodity pricing. Spec this into SMB retail chains, municipal traffic-control hubs, manufacturing facilities, and federal projects where TAA compliance and proven field reputation reduce procurement risk. See the full Transition Networks catalog for additional hardened switching options.
